Wedge block, highest support height: 155mm
Article no.: 374905 155
Article code:
Product details

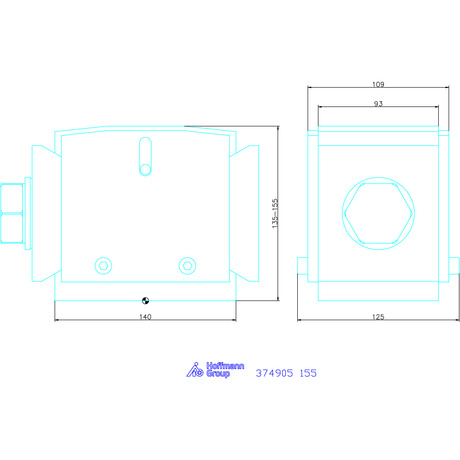

Technical Data
| Type | 6460 | |
| highest support height | 155 mm | |
| lowest support height | 135 mm | |
| Height adjustment per spindle rotation | 2 mm | |
| Load capacity | 175 kN | |
| Footprint length | 140 mm | |
| Footprint width | 125 mm | |
| Type of product | Wedge |
Identification & Classification
| Article number | 374905 155 | |
| EAN / GTIN | 4069515012126 | |
| Manufacturer number | 374905 155 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Deutschland, www.hoffmann-group.com |
Description
Version:
Very rigid design; spheroidal graphite cast iron and hardened steel. The ground wedge surfaces provide for precision and even height adjustment with an accuracy better than 0.1mm. Either the knurled screw or a hexagon socket wrench can be used for height adjustment. The double action results in a long stroke and precise vertical movement without lateral displacement.
Application:
Particularly for working with heavy cast or forged parts on large machine tools after marking-out.
Supplied with:
Interchangeable ball jack pad No. 375000.
