Wedge clamp, narrow version serrated, Thread M x length L: M12X40mm
Article no.: 370027 M12X40
Article code:
Product details

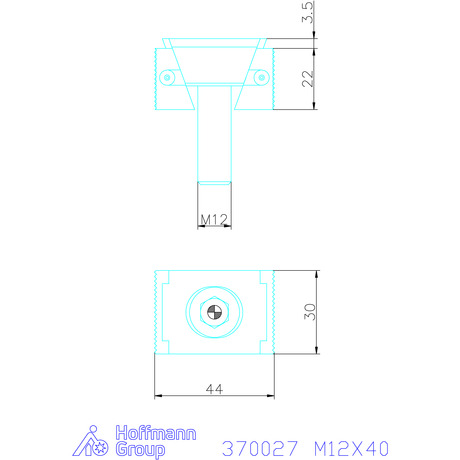

Technical Data
| Thread | M12 | |
| Length L | 40 mm | |
| A minimum | 44 mm | |
| A maximum | 49,5 mm | |
| Width B | 30 mm | |
| Height C | 22 mm | |
| Height E | 3,5 mm | |
| maximum clamping force | 30 kN | |
| Type of product | Side clamps |
Identification & Classification
| Article number | 370027 M12X40 | |
| EAN / GTIN | 4059245032792 | |
| Manufacturer/responsible person | Heinrich Kipp Werk GmbH & Co. KG, Heubergstraße 2, 72172 SULZ AM NECKAR, Deutschland, www.kippwerk.de |
Description
Application:
- Wedge surfaces produce high clamping forces.
- Wedge clamps can be used in tapped holes or T-slots.
- When the clamping screw is screwed in, the clamping segments press against the workpieces.
- A slot in the double wedge allows for movement and tolerance adjustment. Movement distance: M8 = ± 0.5 mm; M10 and M12 = ± 1.0 mm; M16 = ± 1.5 mm.
- Wedge clamps are suitable for multiple clamping.
Material:
Double wedge and clamping segments heat-treatable steel, hardened, black.
