BMT toolholder VARIA VXT, BMT / X dimension: 40-95
Article no.: 319848 40-95
Article code:
Product details

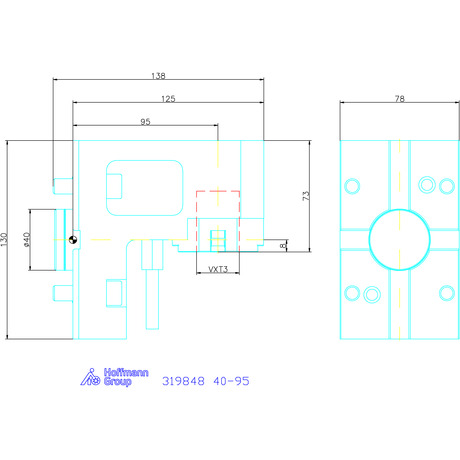

Technical Data
| Axial spacing L1 right | 70 mm | |
| Axial spacing L2 left | 62 mm | |
| l1 | 125 mm | |
| b1 | 76,8 mm | |
| suitable for arbor | VXT3 | |
| Type of product | Driven tool |
Identification & Classification
| Article number | 319848 40-95 | |
| EAN / GTIN | 4069739470856 | |
| Manufacturer/responsible person | EWS Weigele GmbH & Co. KG, Maybachstraße 1, 73066 UHINGEN, Deutschland, www.ews-tools.de |
Description
Version:
VXT − double cone flex system. Polygon torque resistance up 200 Nm.
Advantage:
- Optimised stability and dampening
- Tool change, flexibility and modularity.
- Highest precision and repeatability (+/- 0.002).
- Backward compatibility with VARIA VX
Application:
Quick-change system for static rotary applications.
