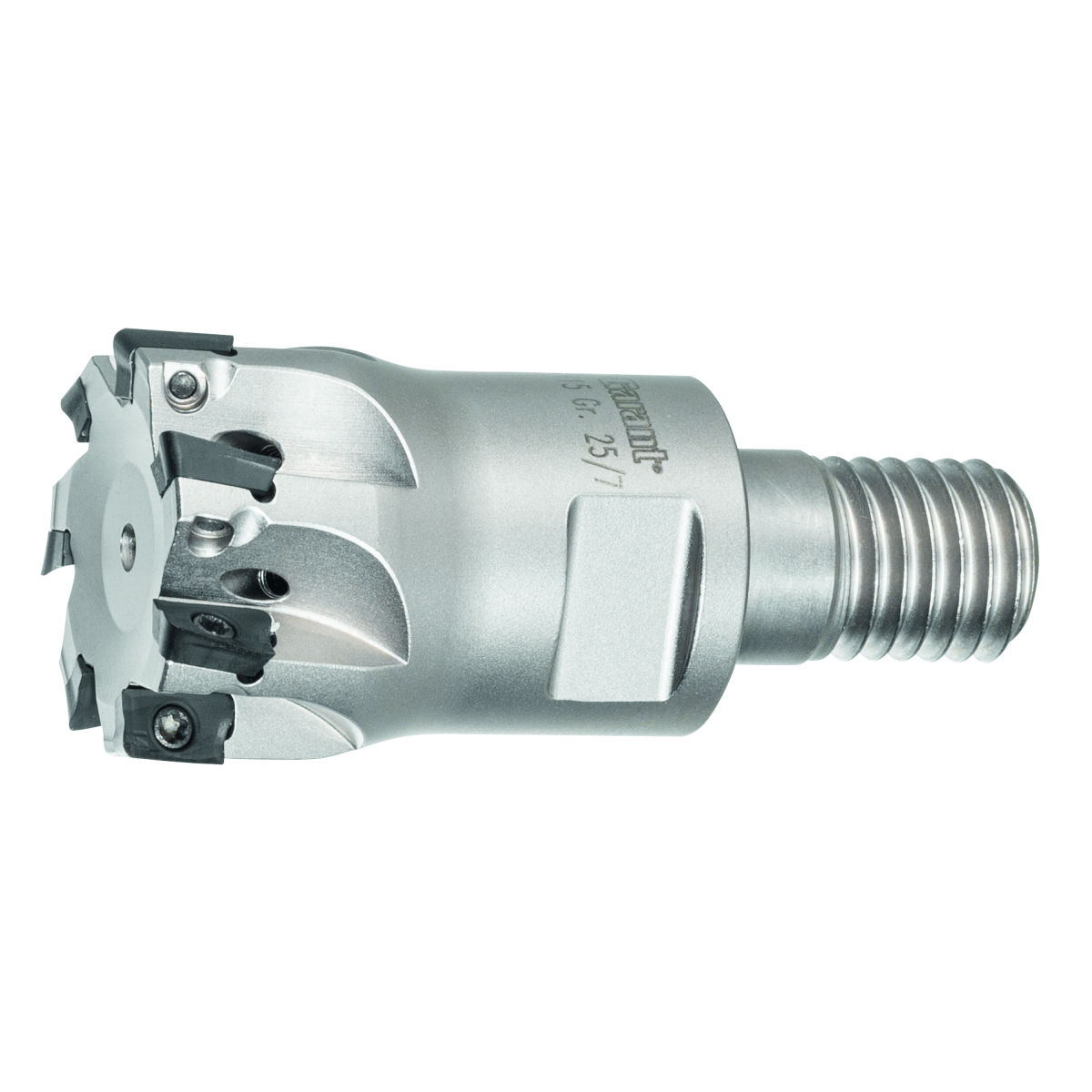

Softcut® 90° indexable face mill MTC with threaded shank 25/7 mm GARANT
Article no.: 215615 25/7
Article code:
- Setting angle κ: 90
- Milling application: Circular milling; Ramping; End milling
- Spacing of the cutters: unequal spacing
- Through-coolant: yes
- Machining strategy: MTC
Product details
Technical Data
| Series | Softcut® | |
| Cutting edge ⌀ DC | 25 mm | |
| Number of cutting edges Z | 7 | |
| Shank type | with threaded shank | |
| Setting angle κ | 90 degrees | |
| Milling application | Circular milling; Ramping; End milling | |
| Spacing of the cutters | unequal spacing | |
| Through-coolant | yes | |
| Machining strategy | MTC | |
| Tool exchange | PowerCard | |
| Overall length Ltot | 35 mm | |
| ⌀ D1 h6 | 12,5 mm | |
| ⌀ D2 | 20,7 mm | |
| Mounting thread M | M12 | |
| ⌀ D3 | 23 mm | |
| Circular interpolation milling ⌀ Dmin | 48 mm | |
| Circular interpolation milling ⌀ Dmax | 48 mm | |
| Circular interpolation milling ap | 0,9 mm | |
| Ramping angle αmax | 0,52 degrees | |
| Ramping length L for αmax | 21,85 mm | |
| suitable indexable insert | AP.. 0602.. | |
| Set of insert screws | 219827 (6IP; 0.45 Nm) | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 215615 25/7 | |
| EAN / GTIN | 4045197409973 | |
| Manufacturer number | 215615 25/7 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Deutschland, www.hoffmann-group.com |
Description
Version:
High precision indexable shoulder mill with irregular pitch for very smooth cutting, very high precision and very high metal removal rate. New generation of high performance indexable shoulder mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power.
Application:
For shoulder milling to large depths, also slotting. General use in all steels including stainless and acid-resistant steels.
Spare part:
Pack of insert screws No. 219827 (6IP; 0.45 Nm).
