Article no.: 133404 10-32
Through hole machine tap 10-32 HOLEX
Article no.: 133402 10-32
Article code:
- Thread type: UNF
- Flank angle: 60
- Tool material: HSS E
- Standard: DIN 374
- Tolerance class: 2B
Product details
Technical Data
| Thread size | 10-32 UNF | |
| Coating | uncoated | |
| Thread type | UNF | |
| Flank angle | 60 degrees | |
| Tool material | HSS E | |
| Standard | DIN 374 | |
| Tolerance class | 2B | |
| Taper lead form | B | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3×D for through holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0,794 mm | |
| Threads per inch | 32 | |
| Thread ⌀ | 4,83 mm | |

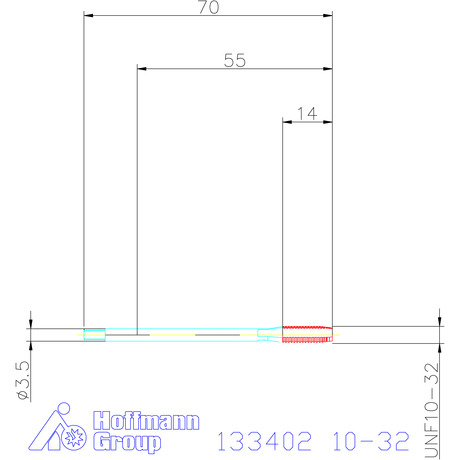

| Overall length L | 70 mm | |
| Shank ⌀ Ds | 3,5 mm | |
| Shank square □ | 2,7 mm | |
| Tapping hole ⌀ | 4,1 mm | |
| Type of threading tool | Machine tap for conventional machining | |
| Number of clamping slots | 3 | |
| Colour ring | without | |
| Number of cutting edges Z | 3 | |
| Thread depth | 14,49 mm | |
| Type of product | Tap |
Identification & Classification
| Article number | 133402 10-32 | |
| EAN / GTIN | 4045197594754 | |
| Manufacturer number | 133402 10-32 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Deutschland, www.hoffmann-group.com |
Application Table
N
13
P
15
P
15
Description
Version:
With spiral point.
Application:
For UNF uniform fine threads ASME − B1.1.
