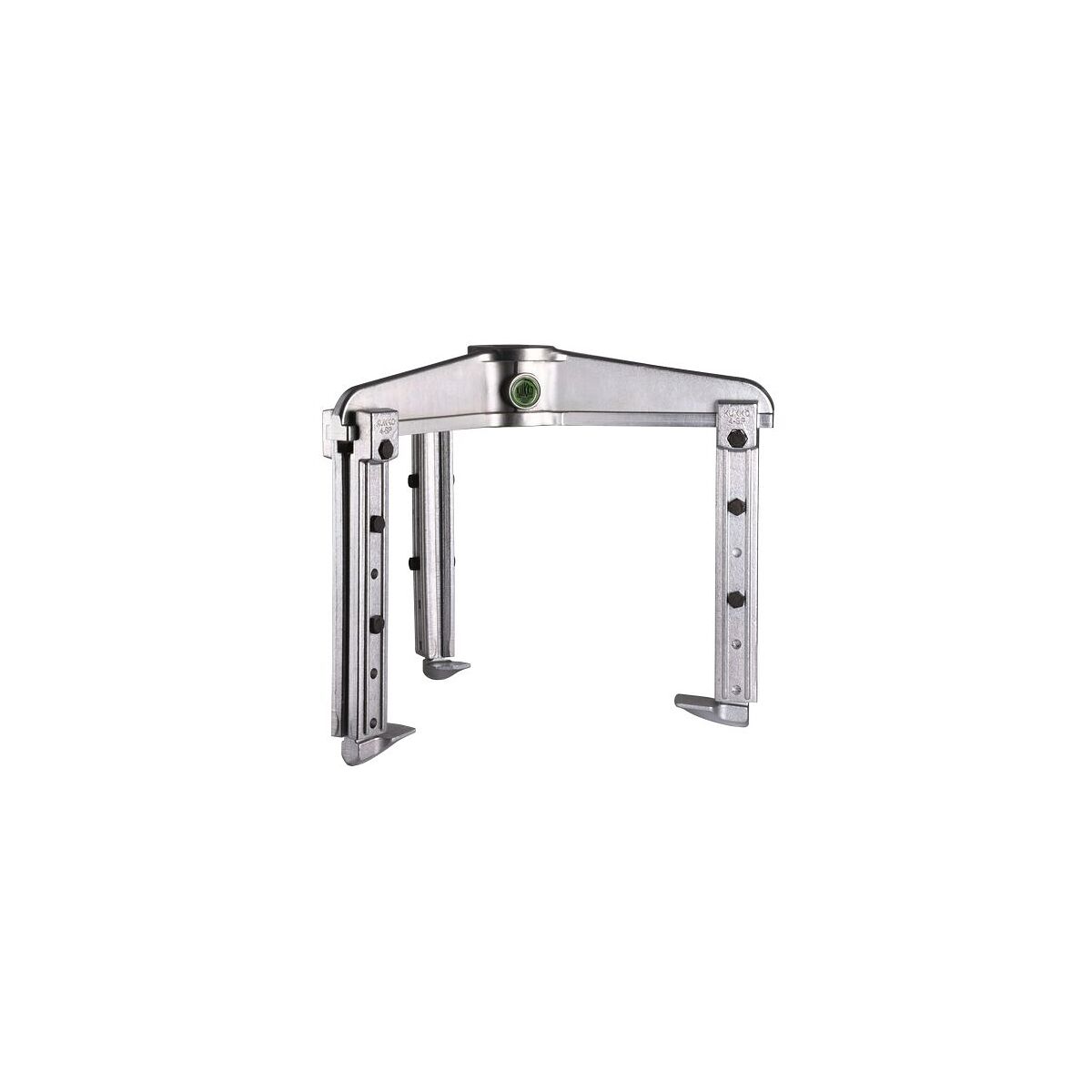

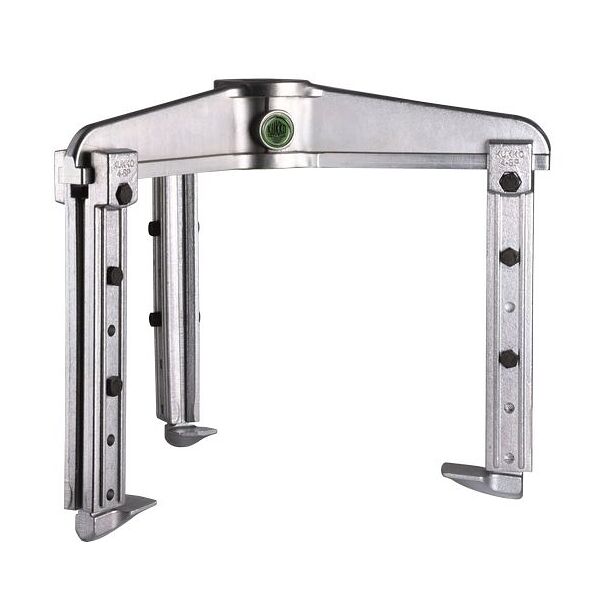

3-jaw puller with adjustable reach, up to 500 mm spread, up to 500 mm reach, without hydraulic hollow piston cylinder
Article no.: Y20-11-1
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | Y20-11-1 | |
| EAN / GTIN | 4021176711626 | |
| Manufacturer number | Y20-11-1 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Description:
- The 3-jaw pullers with adjustable reach of the Y20-11 series are used for pulling particularly large and stuck bearings, gears, discs, etc. in crafts, industry, and workshops. The extra-strong design is capable, thanks to parallel jaws, of safely and efficiently pulling components in any position and under full load. A hydraulic hollow piston cylinder of the YRH series is also required for use.
- Three-jaw design ensures an even load distribution and thus a particularly secure grip on the part being pulled.
- The pulling hooks can be moved on the crossbar, adjusted in length, and used as external and internal pullers in various pulling situations by turning them around.
Feature:
- Material: tool steel
- Span outside pull-off (max.) [inch]: 19 11/16
- Span outside pull-off (max.) [mm]: 500 mm
- Clamping depth of external pull-off A1 [mm]: 300 mm
- Clamping depth outside pull-off A1 [inch]: 11 13/16
- Clamping depth outside pull-off A2 [mm]: 500 mm
- Clamping depth outside pull-off A2 [inch]: 19 11/16
- Span inside pull-out (min.) [mm]: 280 mm
- Span inside pull-out (max.) [mm]: 600 mm
- Span inside pull-out (min.) [in.]: 11 1/32
- Span inside extension (max.) [in.]: 23 5/8
- Max. tensile force [kN]: 200 kN
- Max. tractive force [t]: 20 t
- Max. pulling force [US t. sh.]: 22.05
- Separation diameter (min. - max.) [mm]: 500 mm
- Span inside pull-out (min. - max.) [mm]: 280 mm - 600 mm
- Can be sold worldwide: Yes (REACH, RoHS, POP, PROP65, TSCA)
