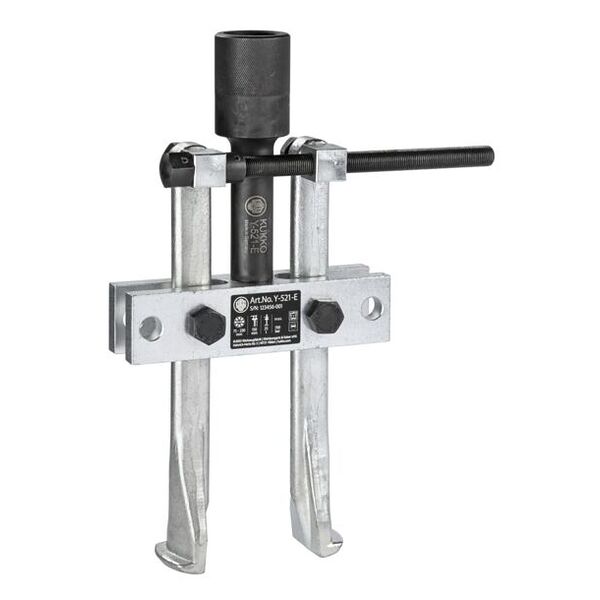

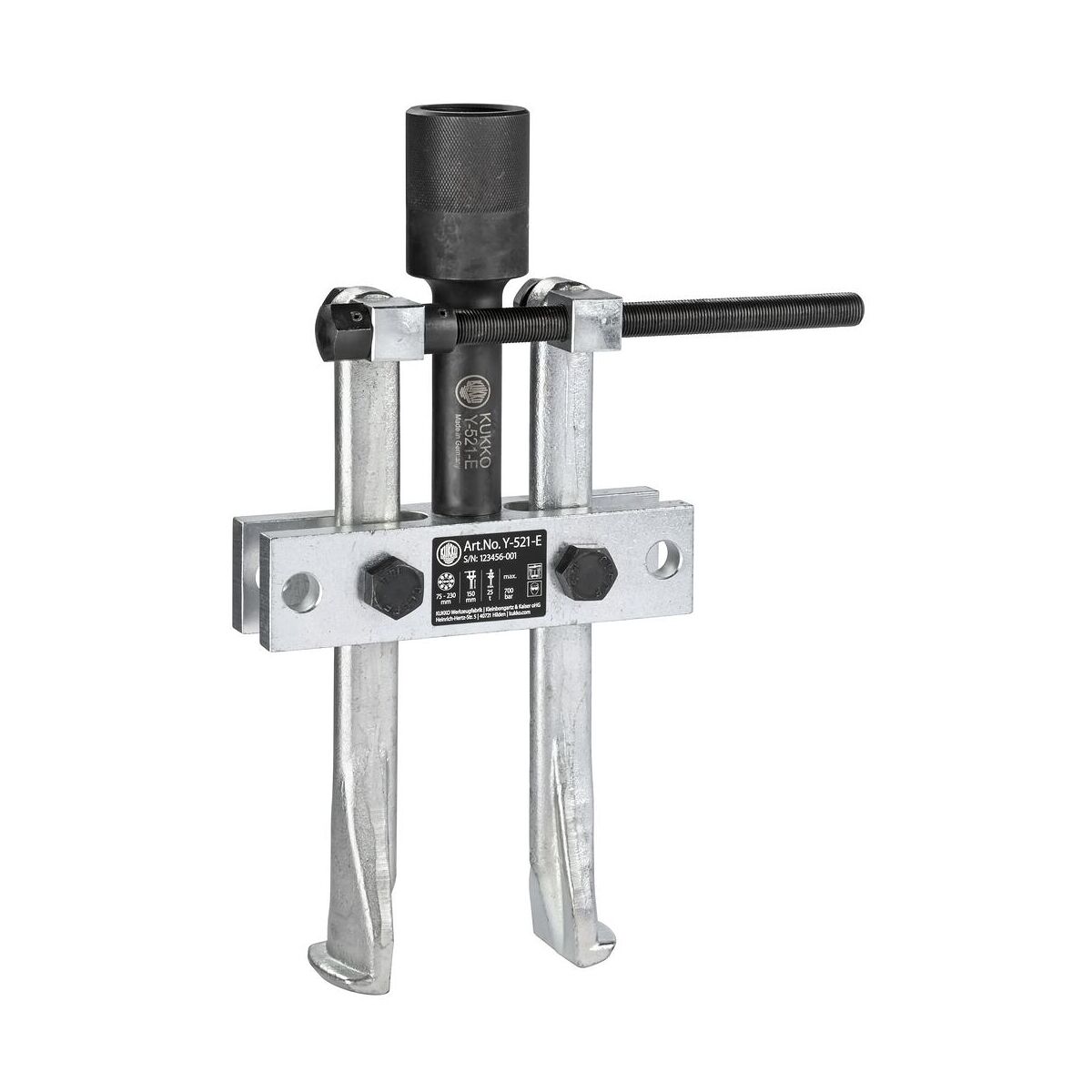

Internal extractor with insertion depth, max. 22 t tension force
Article no.: Y-321-E
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | Y-321-E | |
| EAN / GTIN | 4021176042836 | |
| Manufacturer number | Y-321-E | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Description:
- The internal extractors of the Y-21-E series are used for extracting particularly stubborn, internal bearings, bearing outer rings, and sockets in crafts, workshops, and industry. The hydraulic system enables the application of very high forces that cannot be achieved with mechanical tools. The internal extractors of the Y-21-E series are combined with the hydraulic pullers of the Y-180 series.
- The hydraulic puller Y-180 required in combination with the internal extractor allows for easy and controlled removal of particularly stubborn parts.
- Reducing workload guarantees maximum time savings
Feature:
- Material: tool steel
- Total width [mm]: 200 mm
- Total width [inch]: 7 7/8
- Total depth [mm]: 100 mm
- Total depth [inch]: 3 15/16
- Total height [mm]: 390 mm
- Total height [inch]: 15 3/8
- Hook base width (claw width J) [mm]: 55 mm
- Hook base width (claw width J) [inch]: 2 3/16
- Hook base depth usable (claw depth usable O) [mm]: 10 mm
- Hook root depth usable (claw depth usable O) [inch]: 3/8
- Total hook root depth (total claw depth H) [mm]: 30 mm
- Total hook root depth (total claw depth H) [inch]: 1 3/16
- Total thickness of claws (L+1mm) [mm]: (distance of claws to base): 10 mm
- Total thickness of claws (L+1mm) [inch]: (distance of claws to base): 3/8
- Span inside pull-out (min.) [mm]: 75 mm
- Span inside pull-out (max.) [mm]: 230 mm
- Span inside pull-out (min.) [in.]: 2 15/16
- Span inside extension (max.) [in.]: 9 1/16
- Max. tensile force [kN]: 220 kN
- Max. tractive force [t]: 22 t
- Max. pulling force [US t. sh.]: 24.25
- Spare parts available: No
- Mounting thread [mm]: 1 1/4 - 7″ UNC
- Span inside pull-out (min. - max.) [mm]: 75 mm - 230 mm
- Can be sold worldwide: Yes (REACH, RoHS, POP, PROP65, TSCA)
