simmill VX milling cutter insert, Whitworth thread, full profile, pitch/inch=11, from thread size G1″
Article no.: V06.5511.02.22 M X500
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | V06.5511.02.22 M X500 | |
| EAN / GTIN | 4069769300833 | |
| Manufacturer number | AVKQX500 | |
| L-Number | L23830 102256 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

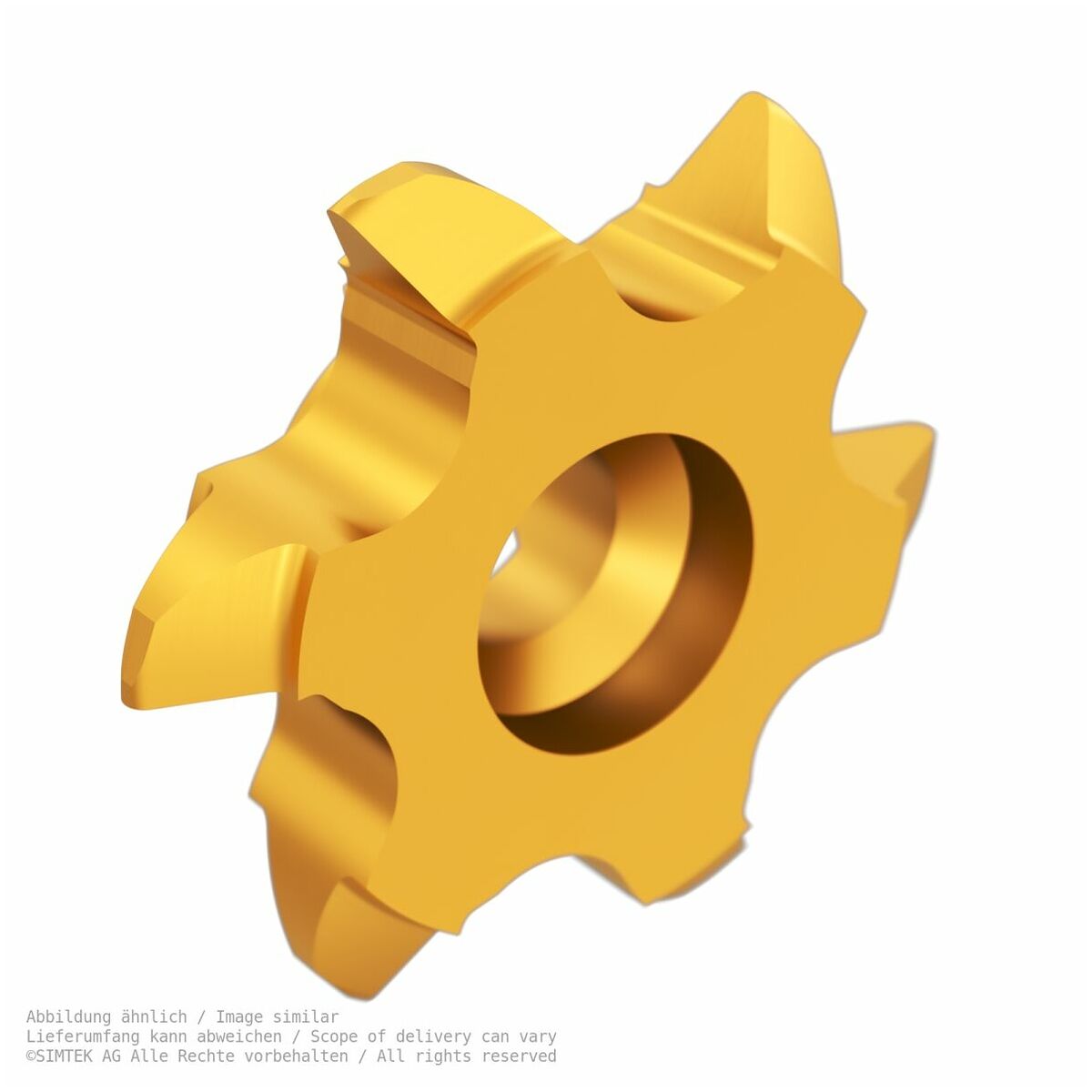

SIMTEK simmill VX milling insert
Whitworth thread, full profile
Pitch/inch = 11, from thread size G1″

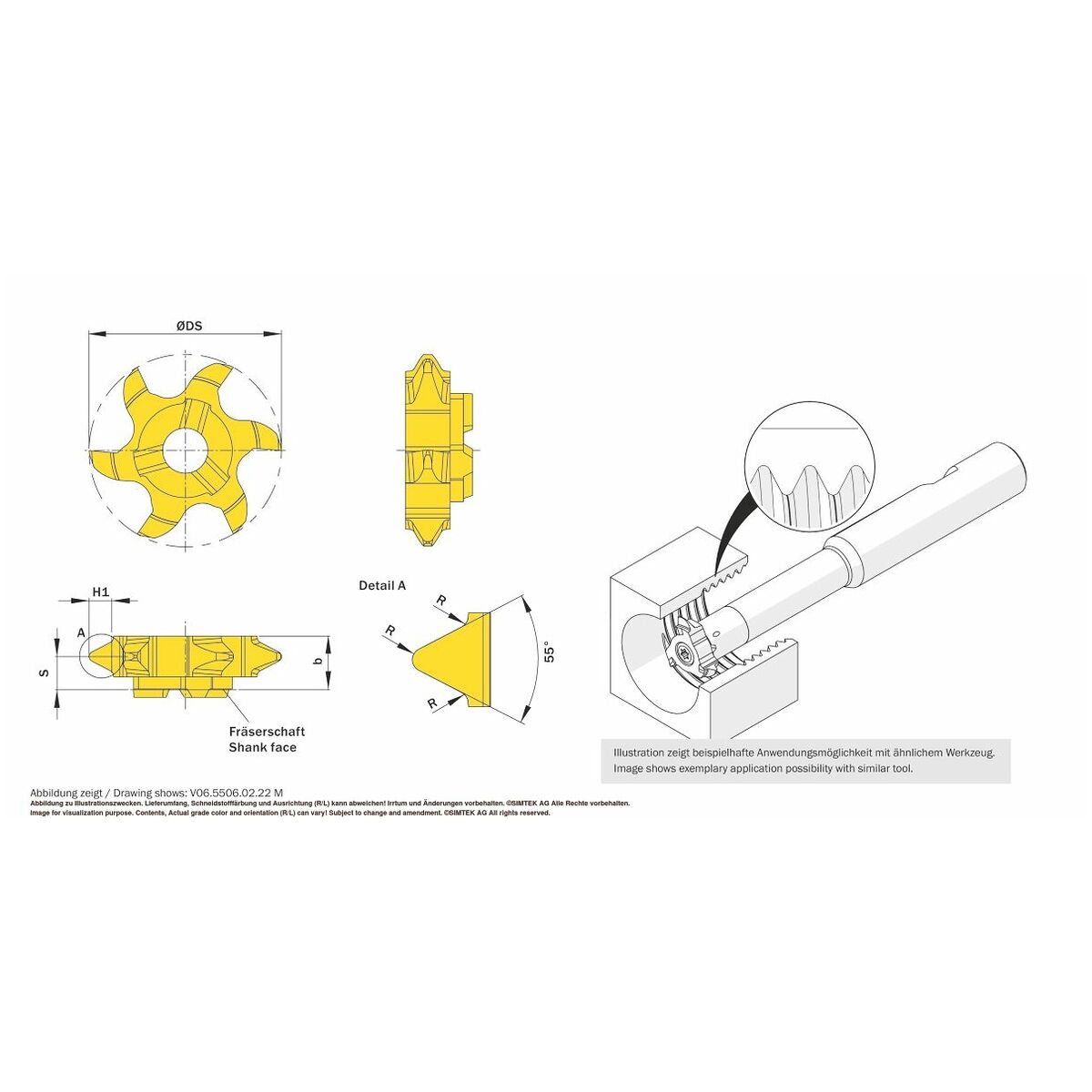

Technical parameters:
- From thread size = G1″
- Alternatively, from nominal diameter = 30.0 mm
- ØDS = 21.7 mm
- S = 4.8 mm
- R = 0.31 mm
- Gang/inch = 11
- H1 = 1.48 mm
- Pitch (from) = 2.310 mm
- b = 6.35 mm
- ZEFP = 6
