Carbide Milling Insert - SDMT060304E-K KW10
Article no.: TWE04920
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable insert for milling |
Identification & Classification
| Article number | TWE04920 | |
| EAN / GTIN | 4960664221073 | |
| Manufacturer number | TWE04920 | |
| L-Number | L22140 81 | |
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:
Carbide Milling Insert SDMT060304E-K KW10
Feature:

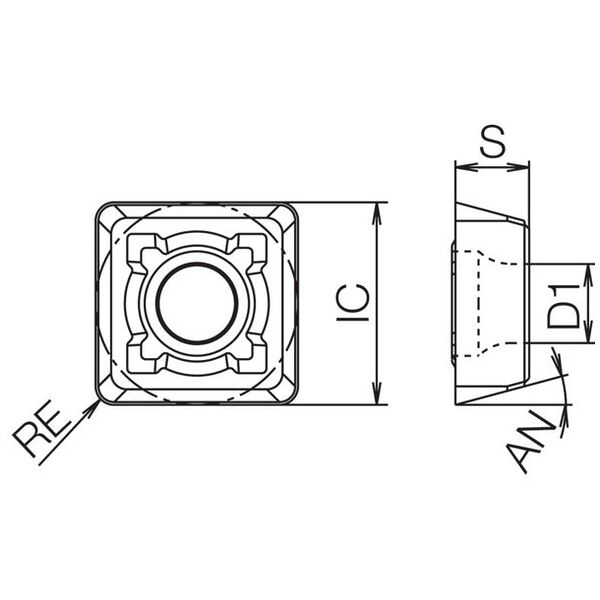

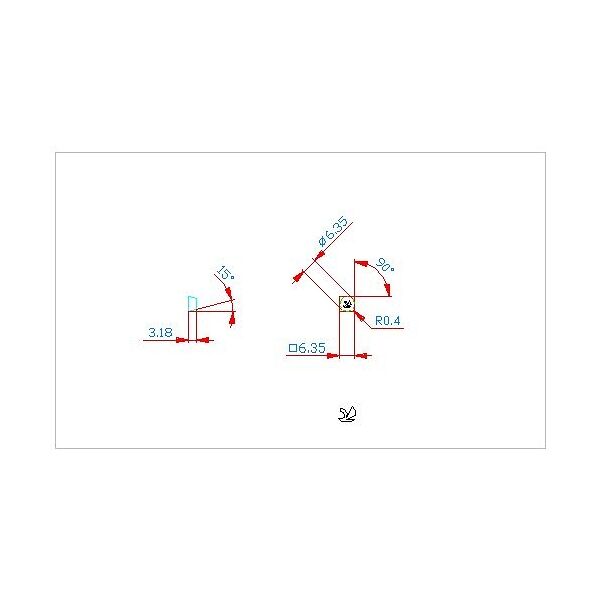

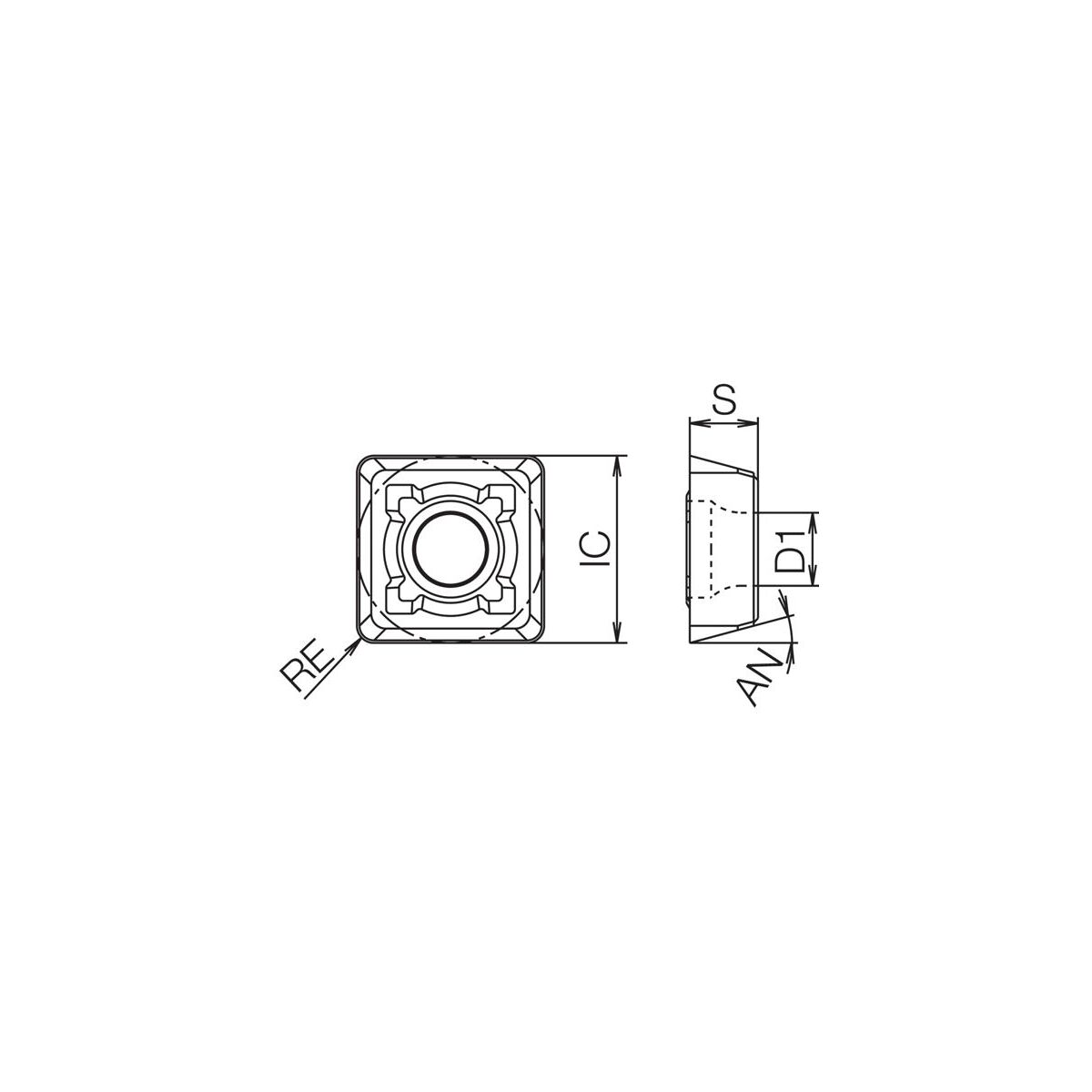

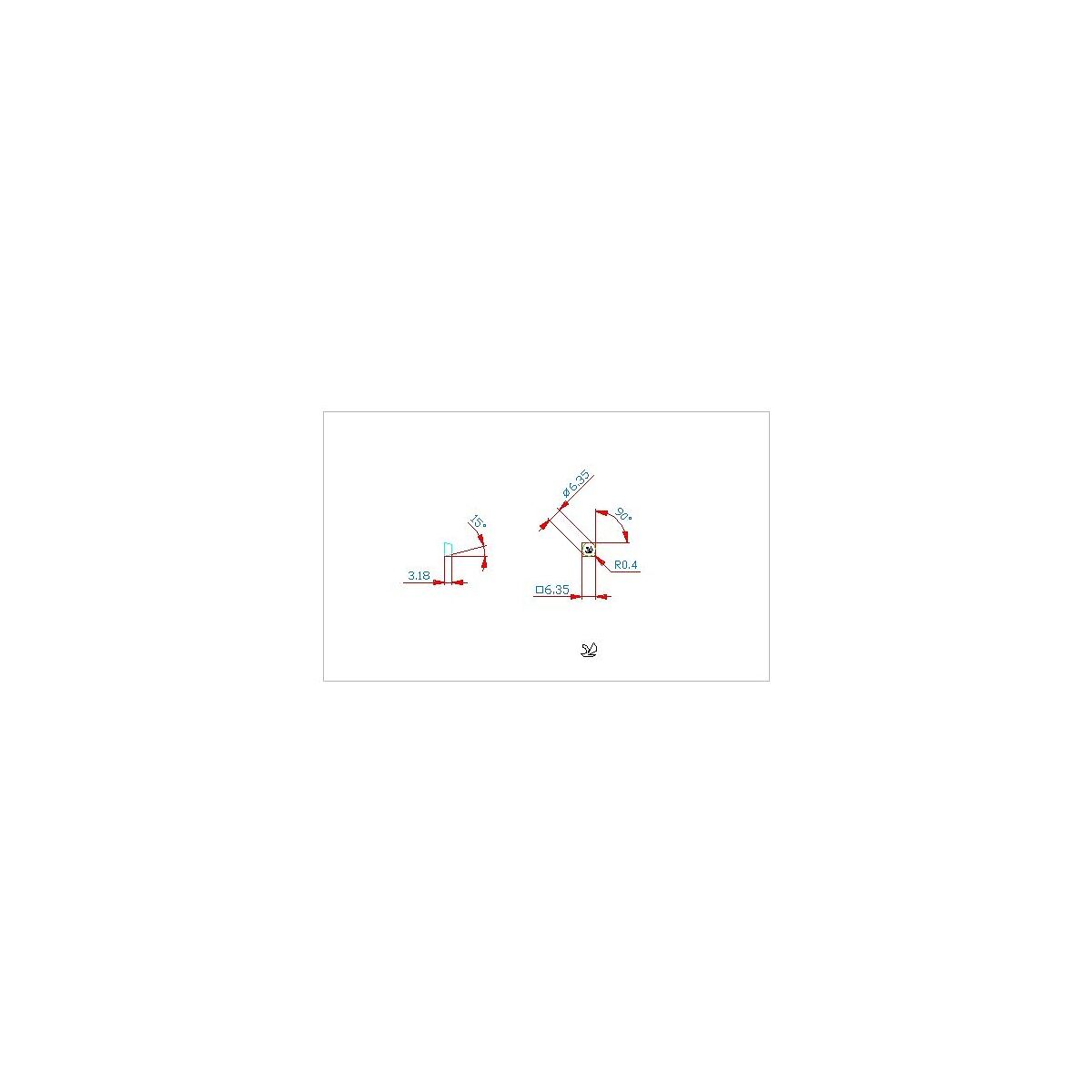

RE (GTC - Corner radius): 0.4 mmIFS (GTC - Insert mounting style code): 3 S (GTC - Insert thickness): 3.18 mmCorner radius/chamfer: 4 IC (GTC - Inscribed circle diameter): 6.35 mmL (GTC - Cutting edge length): 6.35 mmAN (GTC - Clearance angle major): 15 DegreeEPSR (GTC - Insert included angle): 90 DegreeSize: 603 Chip breaker: K CBMD (GTC - Chip breaker manufacturers designation): K Grade: KW10 TC (GTC - Tolerance class insert): M HAND (GTC - Insert hand): N Description: SDMT
