Carbide Milling Insert - SPMT090308E-Z KW10
Article no.: TWE00818
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable insert for milling |
Identification & Classification
| Article number | TWE00818 | |
| EAN / GTIN | 4960664220755 | |
| Manufacturer number | TWE00818 | |
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:
Carbide Milling Insert SPMT090308E-Z KW10
Feature:

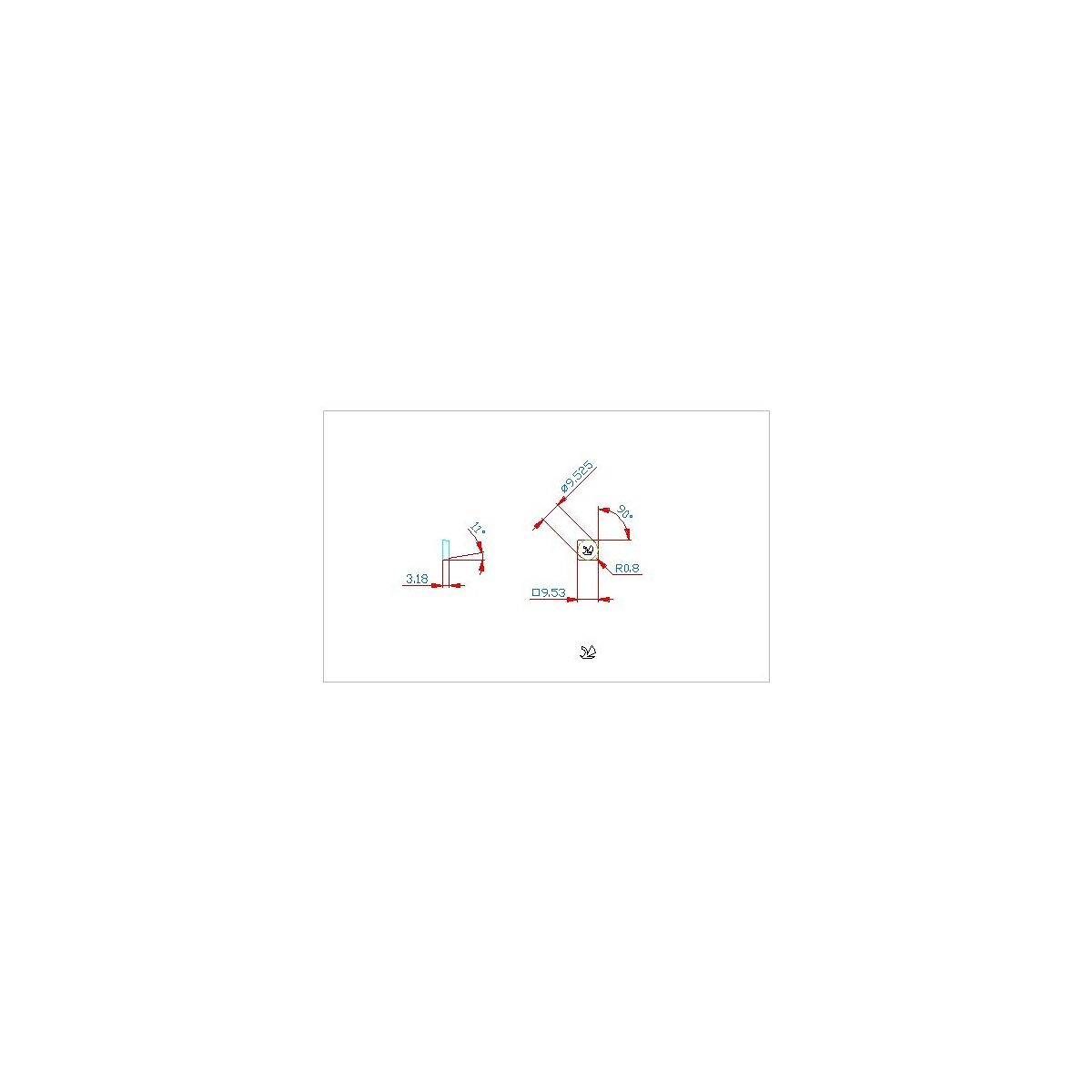

RE (GTC - Corner radius): 0.8 mmIFS (GTC - Insert mounting style code): 3 S (GTC - Insert thickness): 3.18 mmCorner radius/chamfer: 8 IC (GTC - Inscribed circle diameter): 9.525 mmL (GTC - Cutting edge length): 9.525 mmAN (GTC - Clearance angle major): 11 DegreeEPSR (GTC - Insert included angle): 90 DegreeSize: 903 Chip breaker: E-Z Grade: KW10 TC (GTC - Tolerance class insert): M HAND (GTC - Insert hand): N Description: SPMT CBMD (GTC - Chip breaker manufacturers designation): Z
