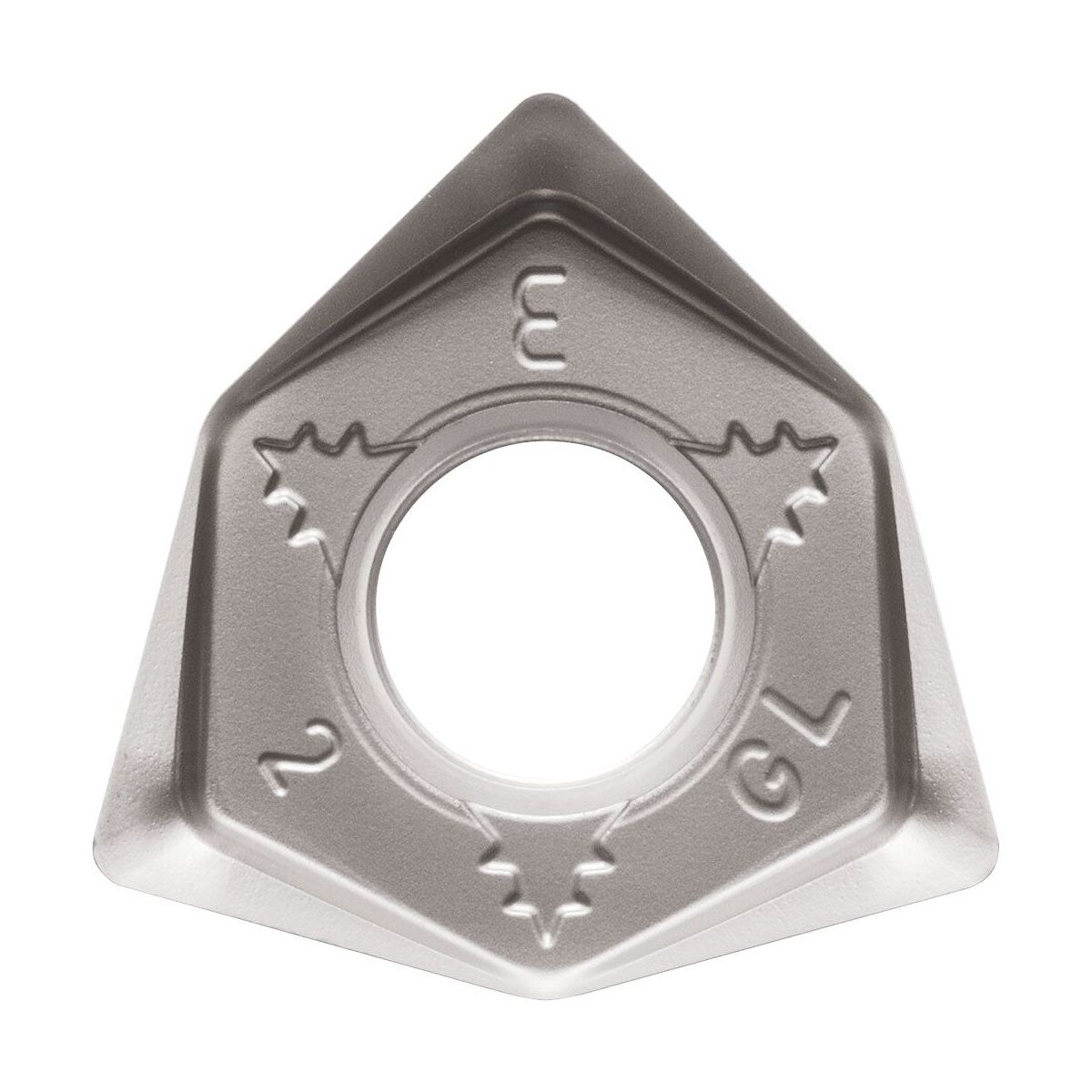

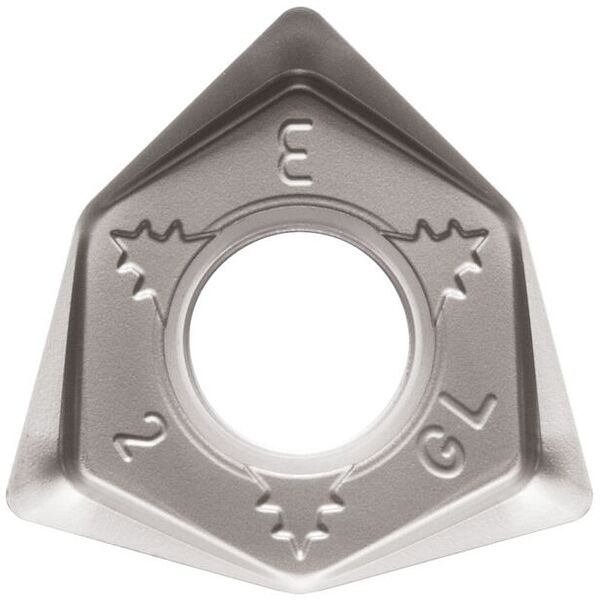

Cermet Milling Insert - WNEU080608EN-GL TN620M
Article no.: TST09313
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable insert for turning |
Identification & Classification
| Article number | TST09313 | |
| EAN / GTIN | 4960664838219 | |
| Manufacturer number | TST09313 | |
| L-Number | L22140 662 | |
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:
Cermet Milling Insert WNEU080608EN-GL TN620M
Feature:

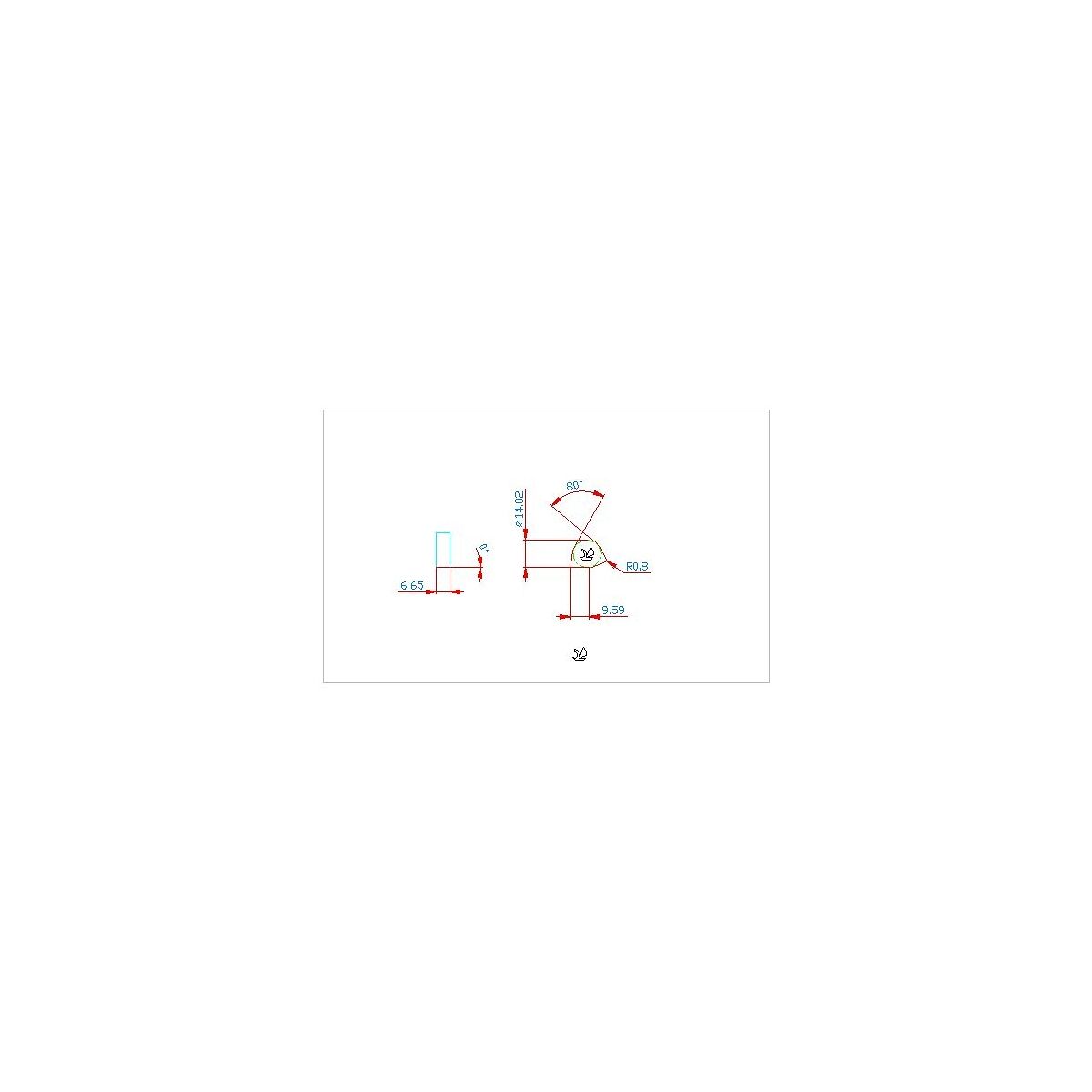

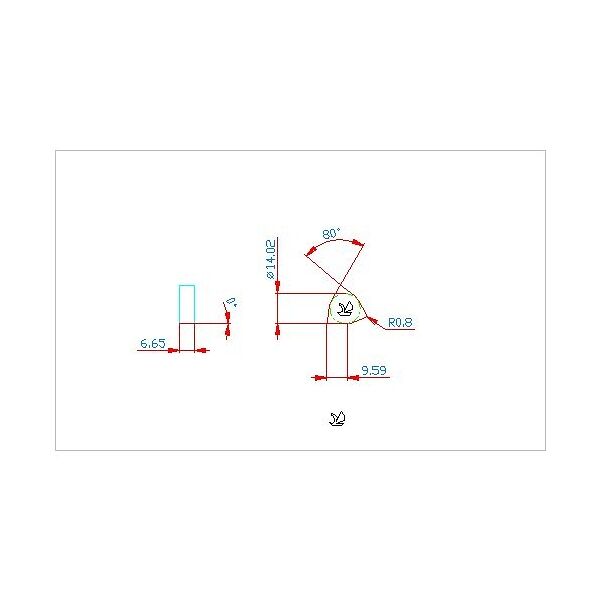

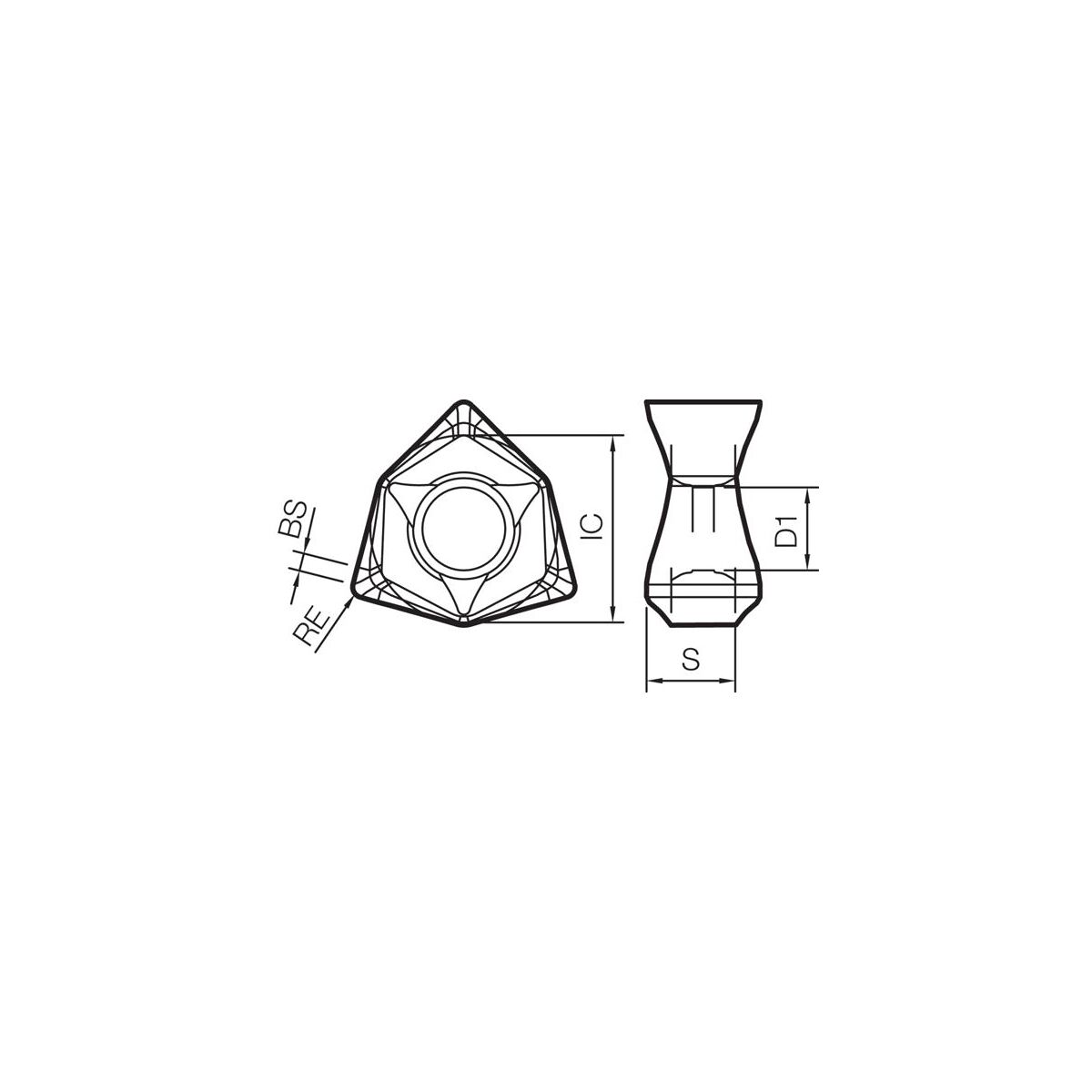

AN (GTC - Clearance angle major): 0 DegreeRE (GTC - Corner radius): 0.8 mmIFS (GTC - Insert mounting style code): 3 D1 (GTC - Fixing hole diameter): 6.2 mmS (GTC - Insert thickness): 6.65 mmCorner radius/chamfer: 8 IC (GTC - Inscribed circle diameter): 14.02 mmEPSR (GTC - Insert included angle): 80 DegreeSize: 806 COATING (GTC - Coating): CERMET TC (GTC - Tolerance class insert): E Chip breaker: GL CBMD (GTC - Chip breaker manufacturers designation): GL HAND (GTC - Insert hand): N Grade: TN620M Description: WNEU
