Milling Toolholder - MFLN90100R-4T-M
Article no.: THN08444
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Face mill |
Identification & Classification
| Article number | THN08444 | |
| EAN / GTIN | 4960664910571 | |
| Manufacturer number | THN08444 | |
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:

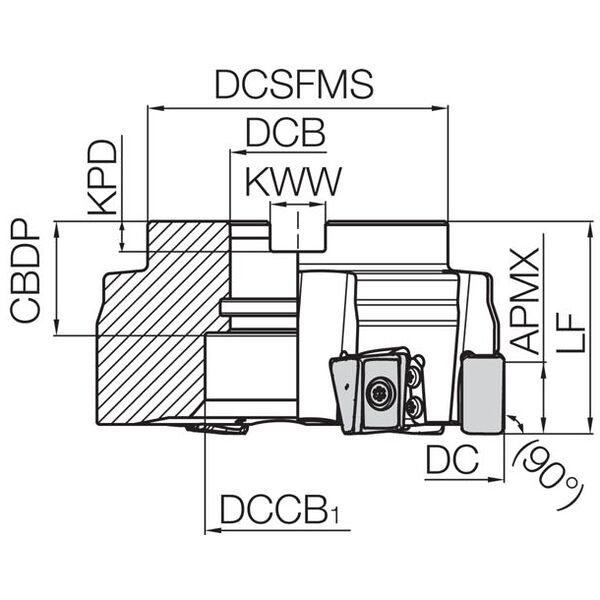

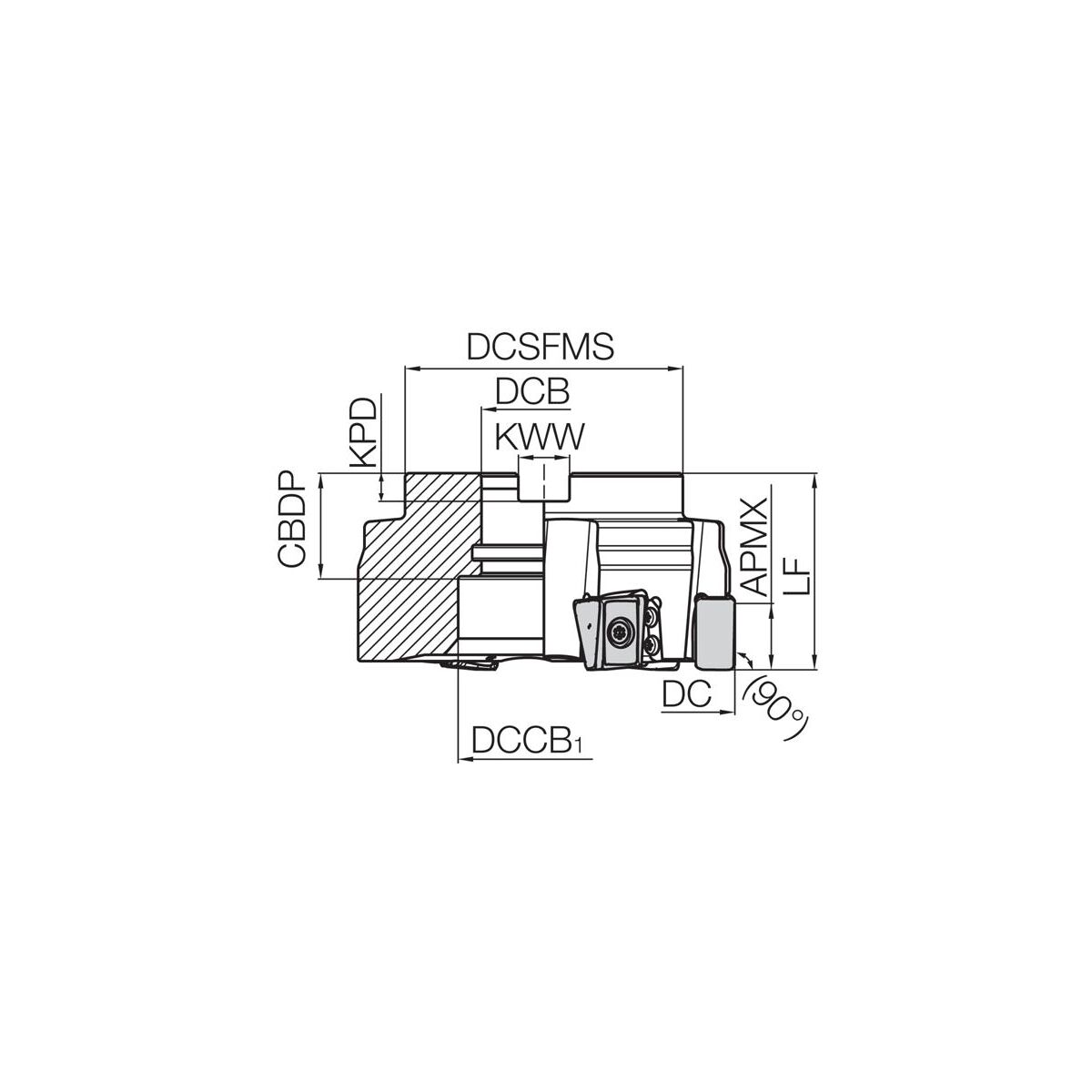

Milling Toolholder MFLN90100R-4T-M
Feature:
AN (GTC - Clearance angle major, Pos. A): 0 DegreeCNSC (GTC - Coolant entry style code): 0 CXSC (GTC - Coolant exit style code): 0 RMPX (GTC - Ramping angle maximum): 0 DegreeWT (GTC - Weight of item): 1.5 kgRE (GTC - Corner radius, Pos. A): 1.6 mmNumber of inserts: 4 ZEFF (GTC - Face effective cutting edge count): 4 ZEFP (GTC - Peripheral effective cutting edge count): 4 W1 (GTC - Insert width, Pos. A): 12.5 mmS (GTC - Insert thickness, Pos. A): 16.6 mmBore (DCON): 32 DCON (GTC - Connection diameter machine side): 32 mmHeight (OAL): 50 OAL (GTC - Overall length): 50 mmCutting angle: 90 KAPR (GTC - Tool cutting edge angle): 90 DegreeBD (GTC - Body diameter): 96 mmDC (GTC - Cutting diameter): 100 mmCZCMS (GTC - Connection size code machine side): 320 RPMX (GTC - Rotational speed maximum): 4780 1/minDiameter (DC): ø100 HAND (GTC - Cutting direction): R BMC (GTC - Body material code): S Internal coolant: Yes
