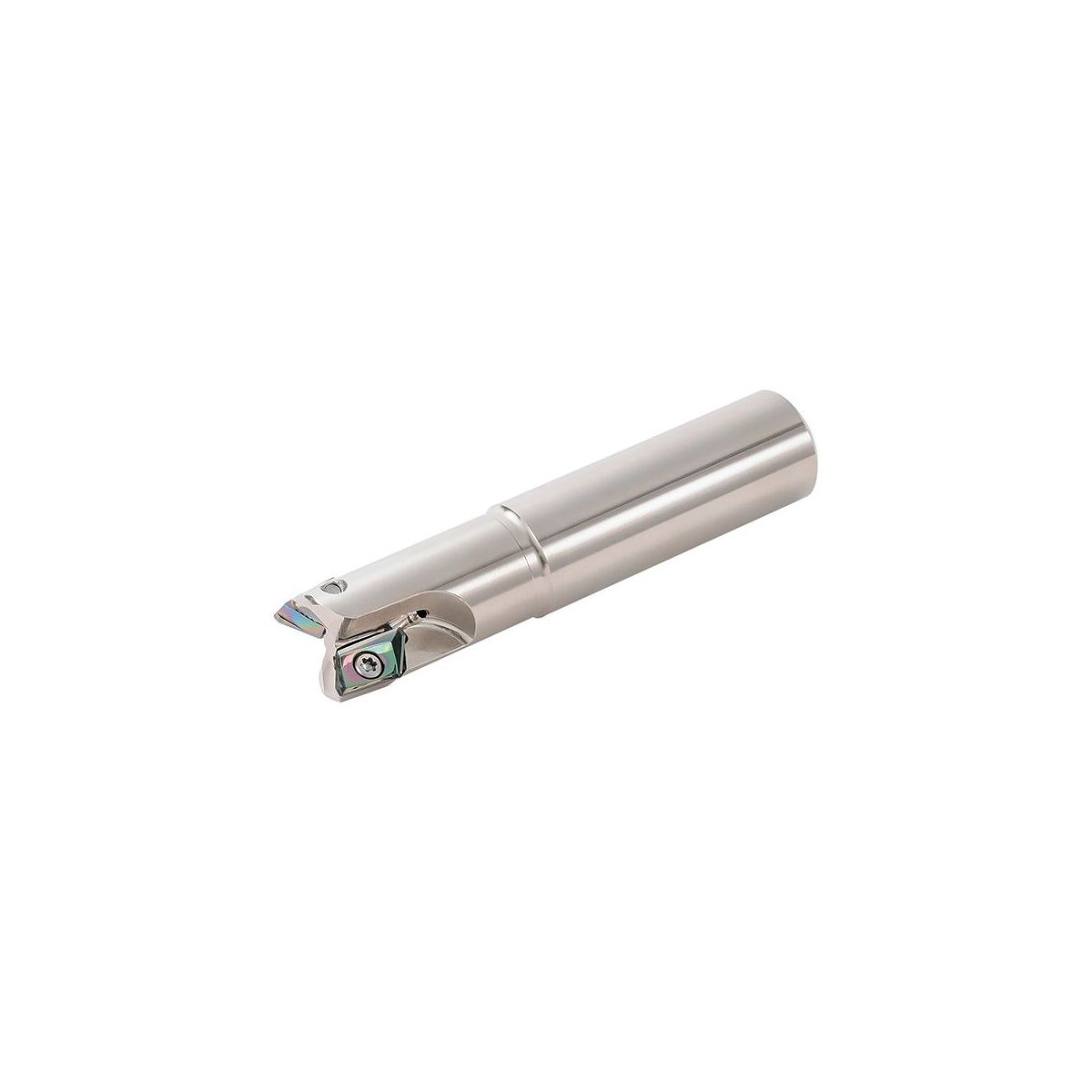

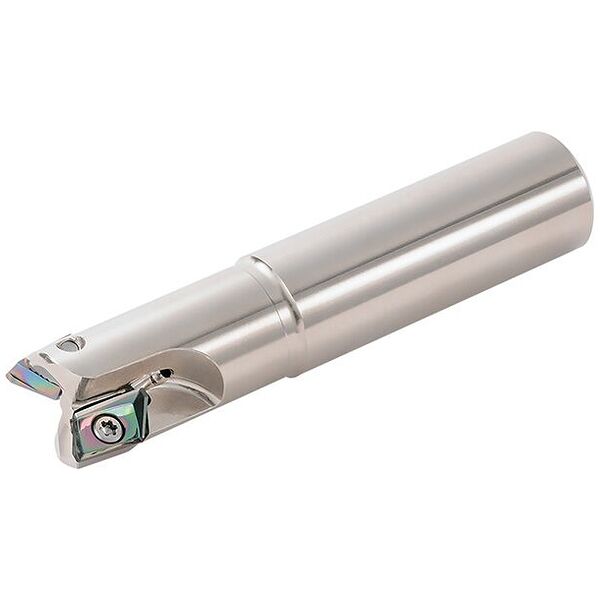

Milling Toolholder - MEAS32-S32-13-2T-200

Milling Toolholder MEAS32-S32-13-2T-200

RE (GTC - Corner radius, Pos. A): 0.8 mm
CNSC (GTC - Coolant entry style code): 1
WT (GTC - Weight of item): 1.123 kg
Number of inserts: 2
ZEFF (GTC - Face effective cutting edge count): 2
ZEFP (GTC - Peripheral effective cutting edge count): 2
CXSC (GTC - Coolant exit style code): 3
S (GTC - Insert thickness, Pos. A): 5.1 mm
AN (GTC - Clearance angle major, Pos. A): 7 Degree
IC (GTC - Inscribed circle diameter, Pos. A): 9.9 mm
W1 (GTC - Insert width, Pos. A): 9.9 mm
Cutting length (APMX): 12
APMX (GTC - Depth of cut maximum): 12 mm
RMPX (GTC - Ramping angle maximum): 12.5 Degree
L (GTC - Cutting edge length, Pos. A): 16.216 mm
BD (GTC - Body diameter): 30.5 mm
Shank diameter (DCON): 32
DC (GTC - Cutting diameter): 32 mm
DCON (GTC - Connection diameter machine side): 32 mm
LU (GTC - Usable length): 32 mm
EPSR (GTC - Cutting edge angle major, Pos. A): 57 Degree
LS (GTC - Shank length): 81 mm
Cutting angle: 90
KAPR (GTC - Tool cutting edge angle): 90 Degree
OHX (GTC - Protruding length): 124 mm
Total length (OAL): 200
LF (GTC - Functional length): 200 mm
OAL (GTC - Overall length): 200 mm
CZCMS (GTC - Connection size code machine side): 320
Insert size: 1305
RPMX (GTC - Rotational speed maximum): 39000 1/min
Recess (LDN): 119,0
Shank type: Cylindrical
TCDCON (GTC - ISO-tolerance class connection bore diameter machine side): h6
Diameter (DC): ø32
HAND (GTC - Cutting direction): R
BMC (GTC - Body material code): S
Internal coolant: Yes
