Milling Toolholder - MFPN66050R-5T-M-G
Article no.: THN08400
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Face mill |
Identification & Classification
| Article number | THN08400 | |
| EAN / GTIN | 4960664841004 | |
| Manufacturer number | THN08400 | |
| L-Number | L22160 235 | |
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:

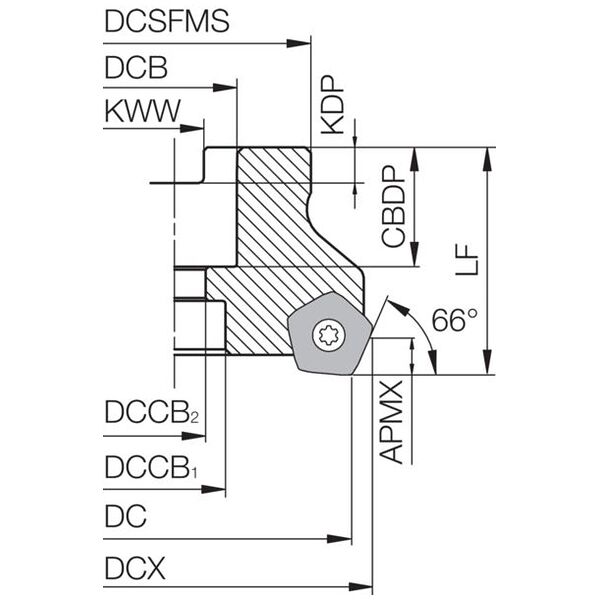

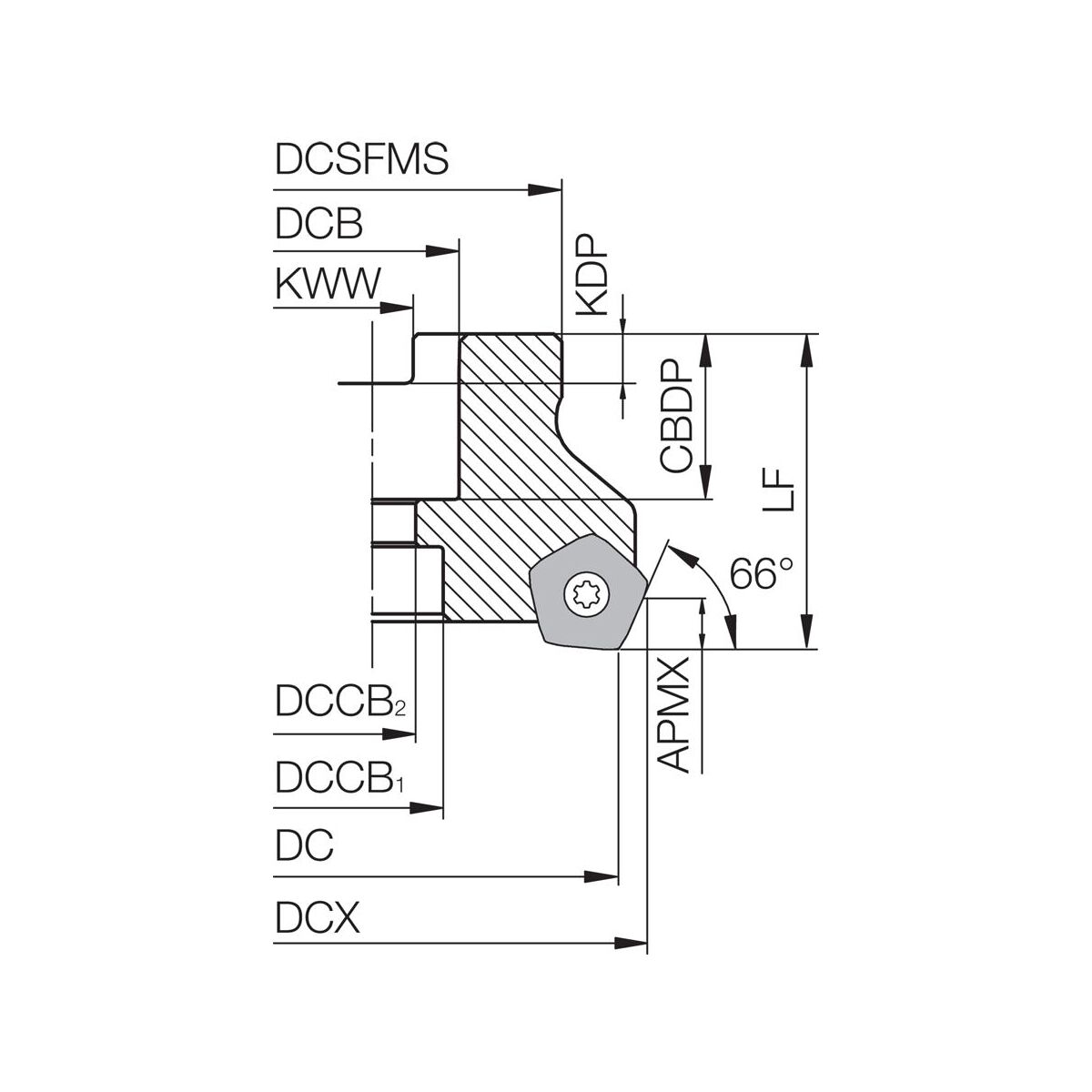

Milling Toolholder MFPN66050R-5T-M-G
Feature:
AN (GTC - Clearance angle major, Pos. A): 0 DegreeCNSC (GTC - Coolant entry style code): 0 CXSC (GTC - Coolant exit style code): 0 WT (GTC - Weight of item): 0.4 kgRE (GTC - Corner radius, Pos. A): 0.8 mmBS (GTC - Wiper edge length, Pos. A): 2 mmCHW (GTC - Corner chamfer length, Pos. A): 2 mmNumber of inserts: 5 ZEFF (GTC - Face effective cutting edge count): 5 ZEFP (GTC - Peripheral effective cutting edge count): 5 S (GTC - Insert thickness, Pos. A): 5.56 mmKCH (GTC - Corner chamfer angle, Pos. A): 9 DegreeL (GTC - Cutting edge length, Pos. A): 9.81 mmIC (GTC - Inscribed circle diameter, Pos. A): 13.5 mmBore (DCON): 22 DCON (GTC - Connection diameter machine side): 22 mmHeight (OAL): 40 OAL (GTC - Overall length): 40 mmDC (GTC - Cutting diameter): 50 mmBD (GTC - Body diameter): 53.6 mmDCX (GTC - Cutting diameter maximum): 58 mmKRINS (GTC - Cutting edge angle major, Pos. A): 63 DegreeCutting angle: 66 KAPR (GTC - Tool cutting edge angle): 66 DegreeEPSR (GTC - Cutting edge angle major, Pos. A): 108 DegreeCZCMS (GTC - Connection size code machine side): 220 RPMX (GTC - Rotational speed maximum): 13500 1/minInternal coolant: No Diameter (DC): ø50 MIID (GTC - Master insert identification, position A): PNMU0905XNER-GM HAND (GTC - Cutting direction): R BMC (GTC - Body material code): S
