Milling Toolholder - MFAH100RA-12T-254-SF
Article no.: THN08369
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Face mill |
Identification & Classification
| Article number | THN08369 | |
| EAN / GTIN | 4960664834099 | |
| Manufacturer number | THN08369 | |
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:
Milling Toolholder MFAH100RA-12T-254-SF
Feature:

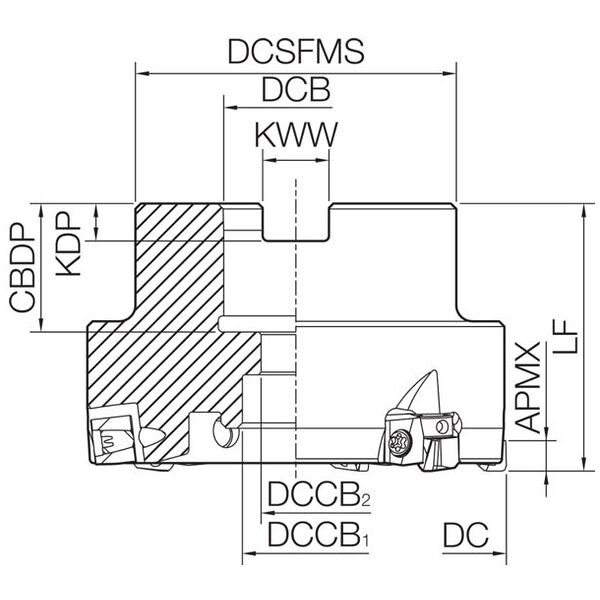

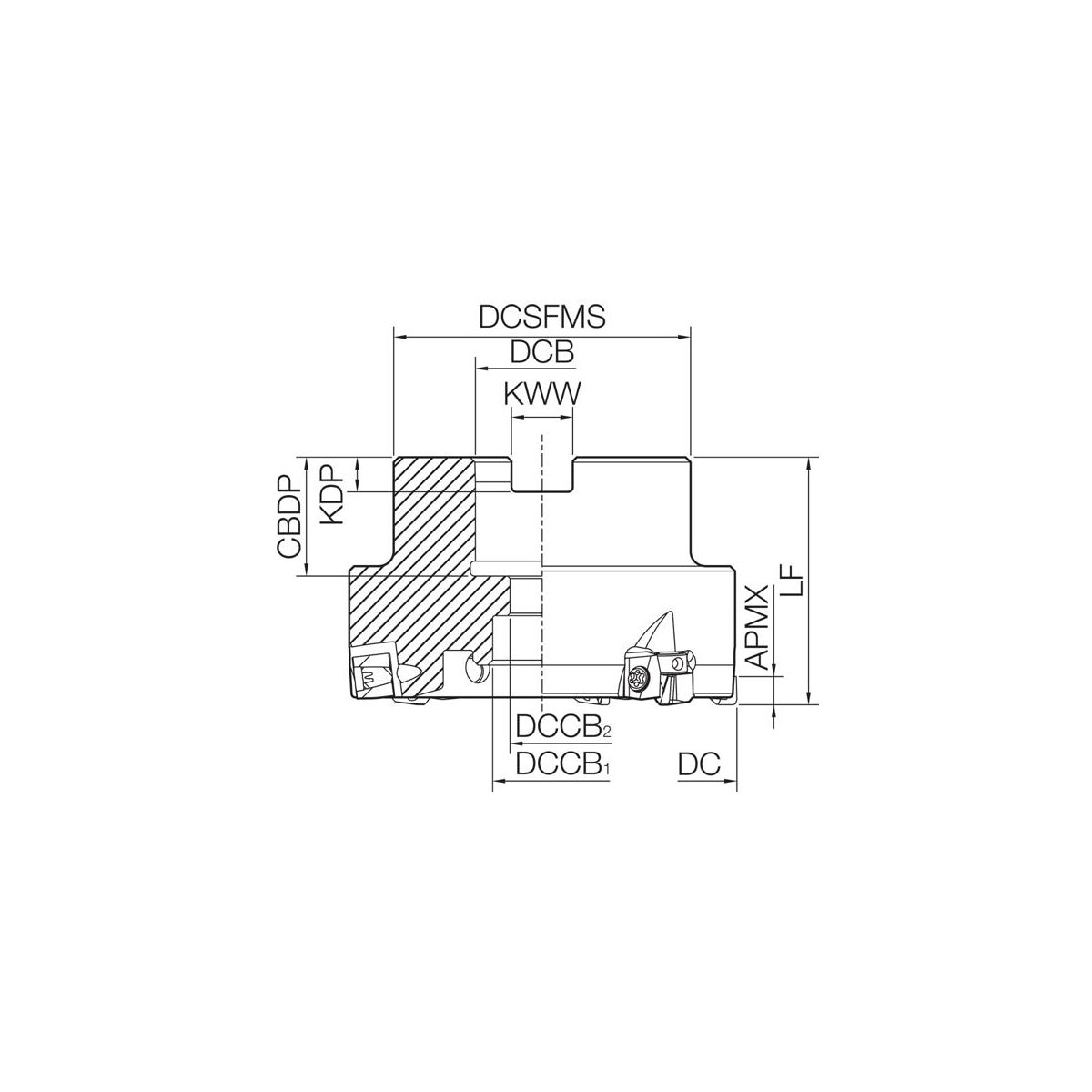

CHW (GTC - Corner chamfer length, Pos. A): 0.27 mmBS (GTC - Wiper edge length, Pos. A): 0.5 mmCNSC (GTC - Coolant entry style code): 1 WT (GTC - Weight of item): 1.16 kgCXSC (GTC - Coolant exit style code): 3 L (GTC - Cutting edge length, Pos. A): 5.6 mmIC (GTC - Inscribed circle diameter, Pos. A): 6.02 mmS (GTC - Insert thickness, Pos. A): 7.9 mmZEFF (GTC - Face effective cutting edge count): 12 ZEFP (GTC - Peripheral effective cutting edge count): 12 AN (GTC - Clearance angle major, Pos. A): 15 DegreeKCH (GTC - Corner chamfer angle, Pos. A): 21 DegreeDCON (GTC - Connection diameter machine side): 25.4 mmOAL (GTC - Overall length): 50 mmKRINS (GTC - Cutting edge angle major, Pos. A): 70 DegreeKAPR (GTC - Tool cutting edge angle): 90 DegreeDC (GTC - Cutting diameter): 100 mmCZCMS (GTC - Connection size code machine side): 1000 RPMX (GTC - Rotational speed maximum): 13000 1/minInternal coolant: No HAND (GTC - Cutting direction): R BMC (GTC - Body material code): S
