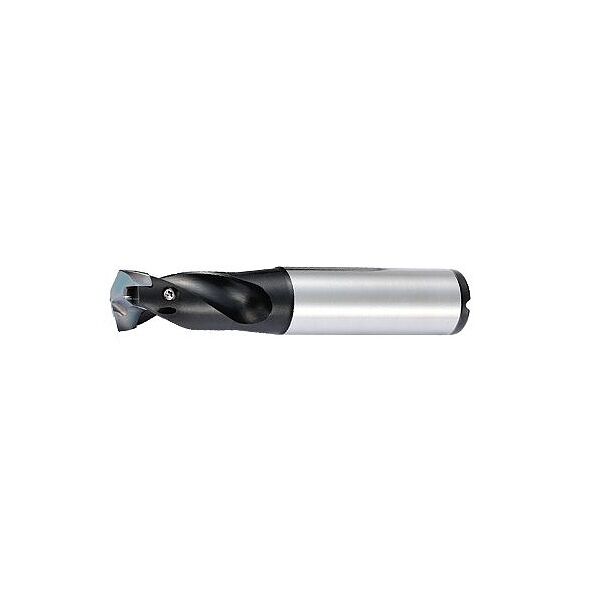

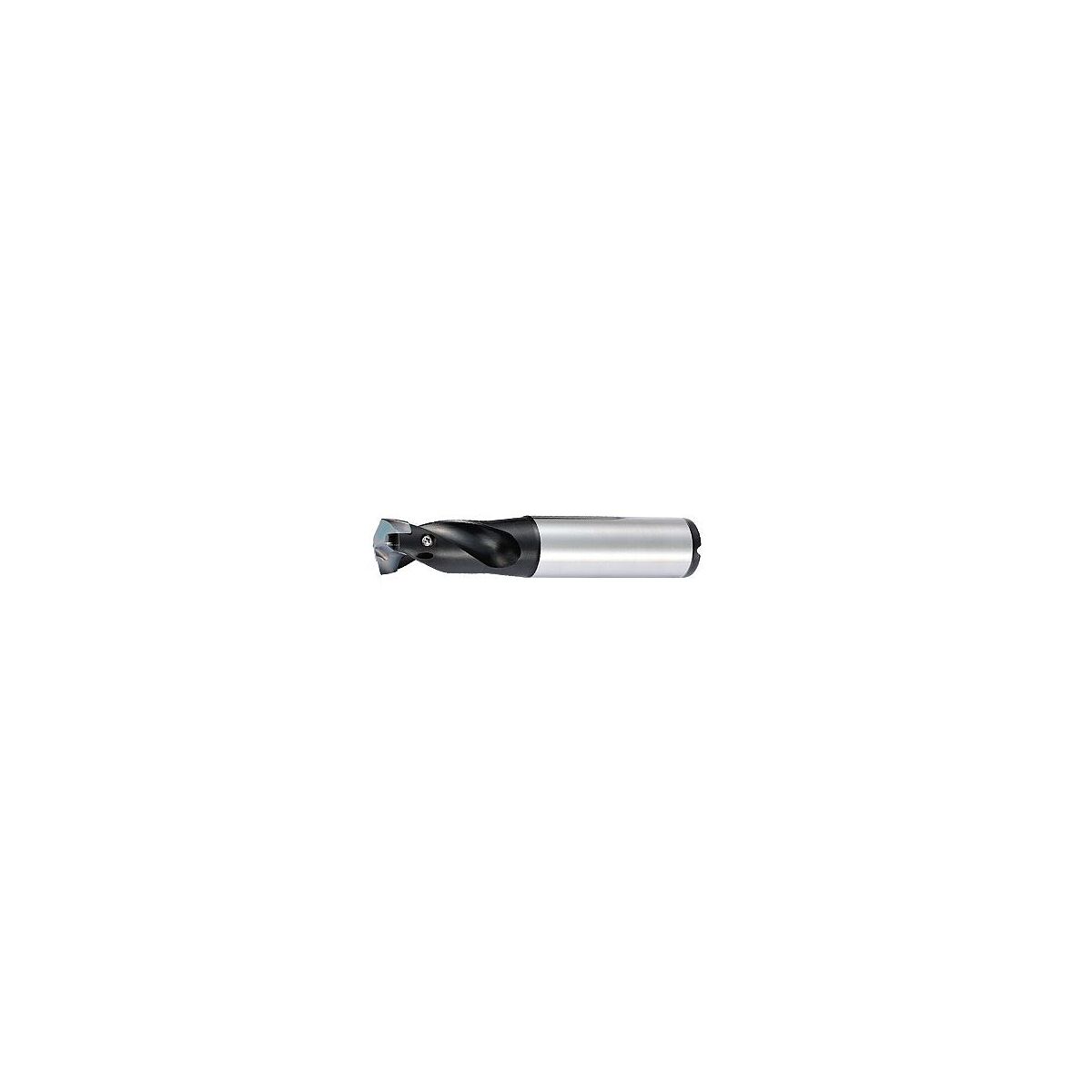

Drilling Toolholder - SS14-DRA135M-1.5
Article no.: THD11501
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Type of product | Indexable drill |
Identification & Classification
| Article number | THD11501 | |
| EAN / GTIN | 4960664811106 | |
| Manufacturer number | THD11501 | |
| L-Number | L22510 253 | |
| Manufacturer/responsible person | KYOCERA UNIMERCO Tooling GmbH, Hammfelddamm 6, 41460 NEUSS, Germany, www.kyocera-unimerco.de |
Description
Description:
Drilling Toolholder SS14-DRA135M-1.5
Feature:
WT (GTC - Weight of item): 0.079 kgCNSC (GTC - Coolant entry style code): 1 NOF (GTC - Cutting edge count): 2 CXSC (GTC - Coolant exit style code): 3 BD (GTC - Body diameter 1st step): 13.1 mmDC (GTC - Cutting diameter minimum): 13.5 mmDCCTX (GTC - Cutting diameter 1st step maximum): 13.99 mmDCON (GTC - Connection diameter machine side): 14 mmDrilling depth (LU): 21 LU (GTC - Usable length): 21 mmLCF (GTC - Length chip flute): 30.98 mmOHX (GTC - Protruding length): 41 mmShank length (LS): 45 LS (GTC - Shank length): 45 mmTotal length (OAL): 86 OAL (GTC - Overall length): 86 mmCZCMS (GTC - Connection size code machine side): 140 SIG (GTC - Point angle 1st step): 140 DegreeDrilling depth (Rdd): 1.5XD Shank diameter (DCON): 14,0 TCDCON (GTC - ISO-tolerance class connection bore diameter machine side): h6 Diameter (DC): ø13,50-13,99 HAND (GTC - Cutting direction): R BMC (GTC - Body material code): S Internal coolant: Yes
