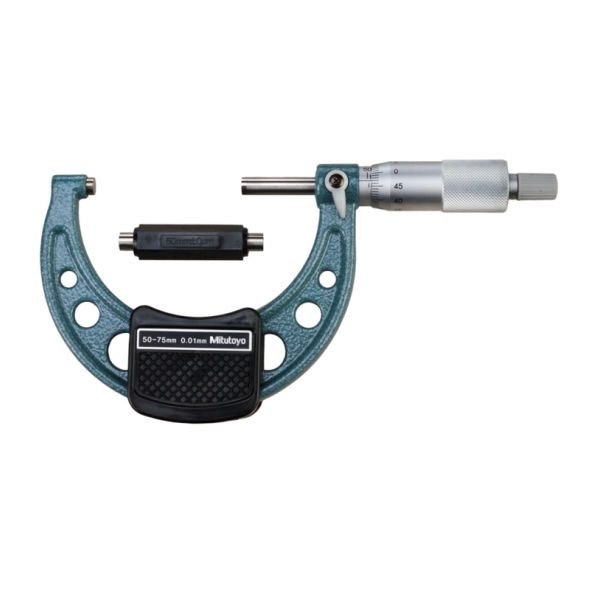

Outside Micrometer Economy Design 50-75mm 50 – 75 mm
Article no.: L40010 4573
Article code:
- Standard: Werksnorm
- Packaging: sturdy box
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Standard | Werksnorm | |
| Measuring range | 50 mm - 75 mm | |
| Scale divisions | 0.001 mm | |
| Error limit | 2 µm | |
| Spindle ⌀ | 6.35 mm | |
| Barrel ⌀ | 18 mm | |
| Locking | yes | |
| Measurement technology | analogue | |
| Weight | 0.315 kg | |
| Packaging | sturdy box | |
| Type of product | Bügelmessschraube |
Identification & Classification
| Article number | L40010 4573 | |
| EAN / GTIN | 4946368214955 | |
| Manufacturer number | 103-139-10 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Version:
Mechanical external micrometer with matt chromium plated scale barrel and sleeve. Carbide-tipped measuring faces.
Description:
Lightweight workshop design with baked-enamel-finished frame. Equipped with Ratchet Stop for constant measuring force.
Feature:
Digital/Analogue: Analogue
Measuring range: 50 - 75
Graduation: 0.01 mm
Limit value of measuring deviation J MPE: ±2 µm
Scale: Scale drum and sleeve satin chrome-plated, ø18 mm (≤300 mm), ø21 mm (>300 mm)
Measuring force: 5-10
Inch/metric: metric
Scope of delivery: Incl. box, setting standard (from 25 mm), setting key, factory test certificate (0-50 mm)
Measuring range: 50 - 75
Graduation: 0.01 mm
Limit value of measuring deviation J MPE: ±2 µm
Scale: Scale drum and sleeve satin chrome-plated, ø18 mm (≤300 mm), ø21 mm (>300 mm)
Measuring force: 5-10
Inch/metric: metric
Scope of delivery: Incl. box, setting standard (from 25 mm), setting key, factory test certificate (0-50 mm)
