simturn GX clamping holder, steel, round shank, internal machining, D=32 mm, Dmin=40 mm, L2=70 mm, L1=200 mm
Article no.: G14.0032.04 R
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | G14.0032.04 R | |
| EAN / GTIN | 4069769182019 | |
| Manufacturer number | AGAV | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

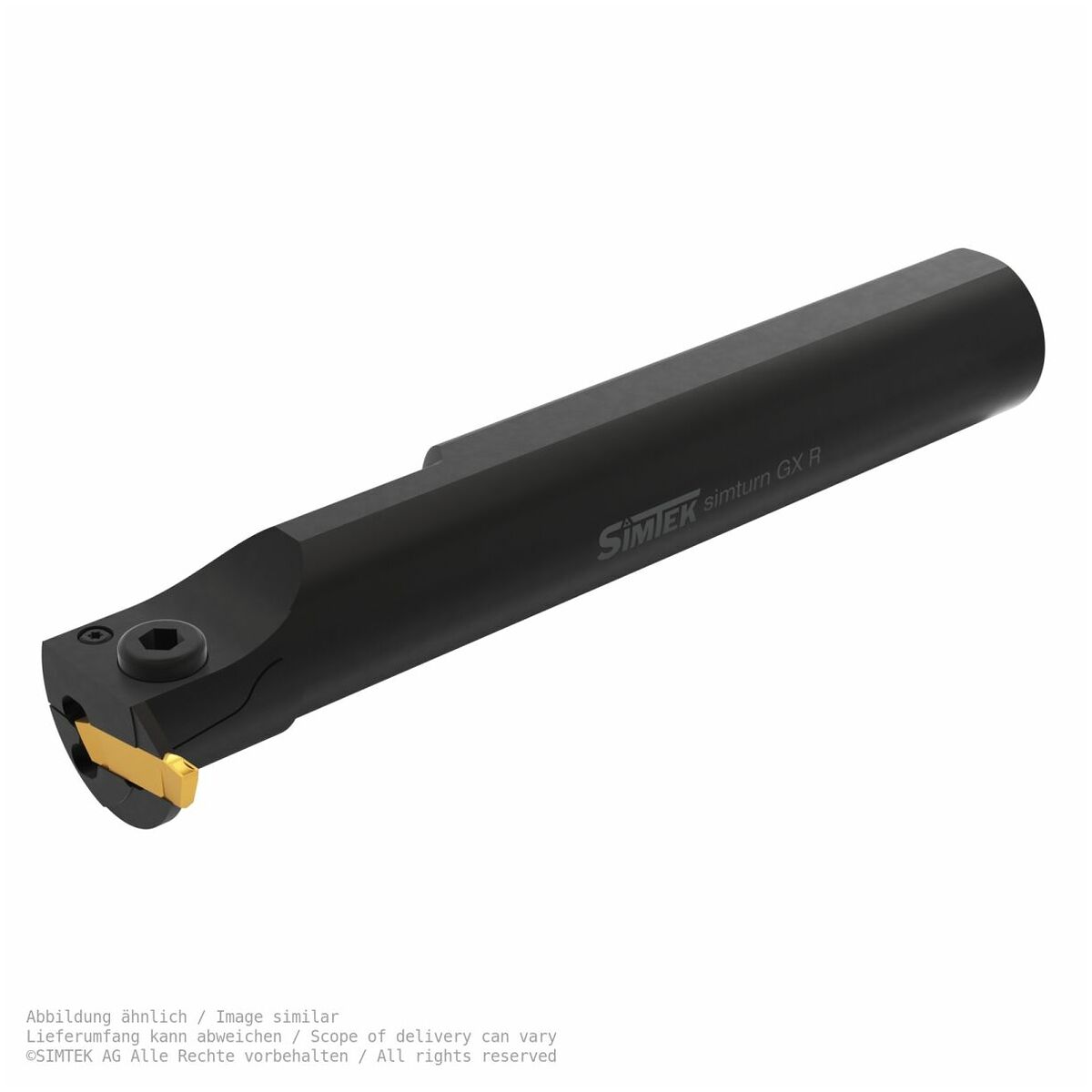

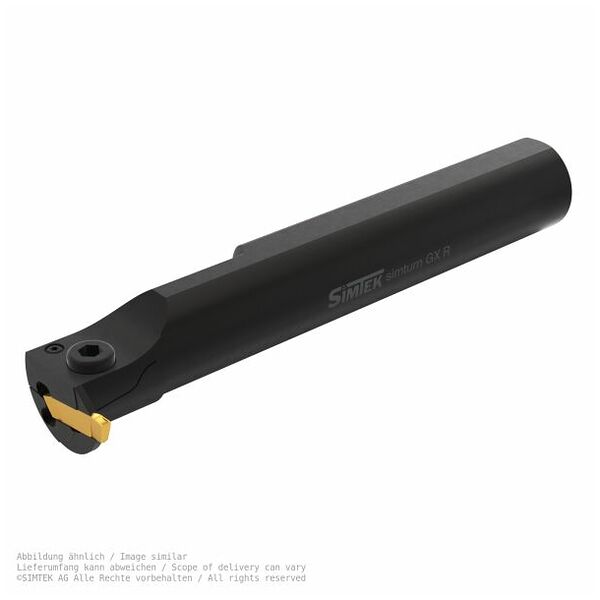

SIMTEK simturn GX toolholder
Steel, round shaft, internal machining
D=32 mm, Dmin=40 mm, L2=70 mm, L1=200 mm

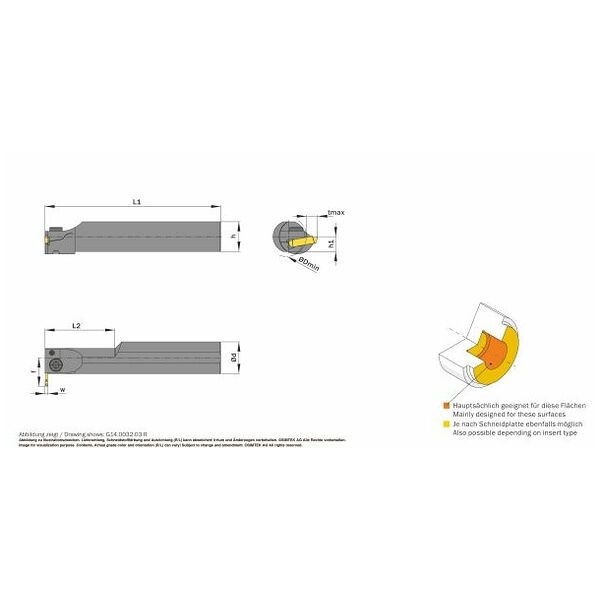

Technical parameters:
- h = 30.0 mm
- Ød = 32.0 mm (tolerance g6)
- Screwdriver = SW6
- Screw = ATJ8
- tmax = 11.0 mm
- L2 = 70.0 mm
- h1 = 15.0 mm (tolerance js14)
- f = 28.0 mm
- ØDmin (min. bore) = 40.0 mm
- w≤ = 5.1 mm
- w≥ = 4.0 mm
- L1 = 200.0 mm
