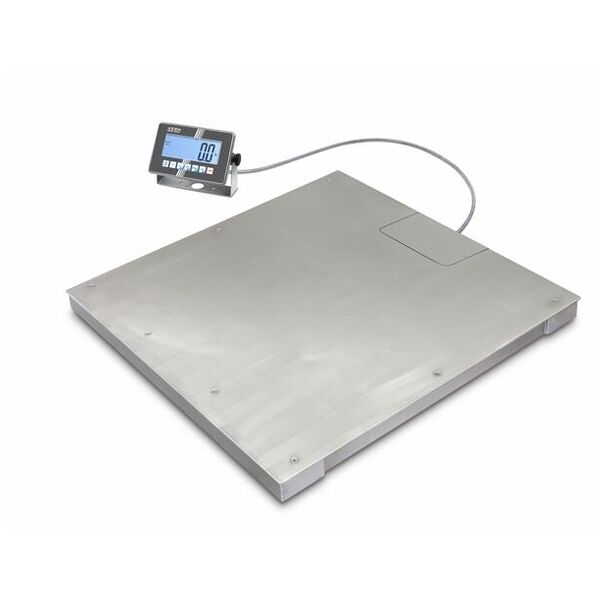

Floor scale stainless steel BXC 1.5T-4M, weighing range 1500 kg, readability 0.5 kg
Article no.: BXC 1.5T-4M
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | BXC 1.5T-4M | |
| EAN / GTIN | 4045761481718 | |
| Manufacturer number | BXC 1.5T-4M | |
| Manufacturer/responsible person | Kern & Sohn GmbH, Ziegelei 1, 72336 BALINGEN, Germany, www.kern-sohn.com |
Description
Description:
- Heavy industrial standard suitable for rough use
- Weighing plate screwed on from above with stainless steel screws, making it easy to remove and hygienic and easy to clean
- Weighing bridge: Stainless steel, extremely resistant to bending due to high material thickness, 4 hermetically-sealed stainless steel load cells, dust and water protection IP68
- Easy levelling of the weighing bridge and access to the junction box from above
- Display device: Stainless steel, dust and water protection IP68, for details see KERN KXC-TM
- IoT-Line: networkable scales with comfortable operating philosophy
- Industrie 4.0: Optional exchange of data and control commands via up to four interfaces according to your individual requirements: Two wired and two wireless interfaces, for details see KERN KXC-TM
- Optional alibi memory for paperless archiving of weighing results. This also allows the results of verifiable weighing to be evaluated and processed electronically in accordance with regulations
- Desk stand including wall bracket for the display device as standard
Feature:
- Large, backlit LCD display, digit height 48 mm
- Dimensions of weighing platform W×D×H, stainless steel, 1500×1250×85 mm
- Dimensions of display device W×D×H 232×150×77.3 mm
- Cable length of display device approx. 5 m
- Net weight approx. 150 kg
- Permissible ambient temperature range -10 °C/40 °C
Note:
- For legal metrology Please order verification (conformity assessment according to NAWI 2014/31/EU) at the same time, as subsequent initial verification is not possible. For verification, we need the full address of the installation site
