simturn AX cutting insert, boring of holes, Dmin=3 mm, R=0.15 mm, L2=20.3 mm
Article no.: A04.1C14.20.30.15 YUL CBN8
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | A04.1C14.20.30.15 YUL CBN8 | |
| EAN / GTIN | 4069769024074 | |
| Manufacturer number | ANDPCBN8 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

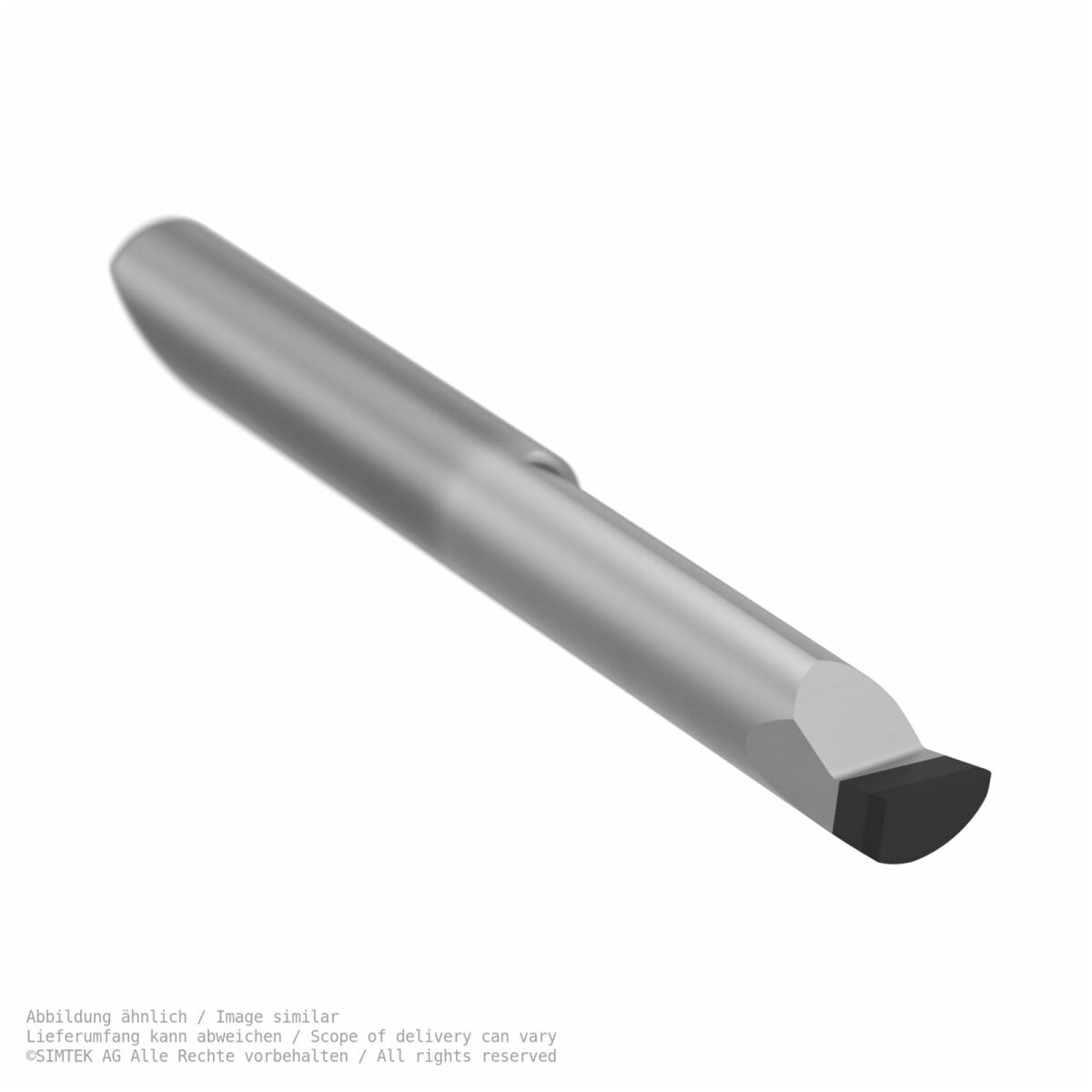

SIMTEK simturn AX cutting insert
Reaming of holes
Dmin = 3 mm, R = 0.15 mm, L2 = 20.3 mm

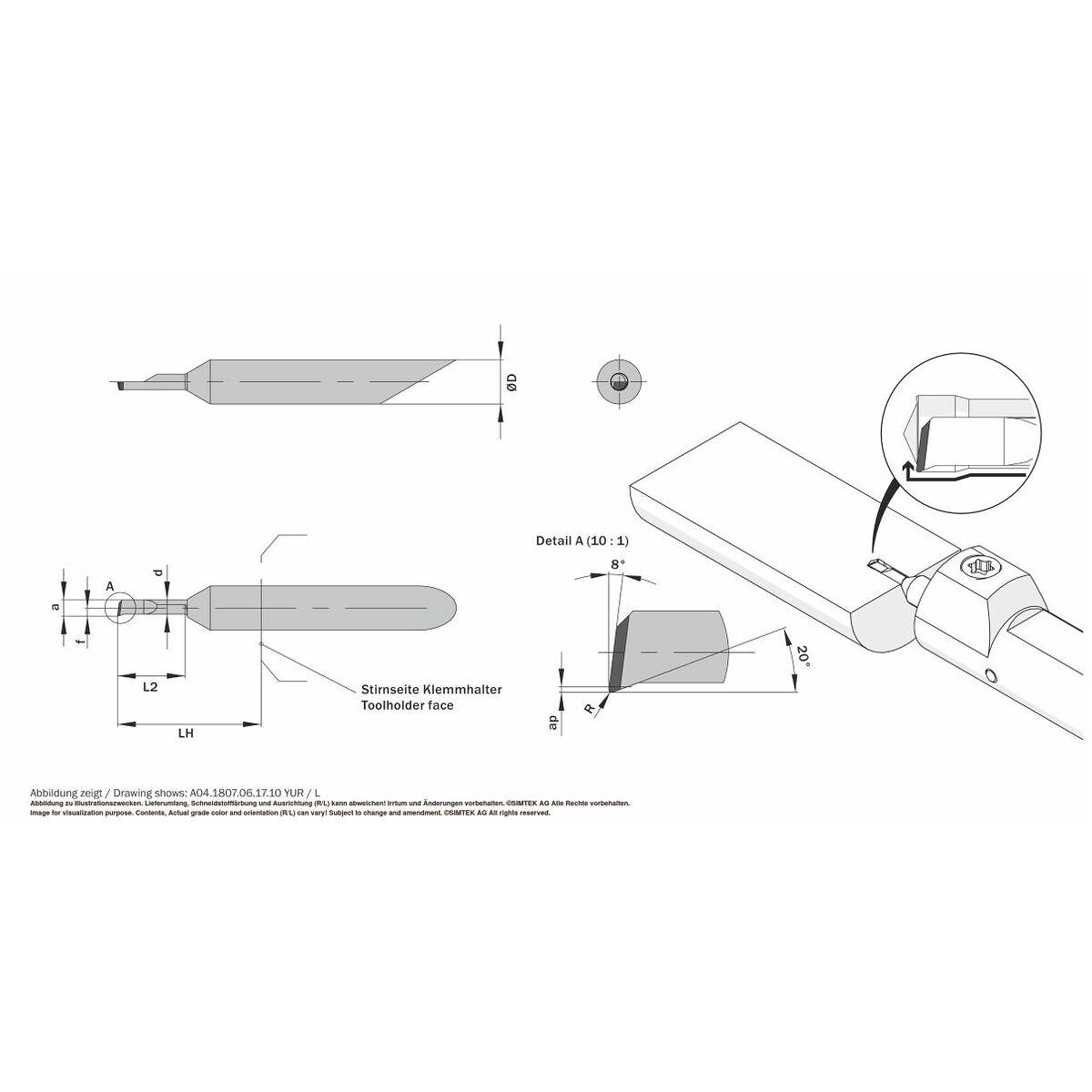

Technical parameters:
- R = 0.15 mm
- LH = 23.0 mm
- f = 1.95 mm
- d = 2.35 mm
- a = 2.75 mm
- ØDmin (min. bore) = 3.0 mm
- L2 = 20.3 mm
- ØD = 4.0 mm
- ap = 0.10 mm
