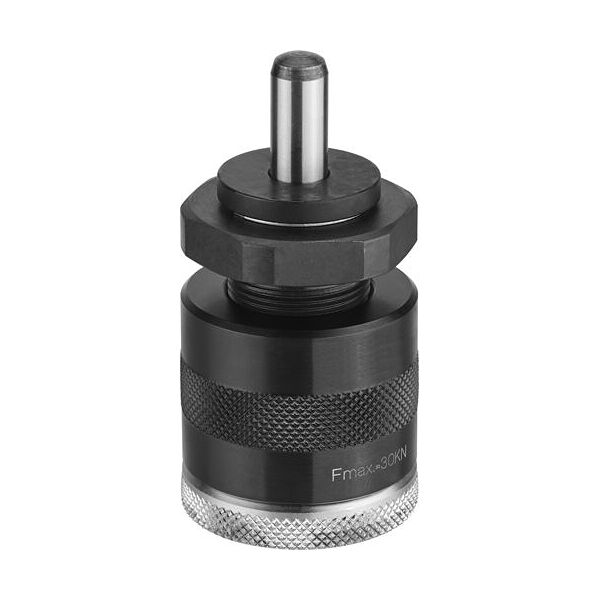

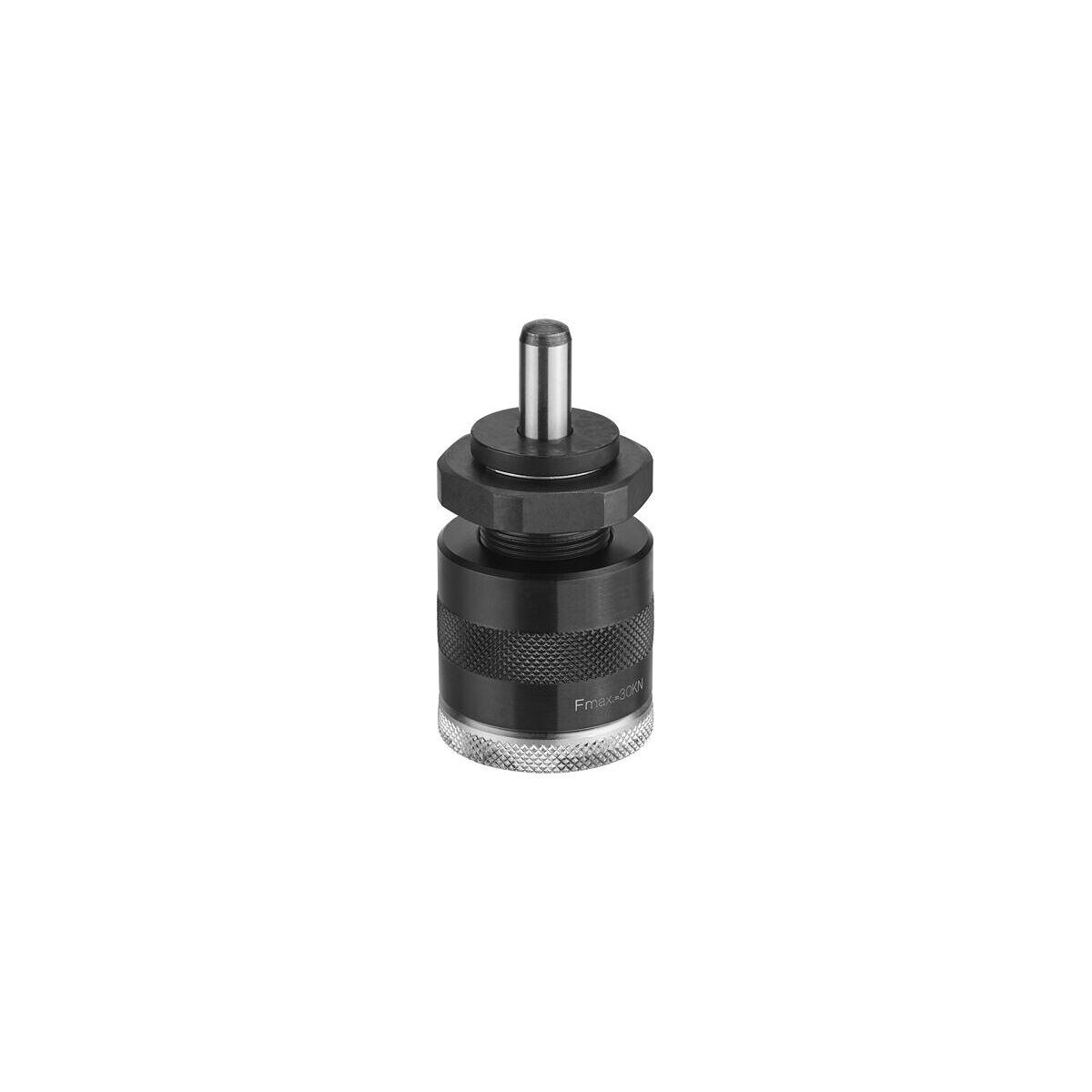

Height setting screw jack with magnetic base
Article no.: 86538
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 86538 | |
| EAN / GTIN | 4020772086534 | |
| Manufacturer number | 86538 | |
| L-Number | L30130 161 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:

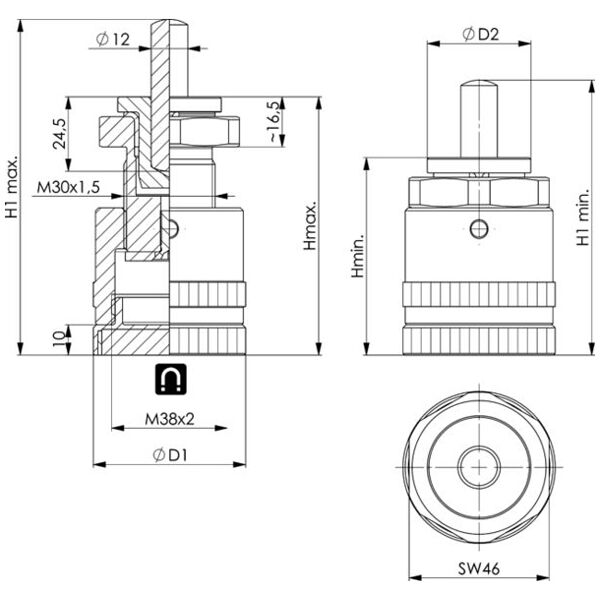

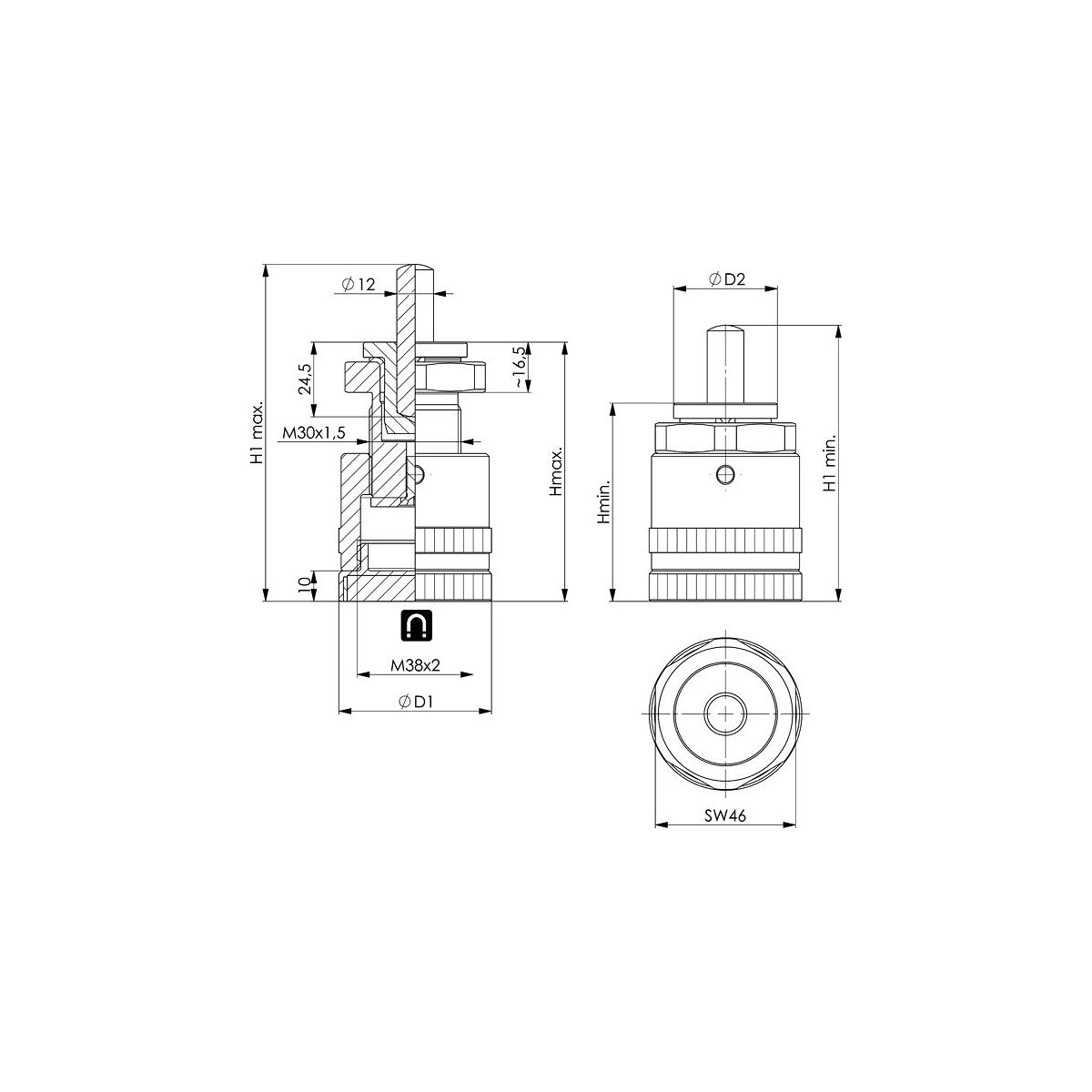

Height-adjustable screw stand with magnetic base, with a cylindrical pin ISO8737-12x50. Centering hole Ø12 mm.
Spindle: Metric fine thread M30x1.5 with end protection. Slide insert runs on pressed-in plain bearing bushing. Heat treatable steel, burnished
Spindle: Metric fine thread M30x1.5 with end protection. Slide insert runs on pressed-in plain bearing bushing. Heat treatable steel, burnished
Feature:
- Size: 125
- H min: 85 mm
- H max.: 125 mm
- D1: 50
- D2: 34
- H1 min
: 112 - H1 max.
: 152 - F max.: 30 kN
- Weight: 1000 g
