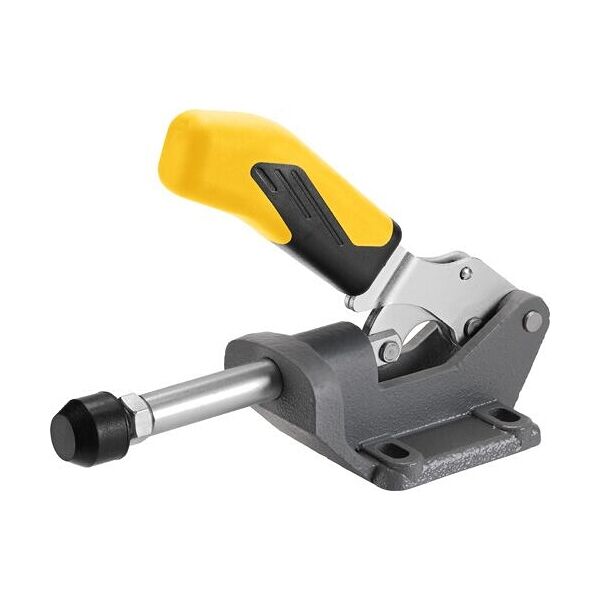

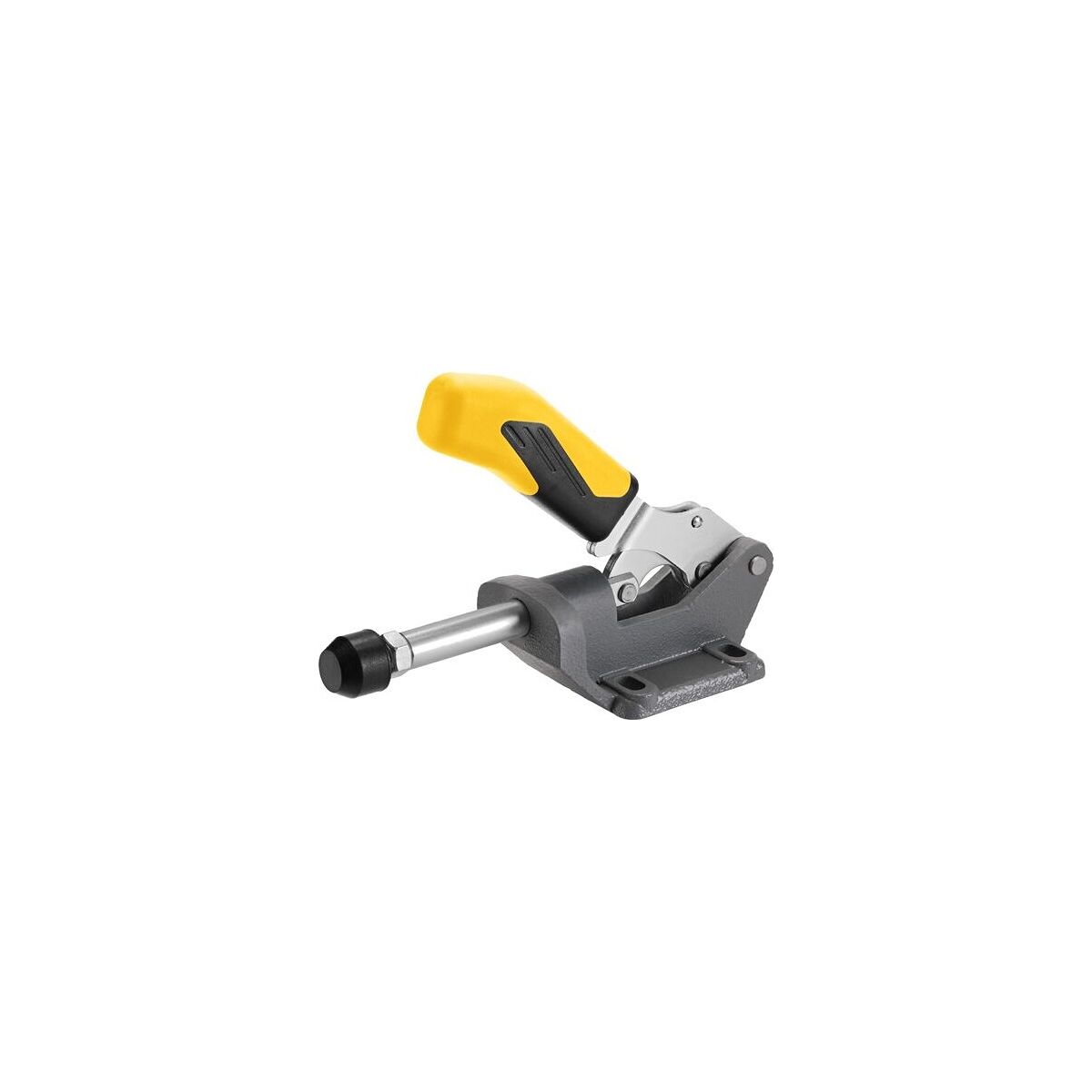

Heavy-duty push-pull type toggle clamp with yellow handle
Article no.: 557171
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 557171 | |
| EAN / GTIN | 4020772006617 | |
| Manufacturer number | 557171 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Description:
Heavy push rod tensioner with yellow handle, push and pull tensioner.
(Push rod and hand lever running at the same time). Heavy-duty version with long push rod guide. Base body made of malleable cast iron, painted. Lever parts and push rod made of tempered steel, galvanized and passivated. Stainless steel rivets that run in case hardened bushings at size 3. Bearing points are greased.
Ergonomic, oil-resistant handle with large palm rest and soft component.
Complete with tempered, zinc-plated push-on screw
No. 6880.
(Push rod and hand lever running at the same time). Heavy-duty version with long push rod guide. Base body made of malleable cast iron, painted. Lever parts and push rod made of tempered steel, galvanized and passivated. Stainless steel rivets that run in case hardened bushings at size 3. Bearing points are greased.
Ergonomic, oil-resistant handle with large palm rest and soft component.
Complete with tempered, zinc-plated push-on screw
No. 6880.
Feature:
- Size: 5
- F1: 10 kN
- F2: 10 kN
- Contact screw: M12x50
- Weight: 1115 g

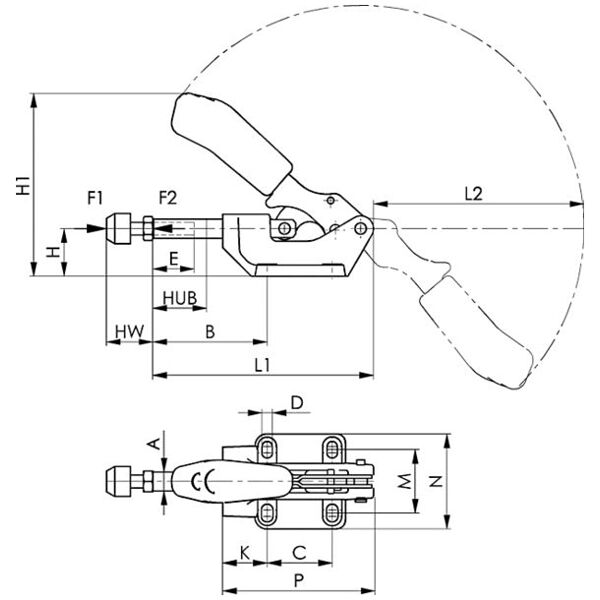

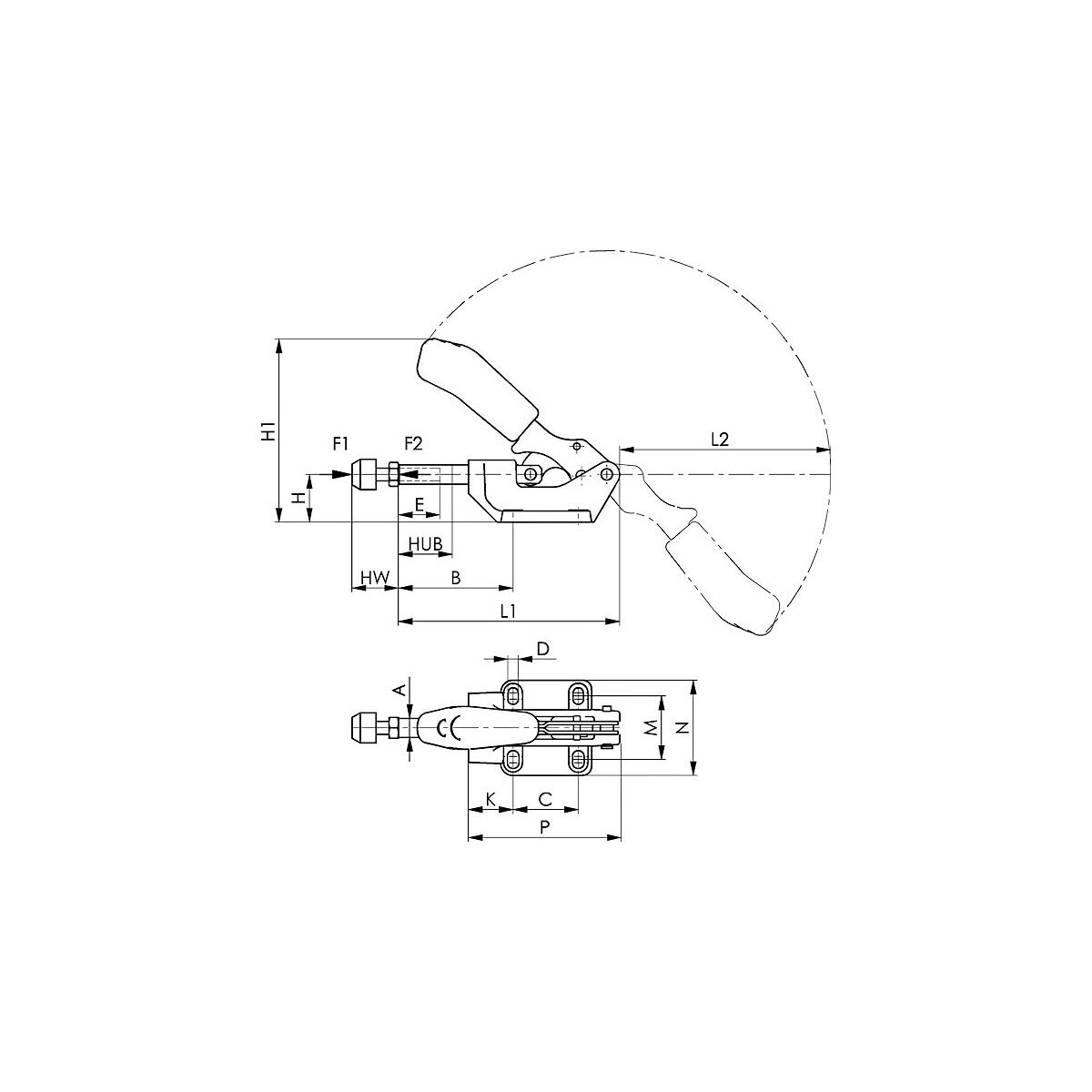

- Size: 5
- A: 16
- B min: 58
- B max.: 98
- C: 41
- D: 8.5
- E: 50
- H: 38
- H1: 137.5
- Stroke: 40
- HW min.: 30
- HW max.: 50
- O: 45
- L1: 174
- L2: 156
- M: 41-50
- N: 71
- P: 121
