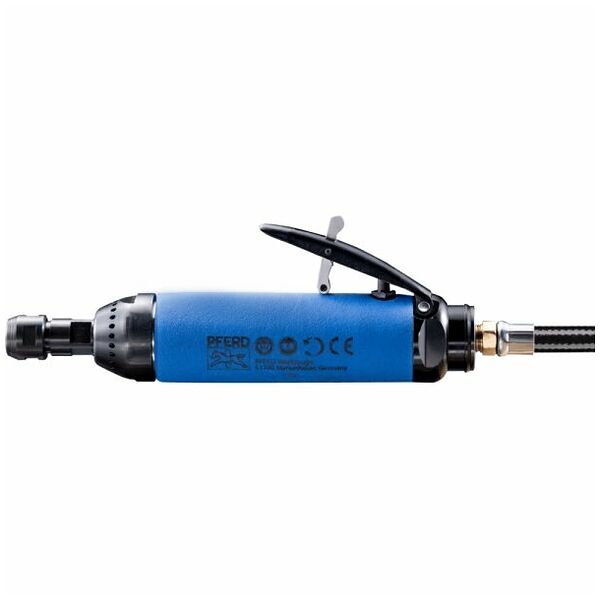

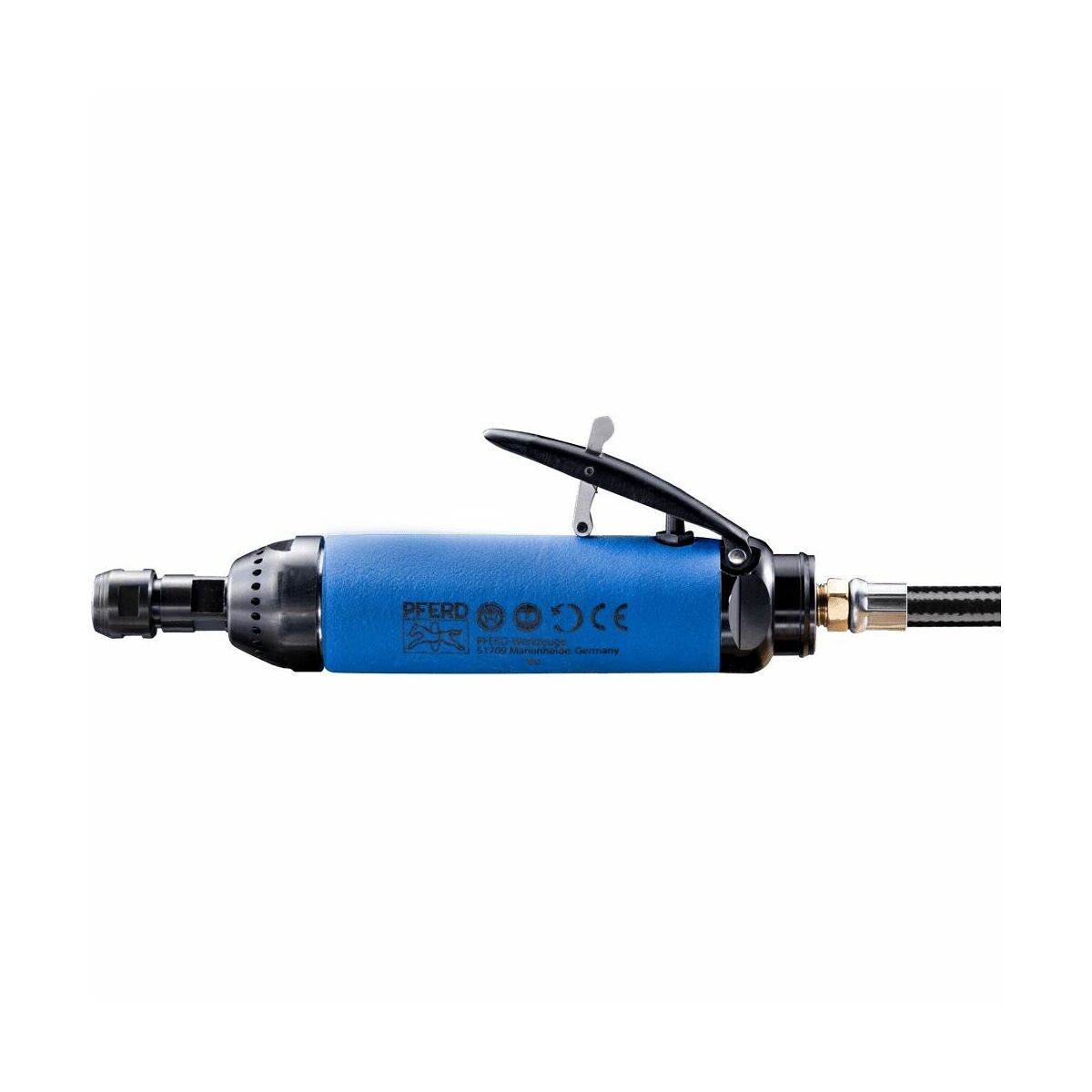

PFERD TOOLS Air-powered straight grinder PGS 6/250 HV 25,000 RPM/650 watts
Article no.: 4007220430507
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 4007220430507 | |
| EAN / GTIN | 4007220430507 | |
| Manufacturer number | 80107082 | |
| L-Number | L51700 101417 | |
| Manufacturer/responsible person | August Rueggeberg GmbH & Co. KG, Hauptstraße 13, 51709 MARIENHEIDE, Germany, www.pferd.com |
Description
Version:
- Without extension
Description:
- The drive is equipped with a collet tool holder for shank tools.
- The exhaust air duct is located at the front.
- The handy compressed air drive must be operated with oil.
- 2 m air supply hose with 1/4” external threaded connection and threaded plug-in nozzle (STGI), 6 mm collet chuck, 2 spanners.
- The actuator has a dead man’s control due to the lever valve.
Feature:
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 25000 RPM
- Collet group: 7
- Valve design: Lever
- Version: without extension
- Width metric: 41 mm
- Air consumption, idle: 0.95 m³/min
- Air consumption, under load: 0.71 m³/min
- Incl. Ø collet [mm]: 6 mm
- Length metric: 218 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 0.75 kg
- Inner diameter of supply air hose: 8 mm
- Exhaust air outlet: front
- Height: 41 mm
Advantage:
- Safe working due to dead man’s handle.
- Thanks to its exhaust air routing to the front, it can blow away the removed dirt at the front during use.
Note:
- The drive must be operated with the specified oil drip rate to prevent premature failure.
