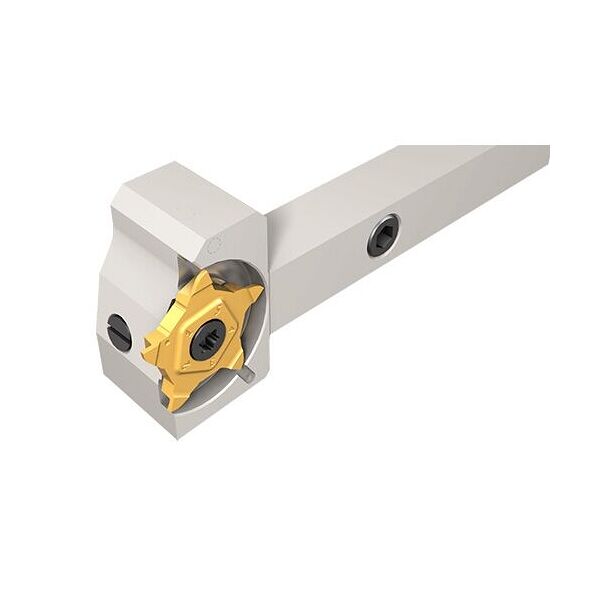

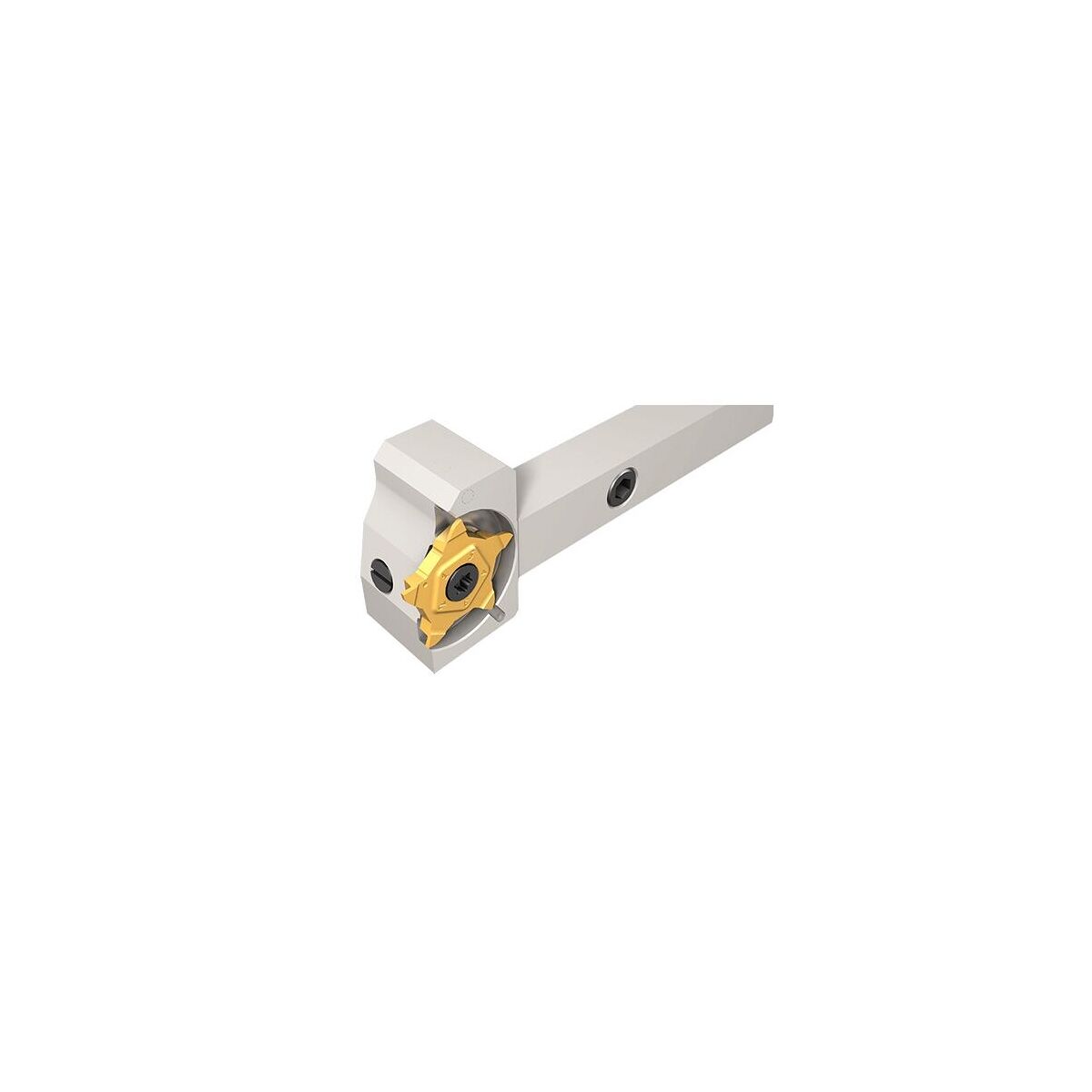

PCHRS 20-24 JHP-MC-QC Holders with PENTA-CUT Inserts for Grooving and Parting Next to High Shoulders, Enables Quick Cutting Edge Indexing
Article no.: 3457482
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 3457482 | |
| EAN / GTIN | 7291075598346 | |
| Manufacturer number | 3457482 |
Description
Description:
Parting Off Indexable Holders, Cutting Depth Maximum (CDX) 6.2 mm, Cutting Width Maximum (CWX) 3.18 mm, Cutting Width Minimum (CWN) 0.8 mm, Overall Height (OAH) 32.4 mm, Overall Length (OAL) 93.5 mm
Feature:
- Coolant Entry Thread Size (CNT): G1/8
- Cutting Depth Maximum (CDX): 6.2 mm
- Cutting Direction (HAND): Right Hand
- Cutting Width Maximum (CWX): 3.18 mm
- Cutting Width Minimum (CWN): 0.8 mm
- Head Length (LH): 23.5 mm
- Overall Height (OAH): 32.4 mm
- Overall Length (OAL): 93.5 mm
- Shank Height (H): 20 mm
- Shank Width (B): 20 mm
- Tool Assembly Length (LTA): 34 mm
