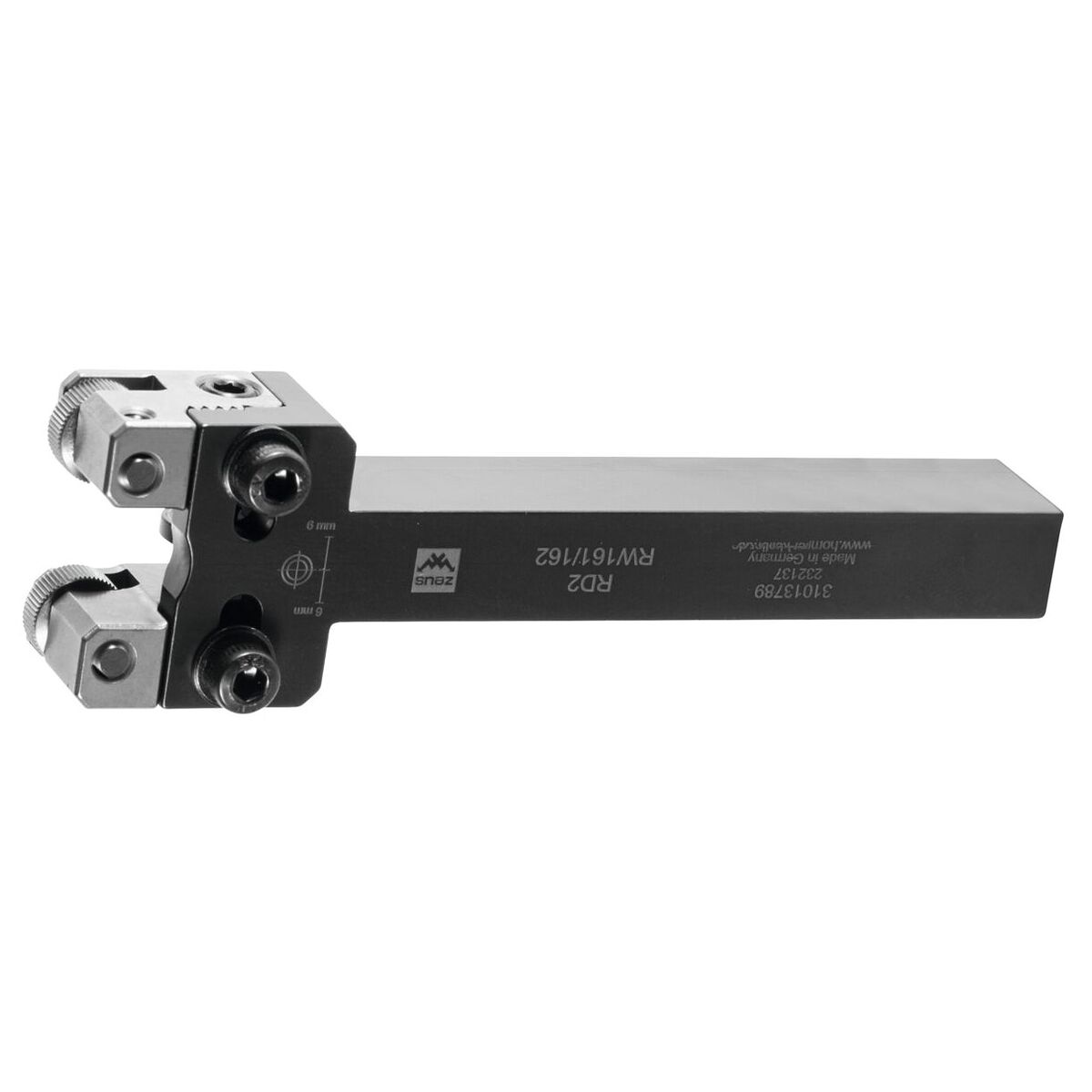

Knurl forming tool Sliding headstock lathe universal, Shank size: 10mm
Article no.: 290015 10
Article code:
- Cutting direction: left-hand and right-hand
- for knurl profile: RAA 2×AA; RBL 2×BR; RBR 2×BL; RAA 1×AA; RGE45° BL/BR45°
Product details
Technical Data
| Cutting direction | left-hand and right-hand | |
| for knurl profile | RAA 2×AA; RBL 2×BR; RBR 2×BL; RAA 1×AA; RGE45° BL/BR45° | |
| for knurl ⌀ d1 | 10 mm | |
| for knurl width w | 4 mm | |
| for knurl bore ⌀ d2 | 4 mm | |
| Working range | 0 mm - 12.5 mm | |
| Type of product | Self-centring knurling tool |
Identification & Classification
| Article number | 290015 10 | |
| Manufacturer/responsible person | Hommel + Keller Präzisionswerkzeuge GmbH, Nagelsee 6, 78554 ALDINGEN, Germany, www.hommel-keller.de |
Description
Version:
Grub screw in the shank for clearance angle correction.
Carbide roller pin for increased wear resistance.
Modular design: Can be used universally as right-hand or left-hand version.
Carbide roller pin for increased wear resistance.
Modular design: Can be used universally as right-hand or left-hand version.
- Minimal pressure reduces stress on the workpiece and machine.
- Synchronising spindle for easy adjustment of knurl carriers and centre heights.
