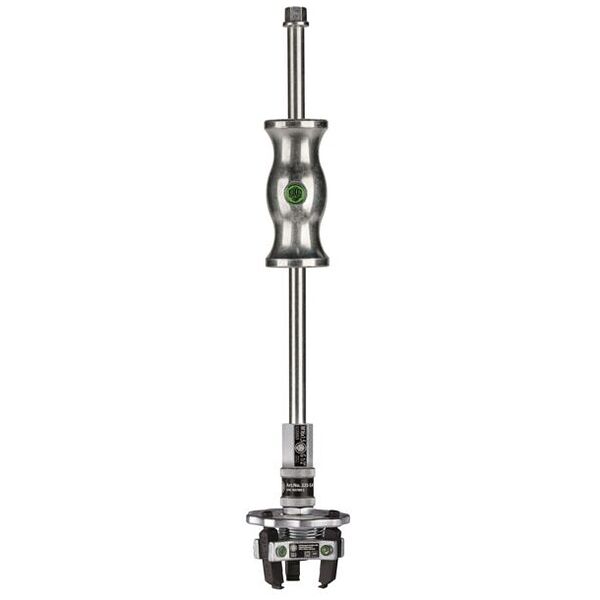

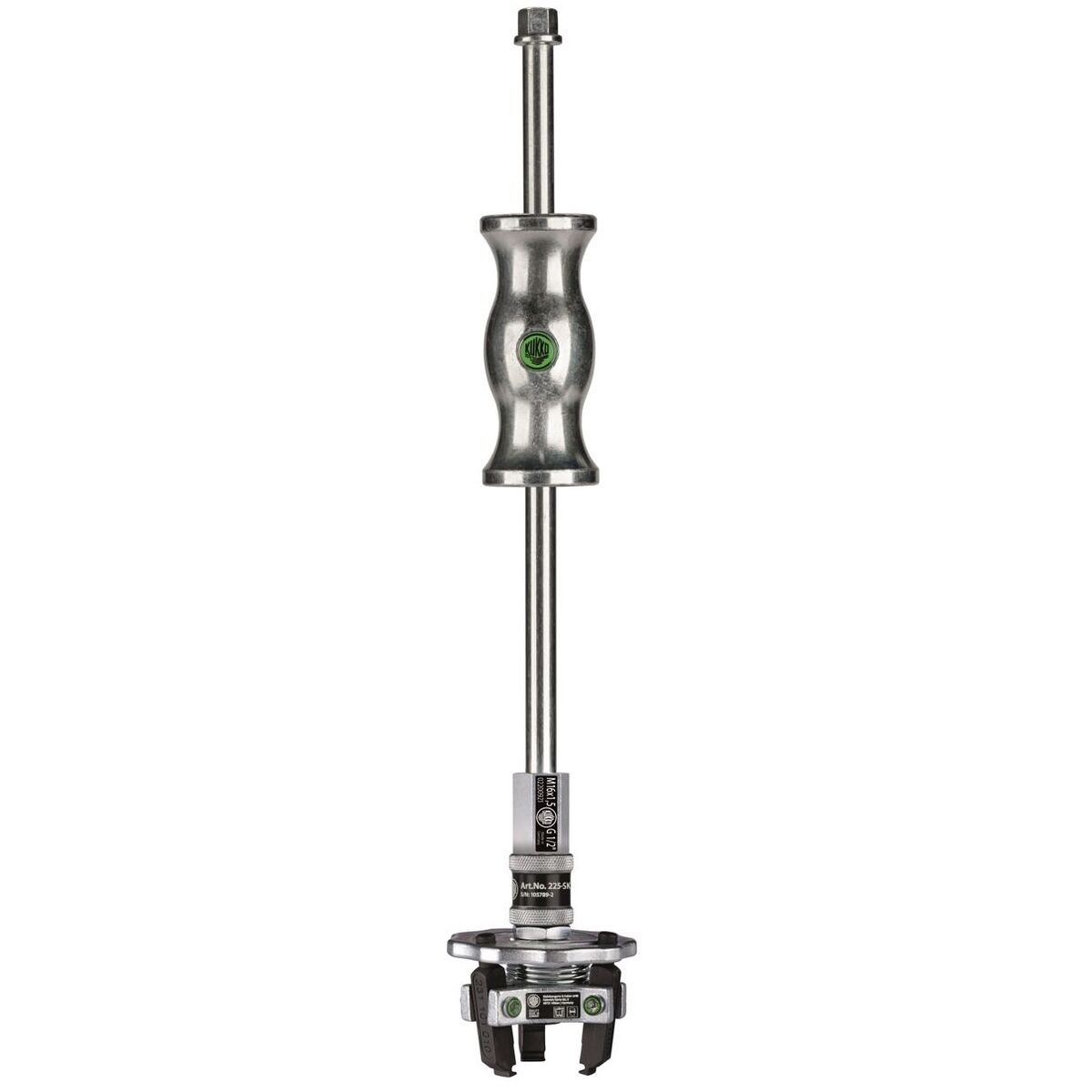

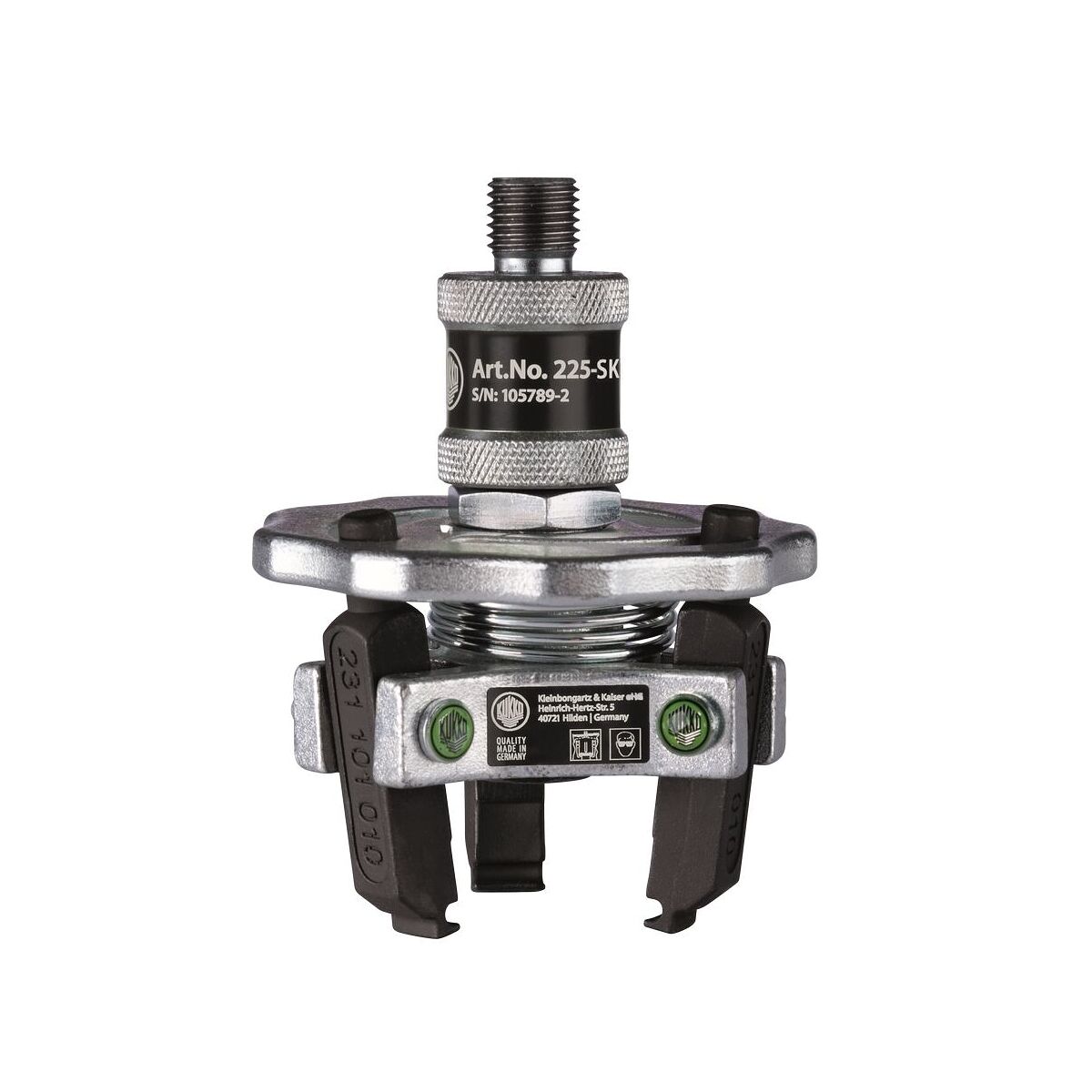

3-jaw puller with self-centering jaws, up to 65 mm spread, 24 mm reach
Article no.: 225-SK
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 225-SK | |
| EAN / GTIN | 4021176324215 | |
| Manufacturer number | 225-SK | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Description:

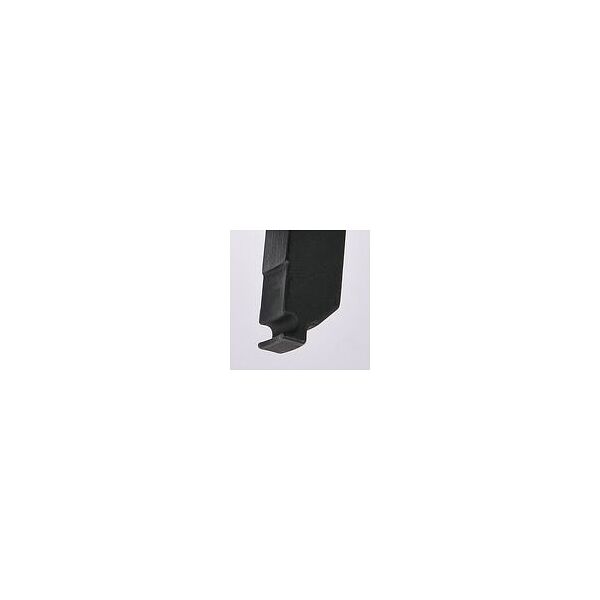

- The 3-jaw puller with self-centering jaws is used for the safe and damage-free removal of pushed-on hub caps, wheel covers, as well as dust and grease caps. The specially shaped jaws are connected with a spring, providing a self-tensioning effect and preventing possible slipping during the pulling process. Thanks to the quick-release mechanism, the jaws can be quickly attached to the part to be removed. The narrow jaws ensure that even tight and hard-to-reach spaces can be accessed. The 3-jaw design guarantees an even load distribution, providing particularly secure hold on the part to be removed.
- The spring ensures self-tensioning of the jaws.
- The dowel pins ensure a quick replacement of the jaws.
Feature:
- Material: tool steel
- Total width [mm]: 90 mm
- Total width [inch]: 3 9/16
- Total depth [mm]: 90 mm
- Total depth [inch]: 3 9/16
- Total height [mm]: 116 mm
- Total height [inch]: 4 9/16
- Thread dimension: other
- Span outside pull-off (max.) [inch]: 2 9/16
- Span outside pull-off (max.) [mm]: 65 mm
- Clamping depth, external puller [mm]: 24 mm
- Clamping depth external puller [inch]: 15/16
- Hook root thickness at the tip (claw thickness K) [mm]: 1,2 mm
- Hook root thickness at the tip (claw thickness K) [inch]: 1/16
- Hook base width (claw width J) [mm]: 12 mm
- Hook base width (claw width J) [inch]: 1/2
- Hook base depth usable (claw depth usable O) [mm]: 3 mm
- Hook root depth usable (claw depth usable O) [inch]: 1/8
- Total hook root depth (total claw depth H) [mm]: 12 mm
- Total hook root depth (total claw depth H) [inch]: 1/2
- Total thickness of claws (L+1mm) [mm]: (distance of claws to base): 2 mm
- Total thickness of claws (L+1mm) [inch]: (distance of claws to base): 1/16
- Reversible puller hooks: No
- Quick adjustment available: No
- Clamping bracket: No
- Spare parts available: Yes
- Separation diameter (min. - max.) [mm]: 65 mm
- Can be sold worldwide: Yes (REACH, RoHS, POP, PROP65, TSCA)
