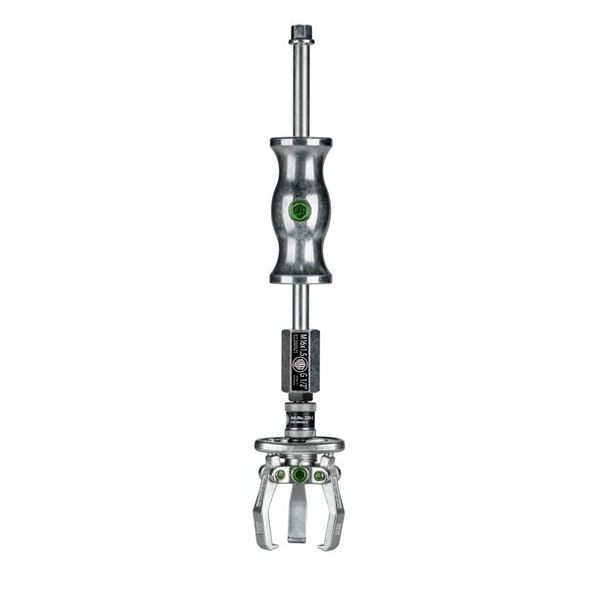

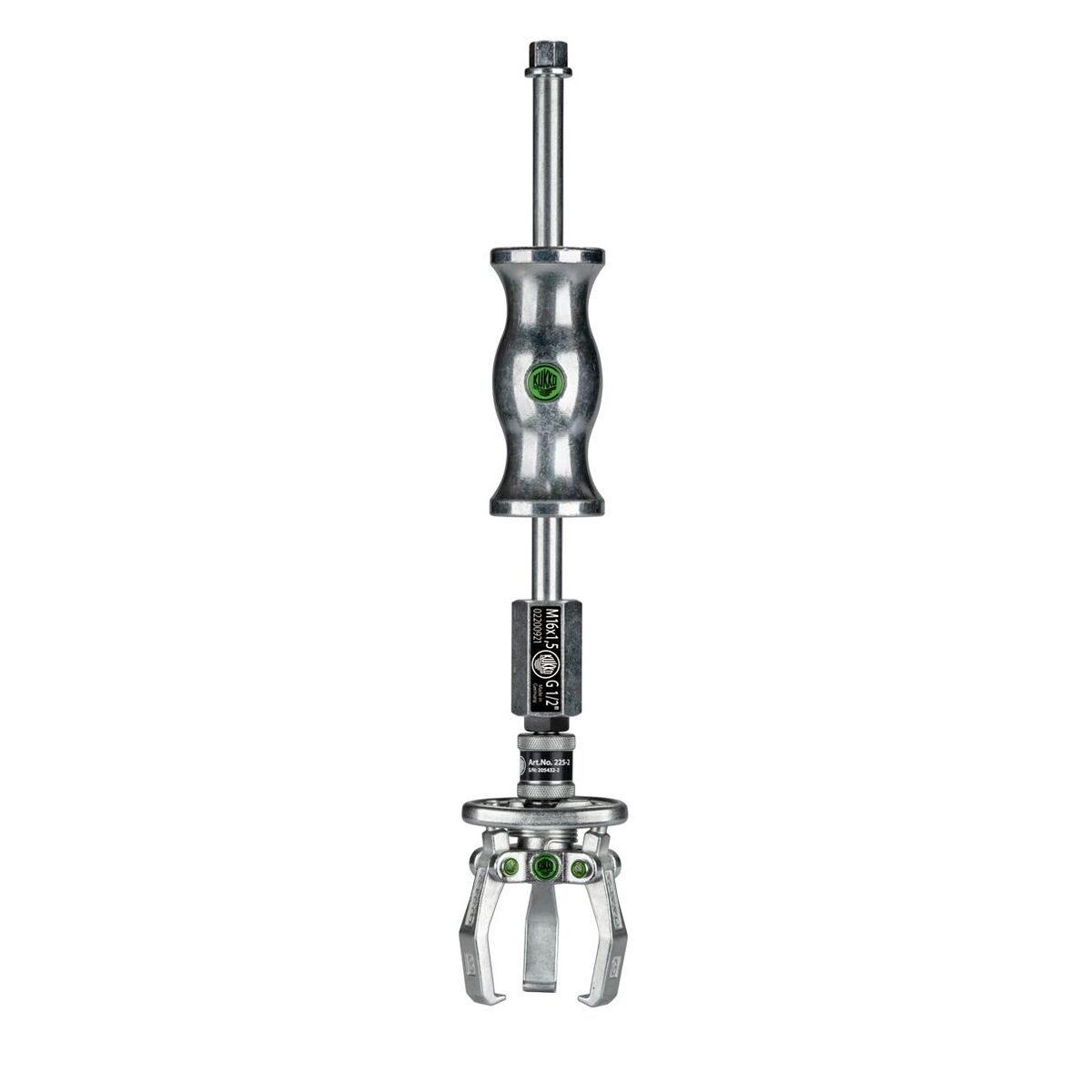

3-jaw puller with self-centering jaws, sliding hammer, up to 70 mm spread, 35 mm reach
Article no.: 225-3-G
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 225-3-G | |
| EAN / GTIN | 4021176080067 | |
| Manufacturer number | 225-3-G | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Description:

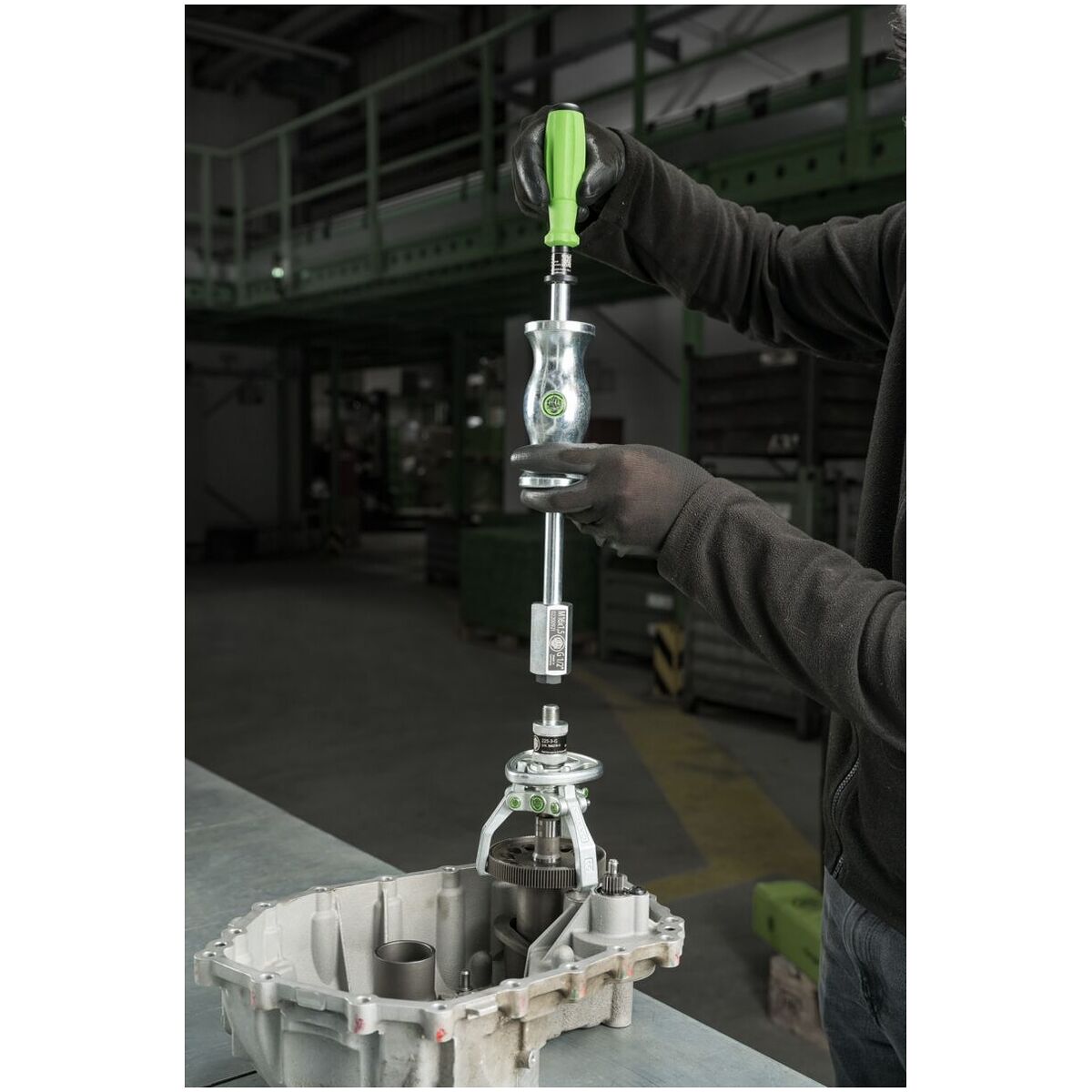

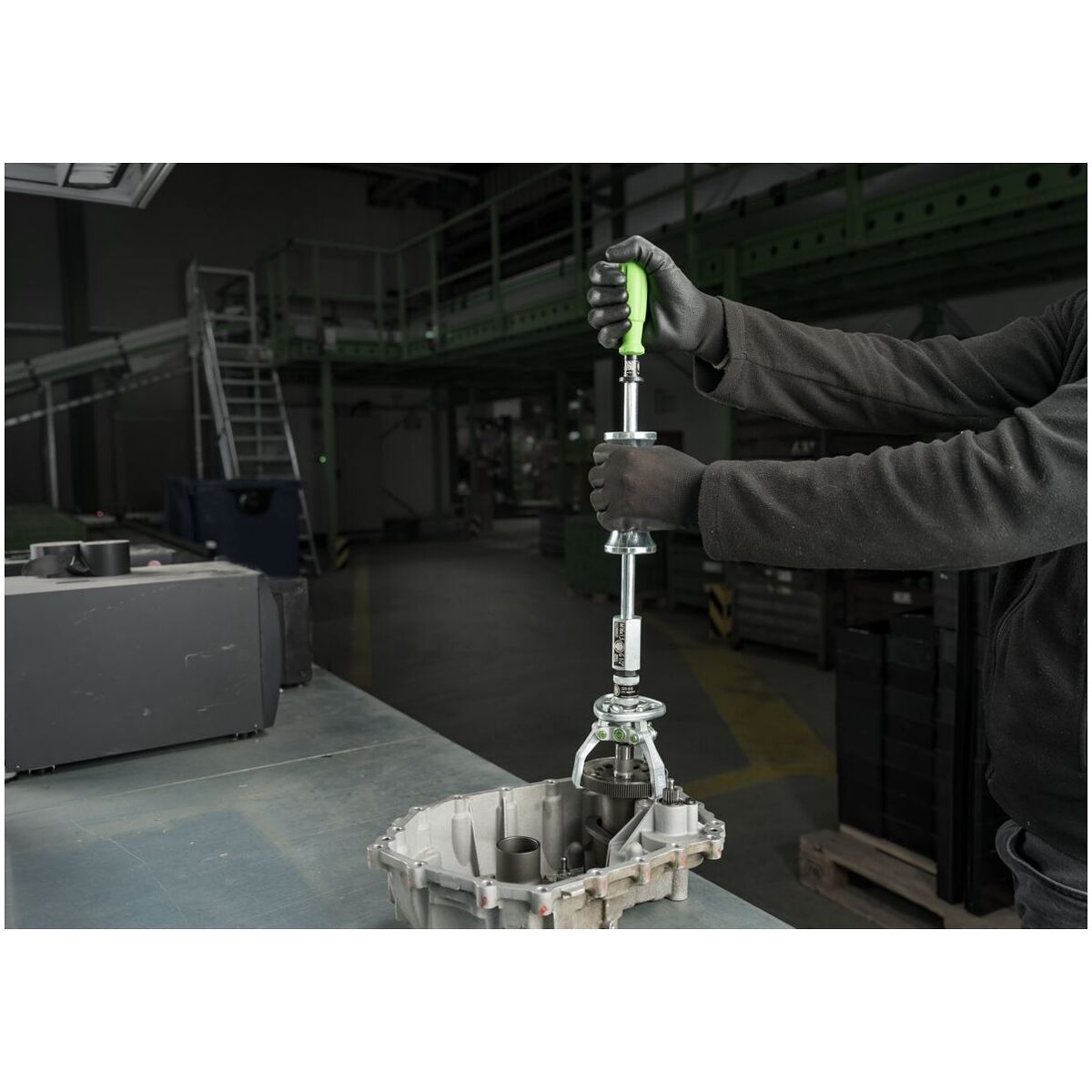

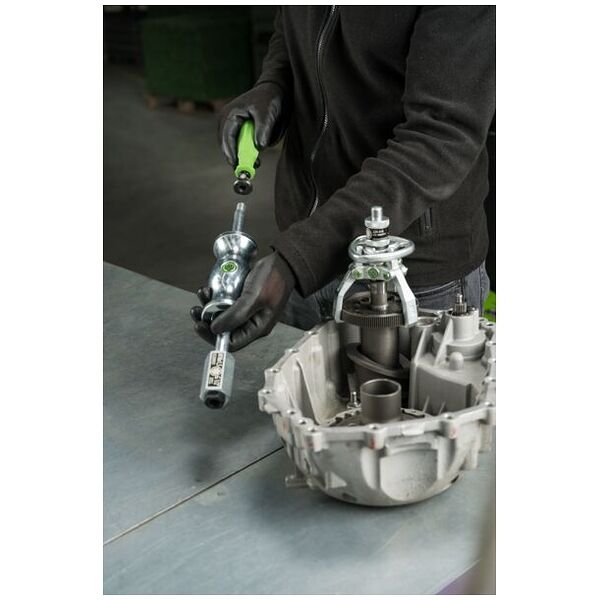

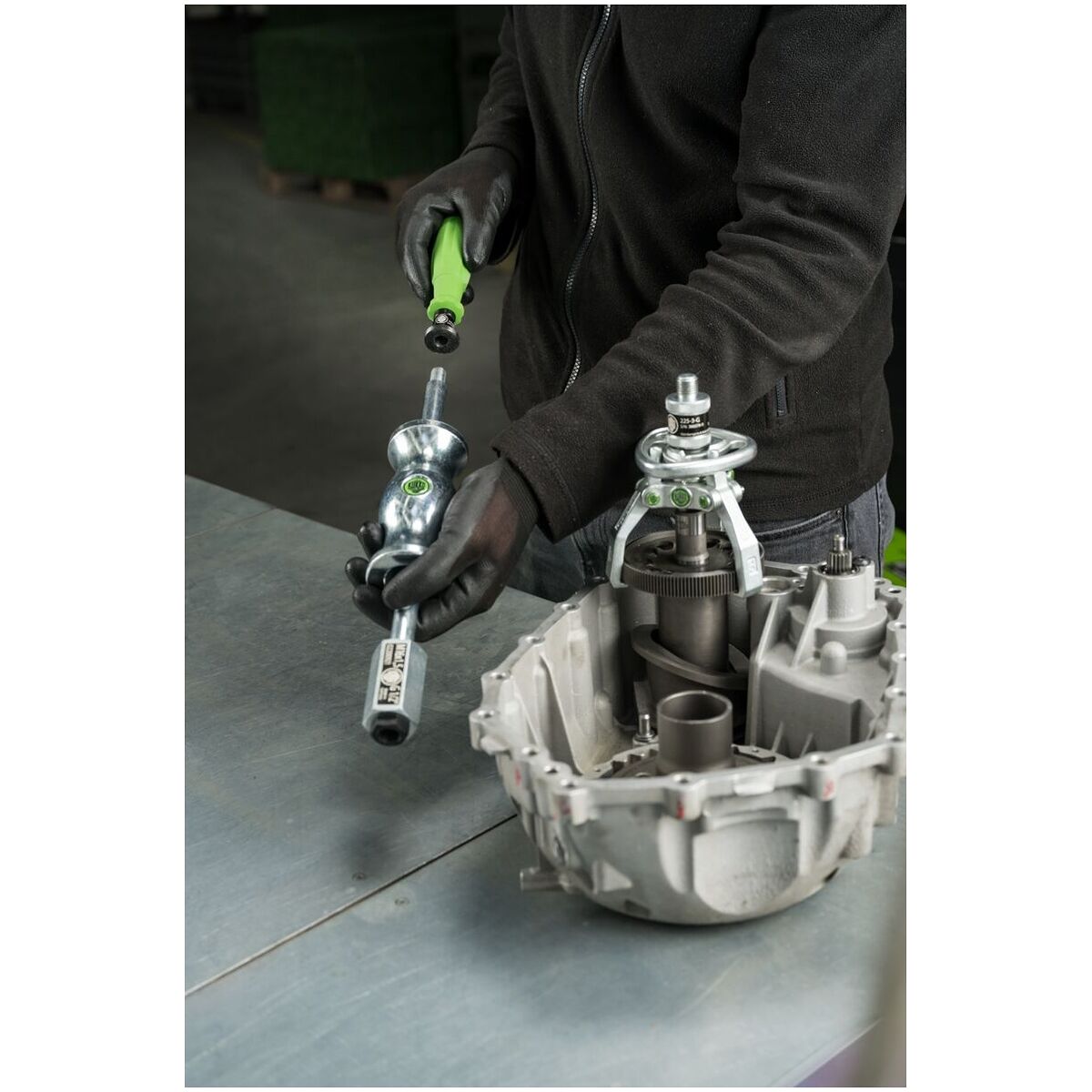

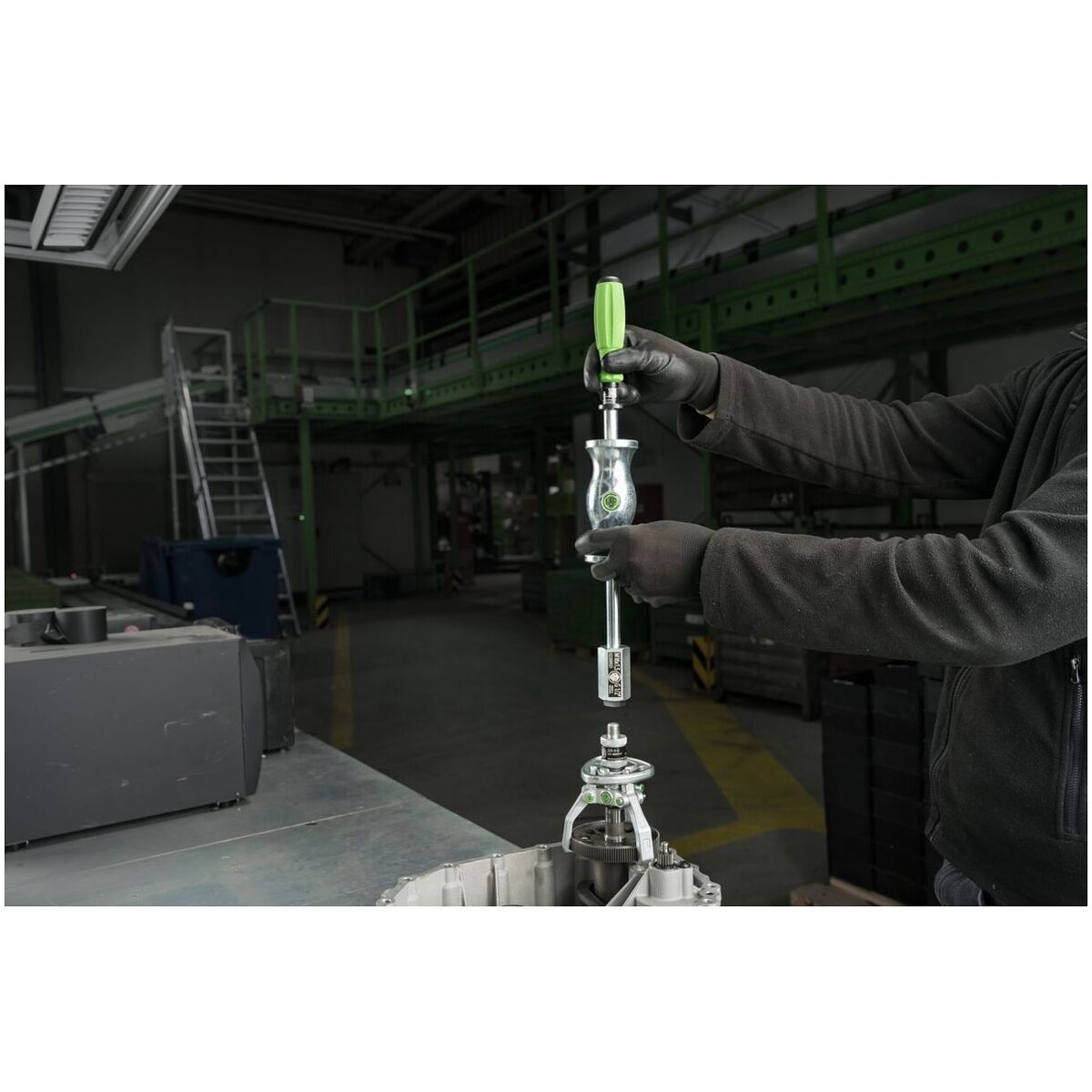

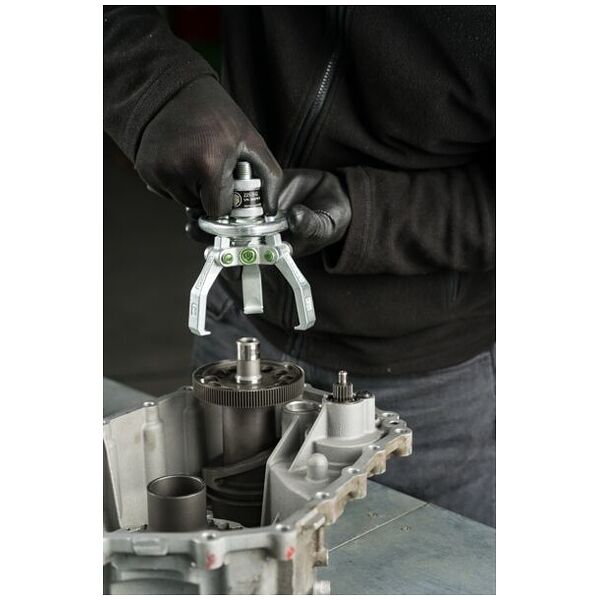

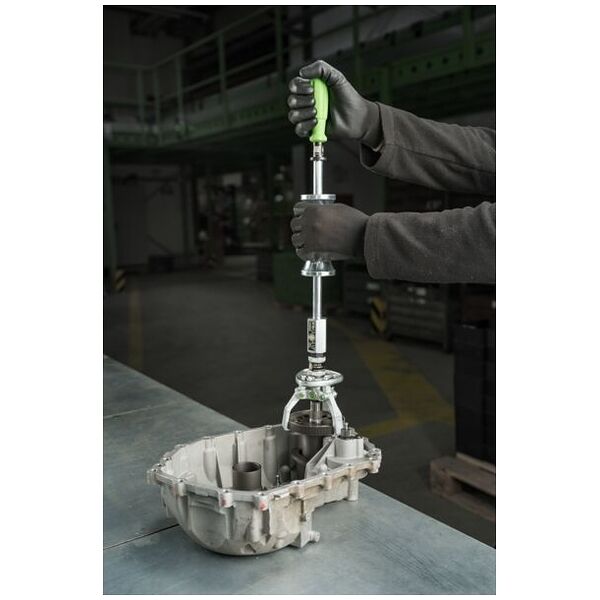

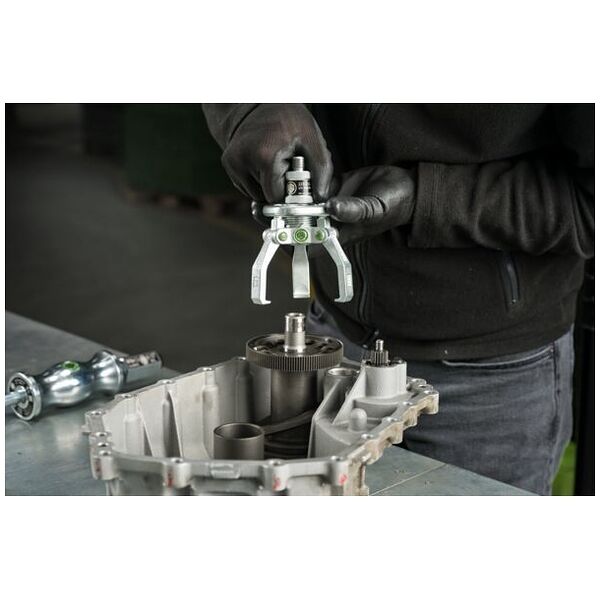

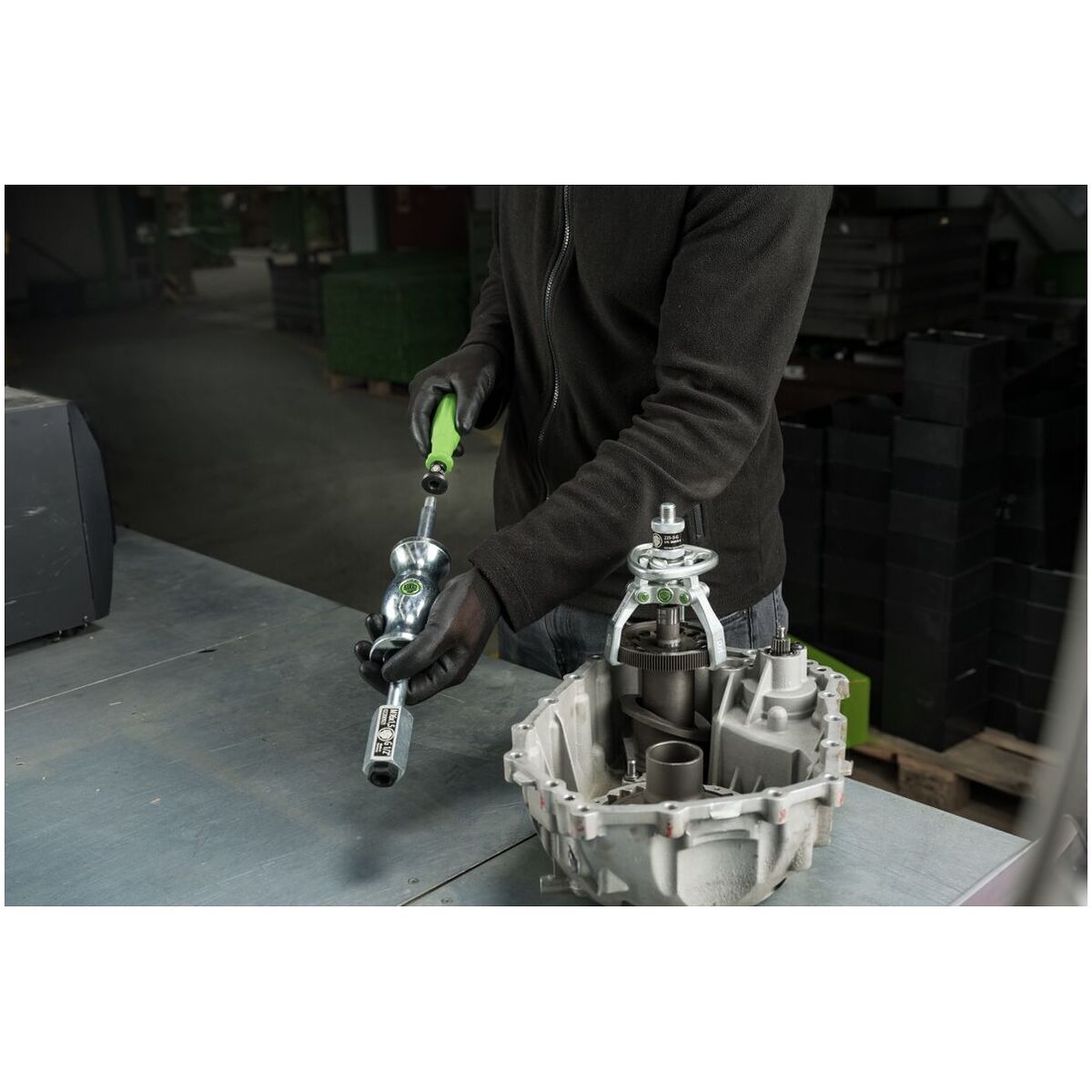

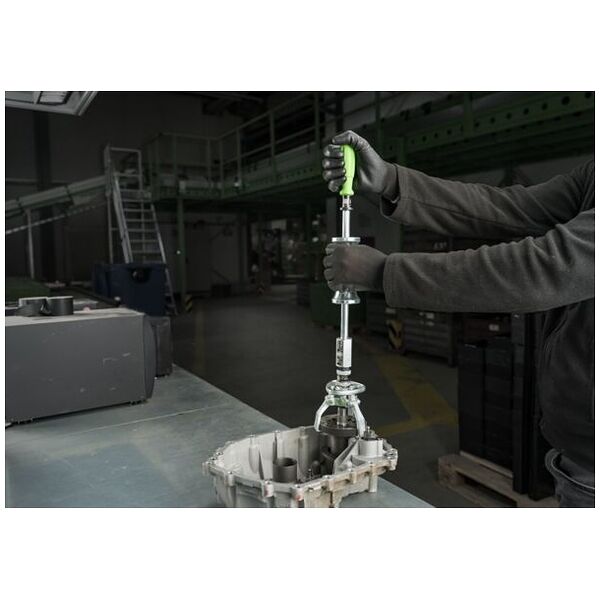

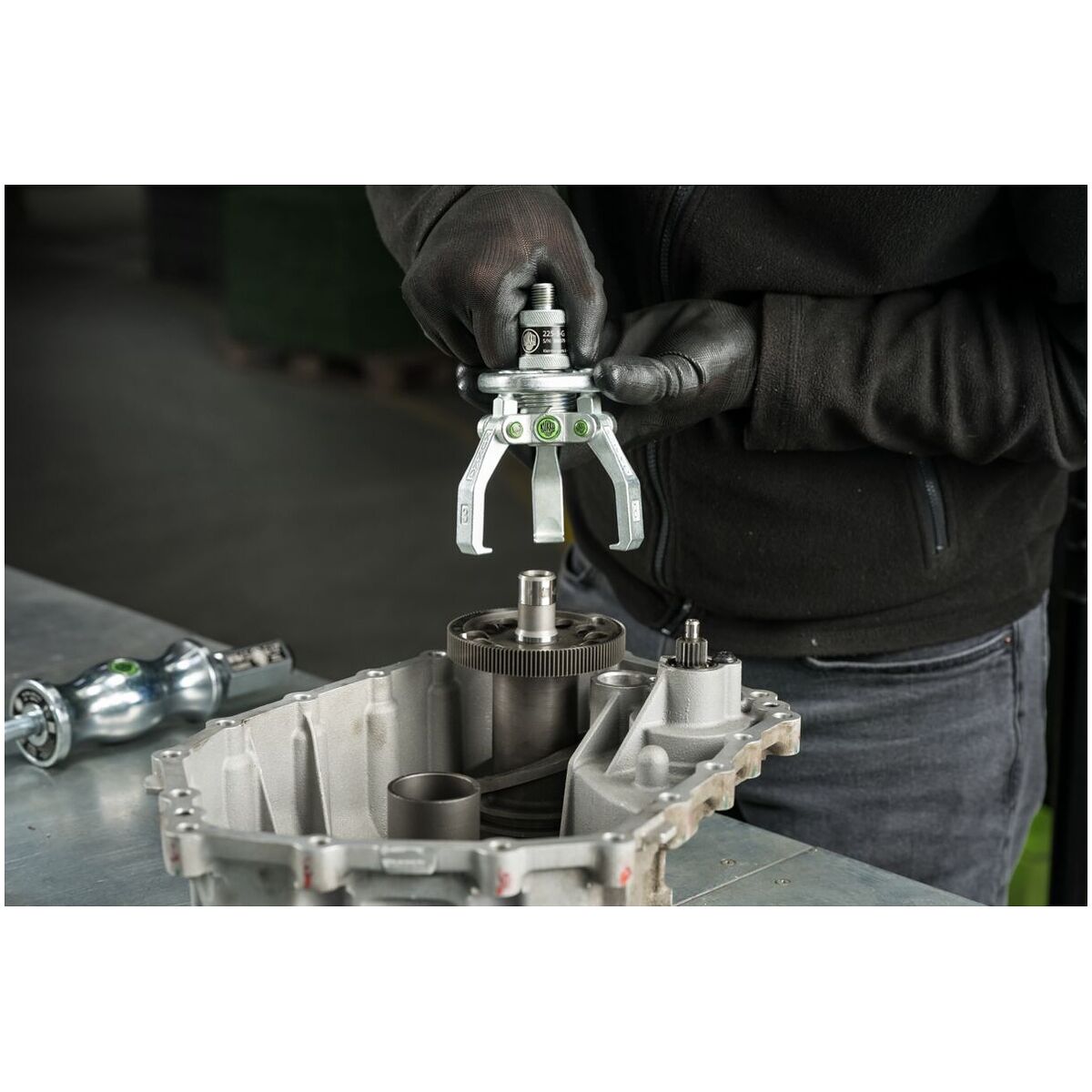

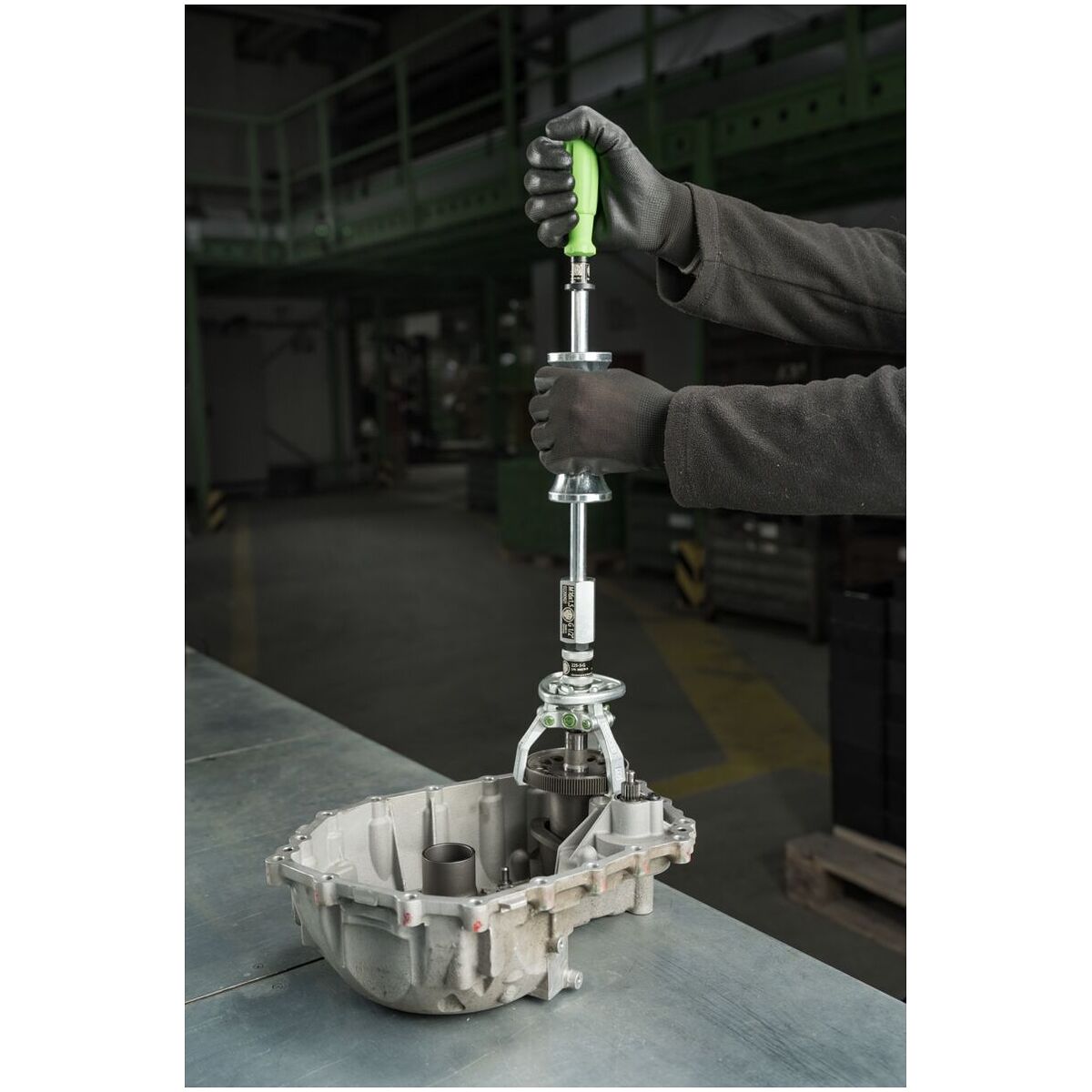

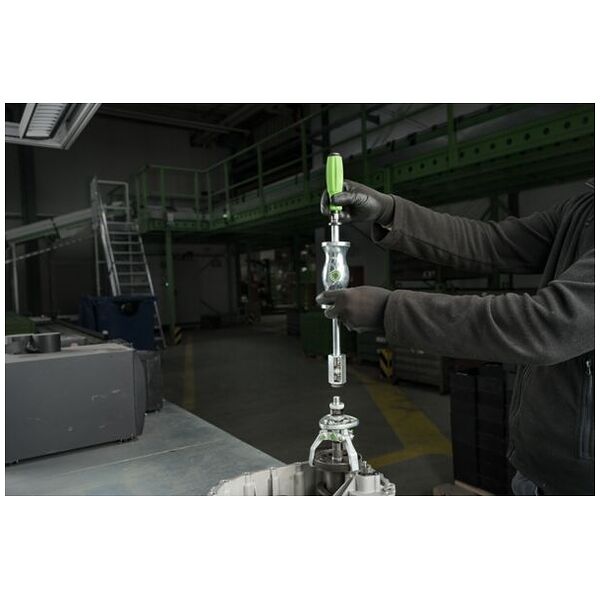

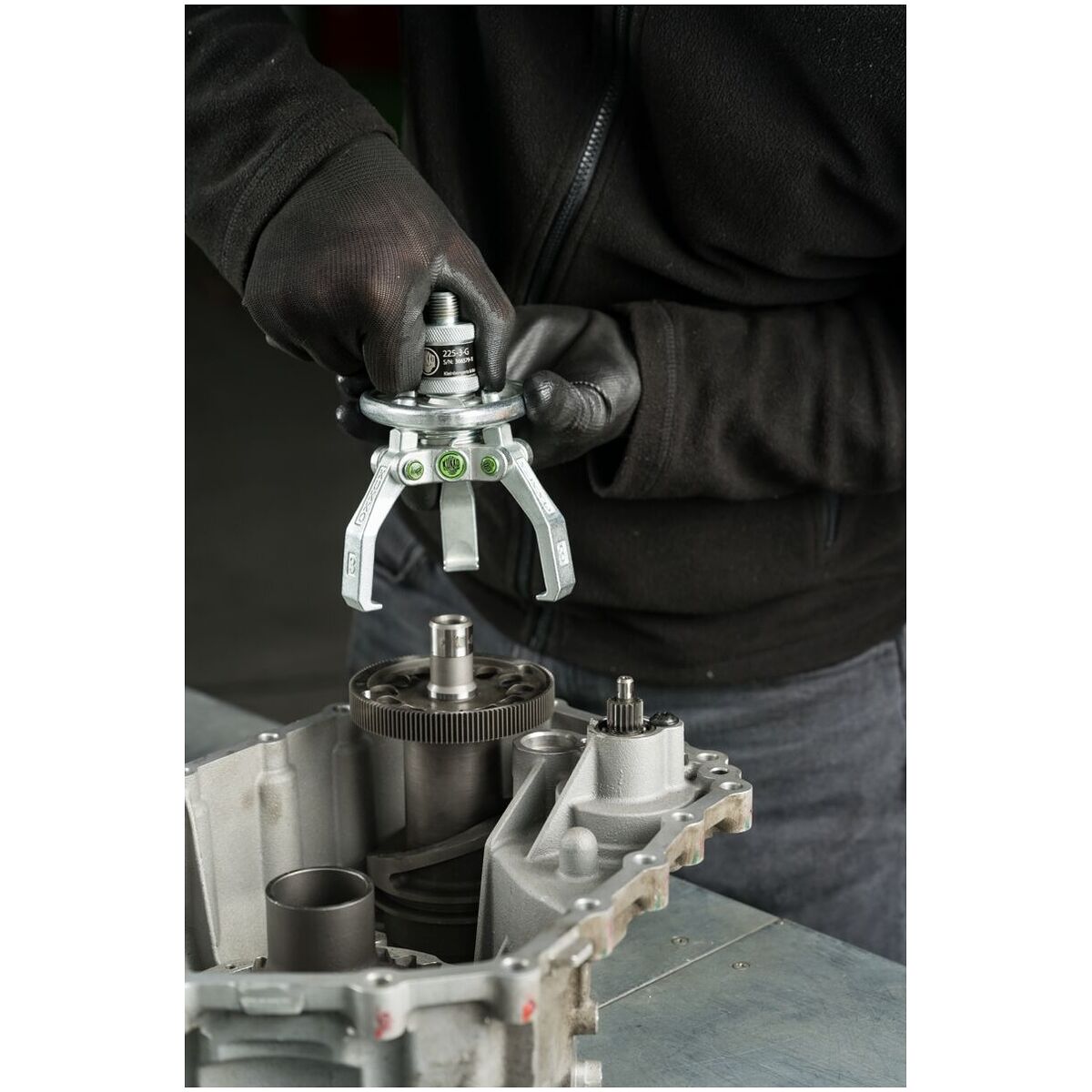

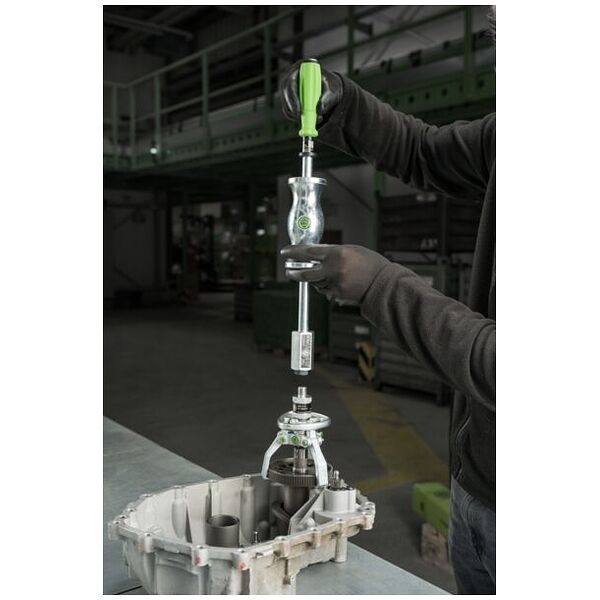

- The 3-jaw puller with self-centering jaws and sliding hammer is used for pulling bearings, gears, and discs. The sliding hammer ensures space-saving and at the same time material-friendly extraction. This allows you to loosen any component that sits on a shaft and is freely accessible from the outside. The specially shaped jaws are connected by a spring. This provides a self-tensioning of the jaws and prevents possible slipping during the pulling process. Thanks to the quick release, the jaws can be quickly applied to the component to be pulled. The 3-jaw design guarantees an even load distribution and thus a particularly secure grip on the part to be pulled.
- The spring ensures self-tensioning of the puller jaws.
- Steckbolts ensure a quick exchange of the jaws.
Feature:
- Material: tool steel
- Total width [mm]: 86 mm
- Total width [inch]: 3 3/8
- Total depth [mm]: 86 mm
- Total depth [inch]: 3 3/8
- Total height [mm]: 150 mm
- Total height [inch]: 5 7/8
- Thread dimension: other
- Span outside pull-off (min.) [mm]: 38 mm
- Span outside pull-off (max.) [inch]: 2 3/4
- Span outside pull-off (min.) [inch]: 2
- Span outside pull-off (max.) [mm]: 70 mm
- Clamping depth, external puller [mm]: 35 mm
- Clamping depth external puller [inch]: 1 3/8
- Hook root thickness at the tip (claw thickness K) [mm]: 3 mm
- Hook root thickness at the tip (claw thickness K) [inch]: 1/8
- Hook base width (claw width J) [mm]: 18 mm
- Hook base width (claw width J) [inch]: 11/16
- Hook base depth usable (claw depth usable O) [mm]: 6 mm
- Hook root depth usable (claw depth usable O) [inch]: 1/4
- Total hook root depth (total claw depth H) [mm]: 14 mm
- Total hook root depth (total claw depth H) [inch]: 5/8
- Total thickness of claws (L+1mm) [mm]: (distance of claws to base): 4 mm
- Total thickness of claws (L+1mm) [inch]: (distance of claws to base): 3/16
- Max. tensile force [kN]: 60 kN
- Max. tractive force [t]: 6 t
- Max. pulling force [US t. sh.]: 6.61
- Reversible puller hooks: No
- Quick adjustment available: No
- Clamping bracket: No
- Spare parts available: No
- Impact distance [mm]: 250 mm
- Stroke [inch]: 9 13/16
- Impact mass [kg]: 1,7 kg
- Separation diameter (min. - max.) [mm]: 38 mm - 70 mm
- Length of the slide hammer [mm]: 370 mm
- Impact path: 14 9/16
- Can be sold worldwide: Yes (REACH, RoHS, POP, PROP65, TSCA)
