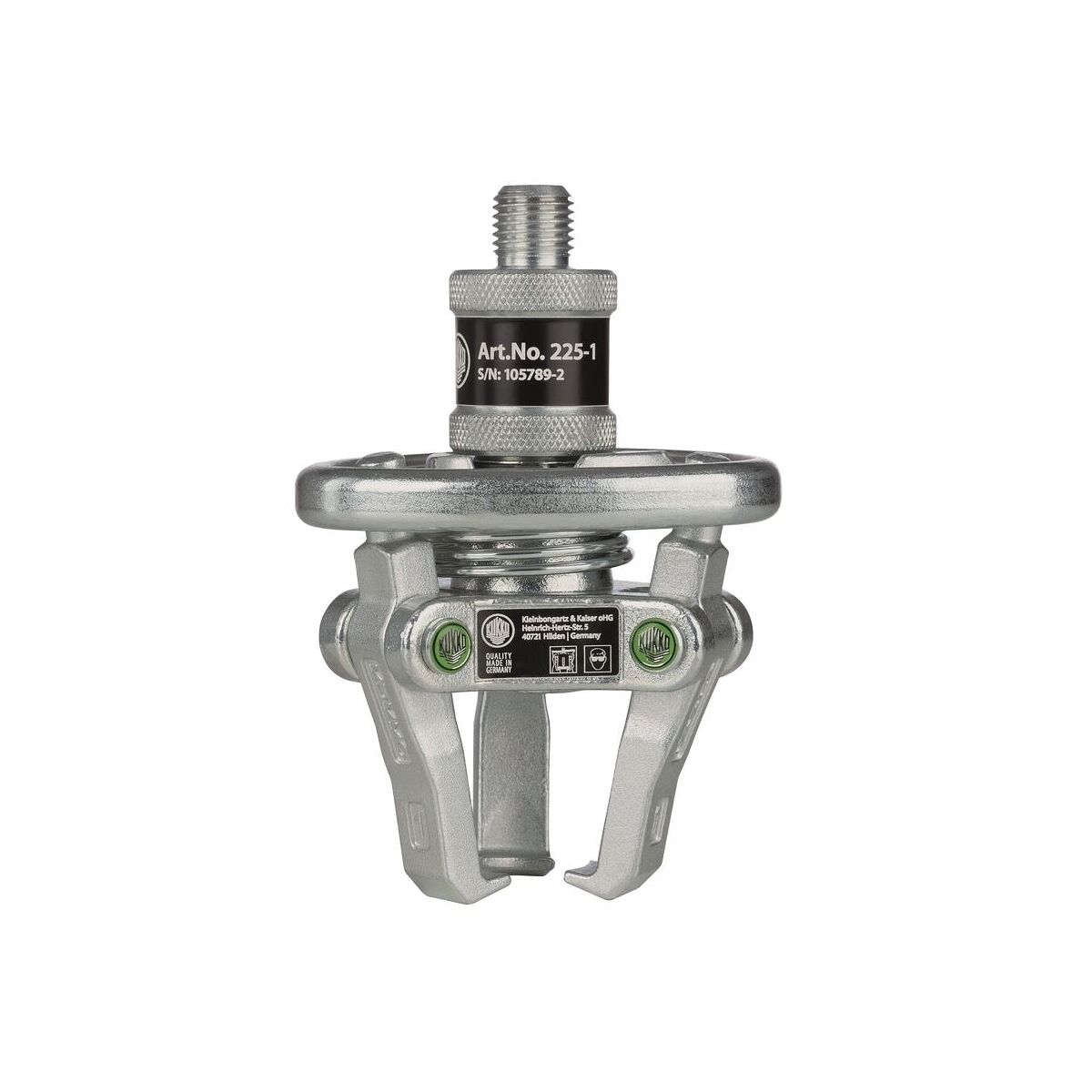

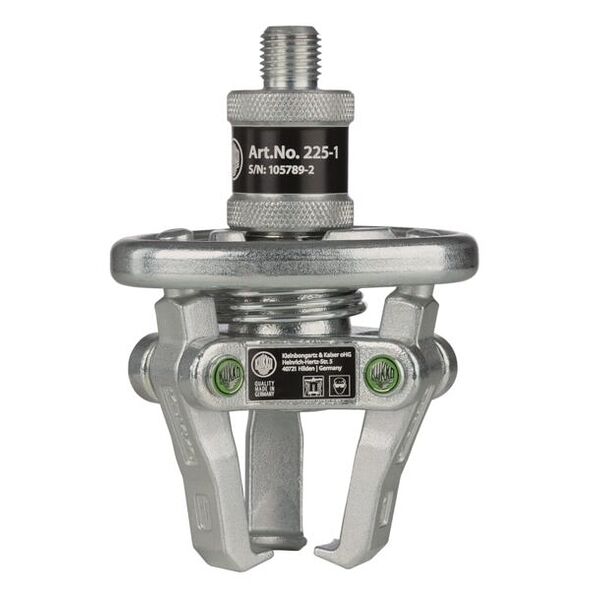

3-jaw puller with self-centering jaws, up to 50 mm spread, 35 mm reach
Article no.: 225-1
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 225-1 | |
| EAN / GTIN | 4021176123405 | |
| Manufacturer number | 225-1 | |
| L-Number | L80010 103785 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Description:

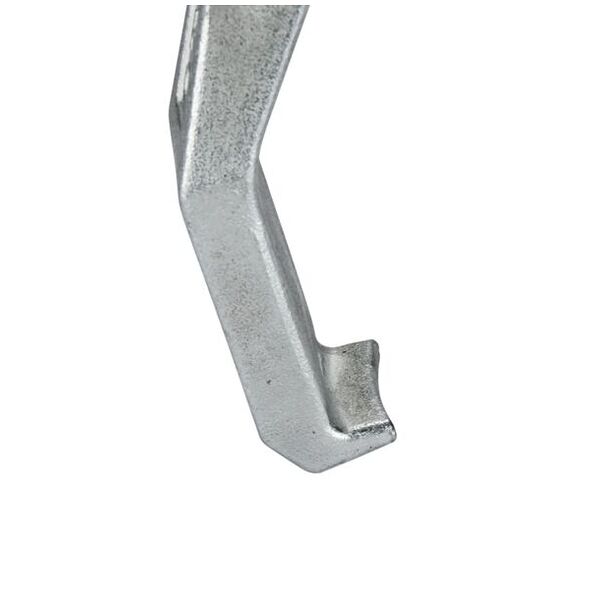

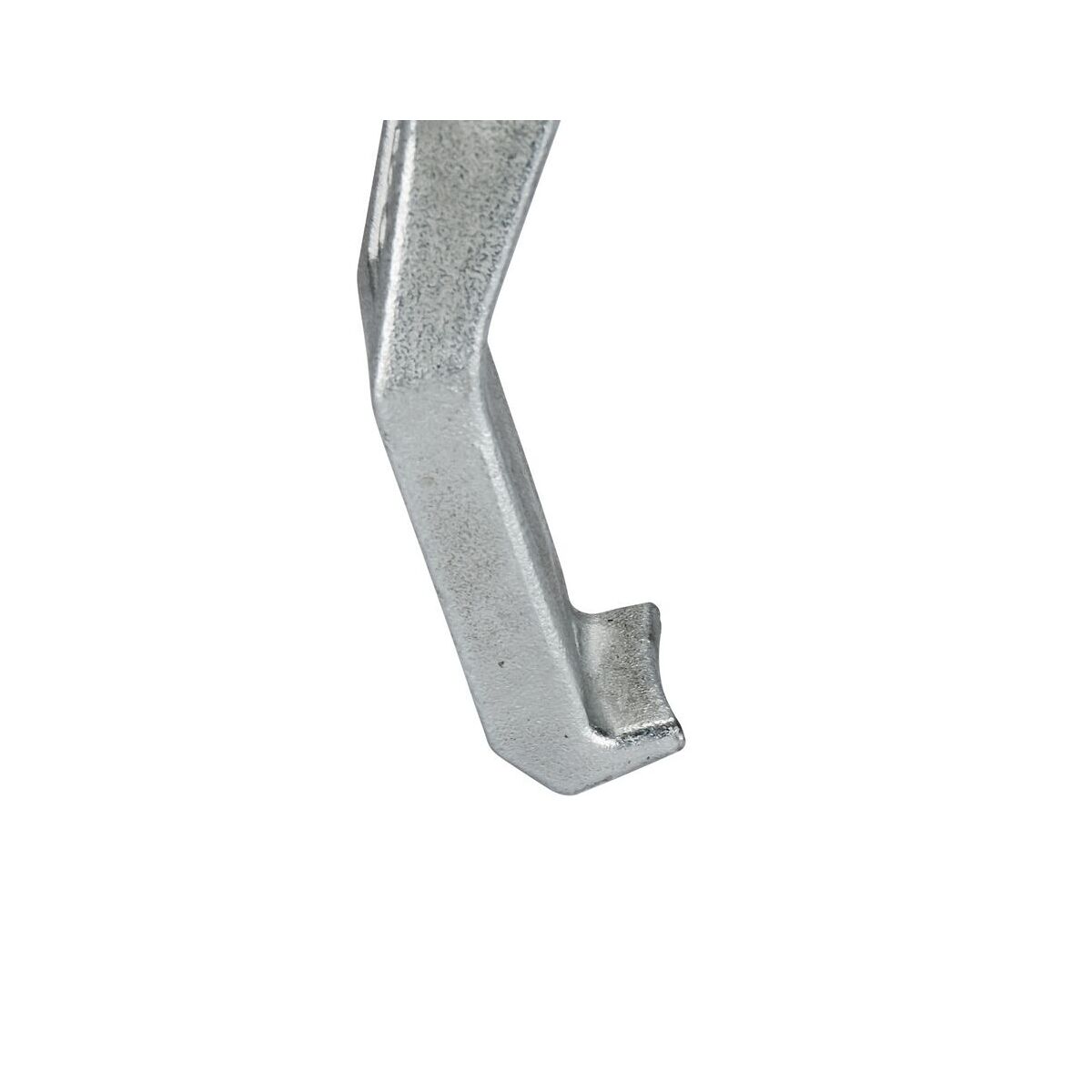

- The 3-jaw puller with self-centering jaws is used for extracting bearings, gears, and discs. It allows for the removal of any component that is mounted on a shaft and is freely accessible from the outside. The specially shaped jaws are connected to a spring. This ensures self-tensioning of the jaws and prevents possible slipping during the extraction process. Thanks to the quick-release mechanism, the jaws can be attached to the component to be pulled in no time. The 3-jaw design guarantees even load distribution and thus a particularly secure grip on the part being extracted.
- The spring ensures self-tensioning of the jaws.
- Steckbolts ensure a quick exchange of the jaws.
Feature:
- Material: tool steel
- Total width [mm]: 86 mm
- Total width [inch]: 3 3/8
- Total depth [mm]: 86 mm
- Total depth [inch]: 3 3/8
- Total height [mm]: 130 mm
- Total height [inch]: 5 1/8
- Thread dimension: other
- Span outside pull-off (min.) [mm]: 18,4 mm
- Span outside pull-off (max.) [inch]: 2
- Span outside pull-off (min.) [inch]: 1 3/16
- Span outside pull-off (max.) [mm]: 50 mm
- Clamping depth, external puller [mm]: 35 mm
- Clamping depth external puller [inch]: 1 3/8
- Hook root thickness at the tip (claw thickness K) [mm]: 2,3 mm
- Hook root thickness at the tip (claw thickness K) [inch]: 1/16
- Hook base width (claw width J) [mm]: 14 mm
- Hook base width (claw width J) [inch]: 9/16
- Hook base depth usable (claw depth usable O) [mm]: 5,8 mm
- Hook root depth usable (claw depth usable O) [inch]: 1/4
- Total hook root depth (total claw depth H) [mm]: 14 mm
- Total hook root depth (total claw depth H) [inch]: 5/8
- Total thickness of claws (L+1mm) [mm]: (distance of claws to base): 4 mm
- Total thickness of claws (L+1mm) [inch]: (distance of claws to base): 3/16
- Max. tensile force [kN]: 60 kN
- Max. tractive force [t]: 6 t
- Max. pulling force [US t. sh.]: 6.61
- Reversible puller hooks: No
- Quick adjustment available: No
- Clamping bracket: No
- Spare parts available: Yes
- Separation diameter (min. - max.) [mm]: 18,4 mm - 50 mm
- Can be sold worldwide: Yes (REACH, RoHS, POP, PROP65, TSCA)
