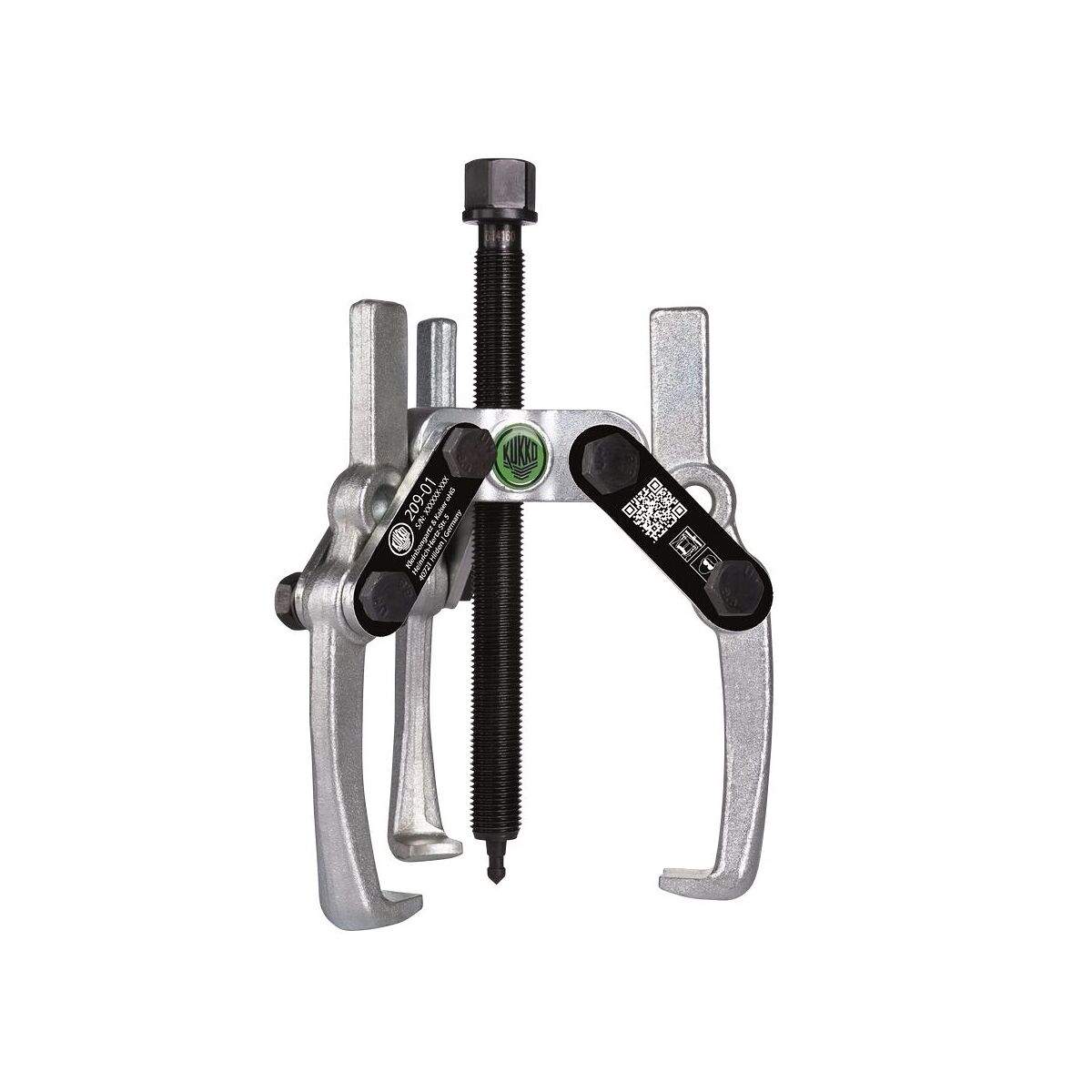

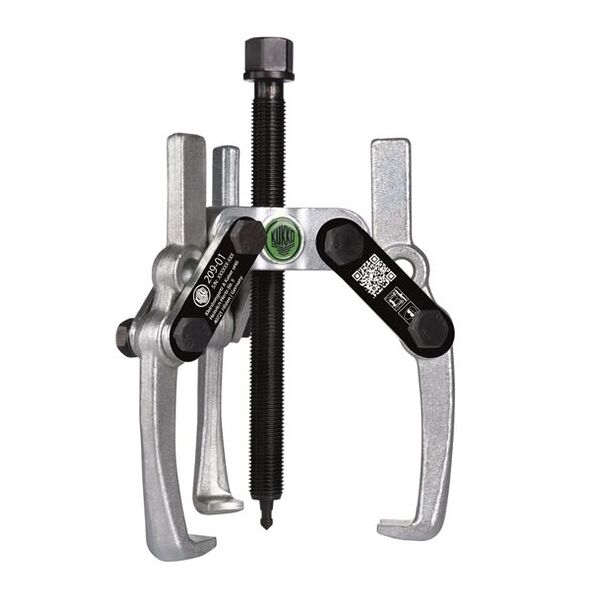

3-jaw tab puller ″Economy″ with oscillating, height-adjustable jaws, up to 170 mm spread, 95 mm reach
Article no.: 209-01
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 209-01 | |
| EAN / GTIN | 4021176432576 | |
| Manufacturer number | 209-01 | |
| L-Number | L80010 433 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Description:

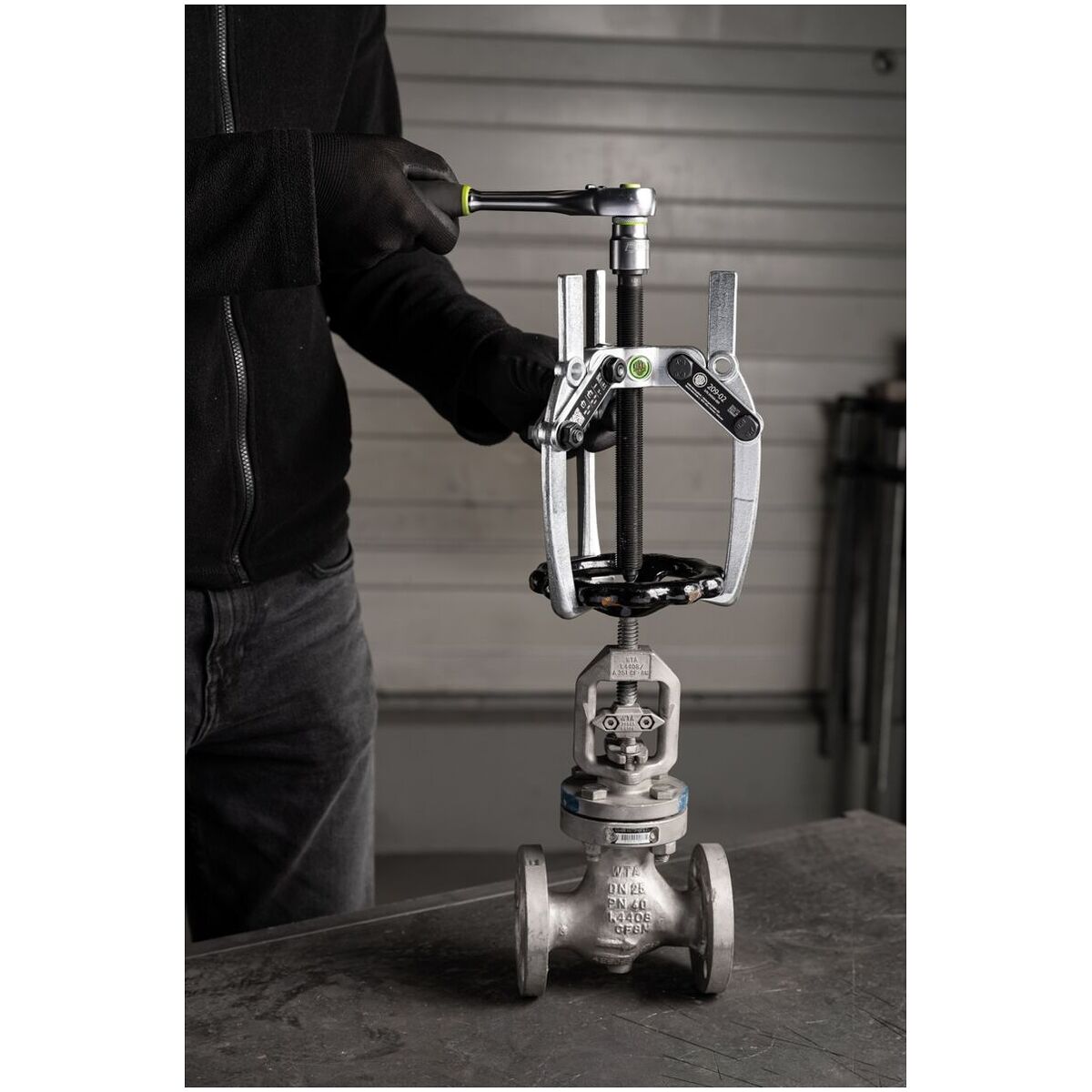

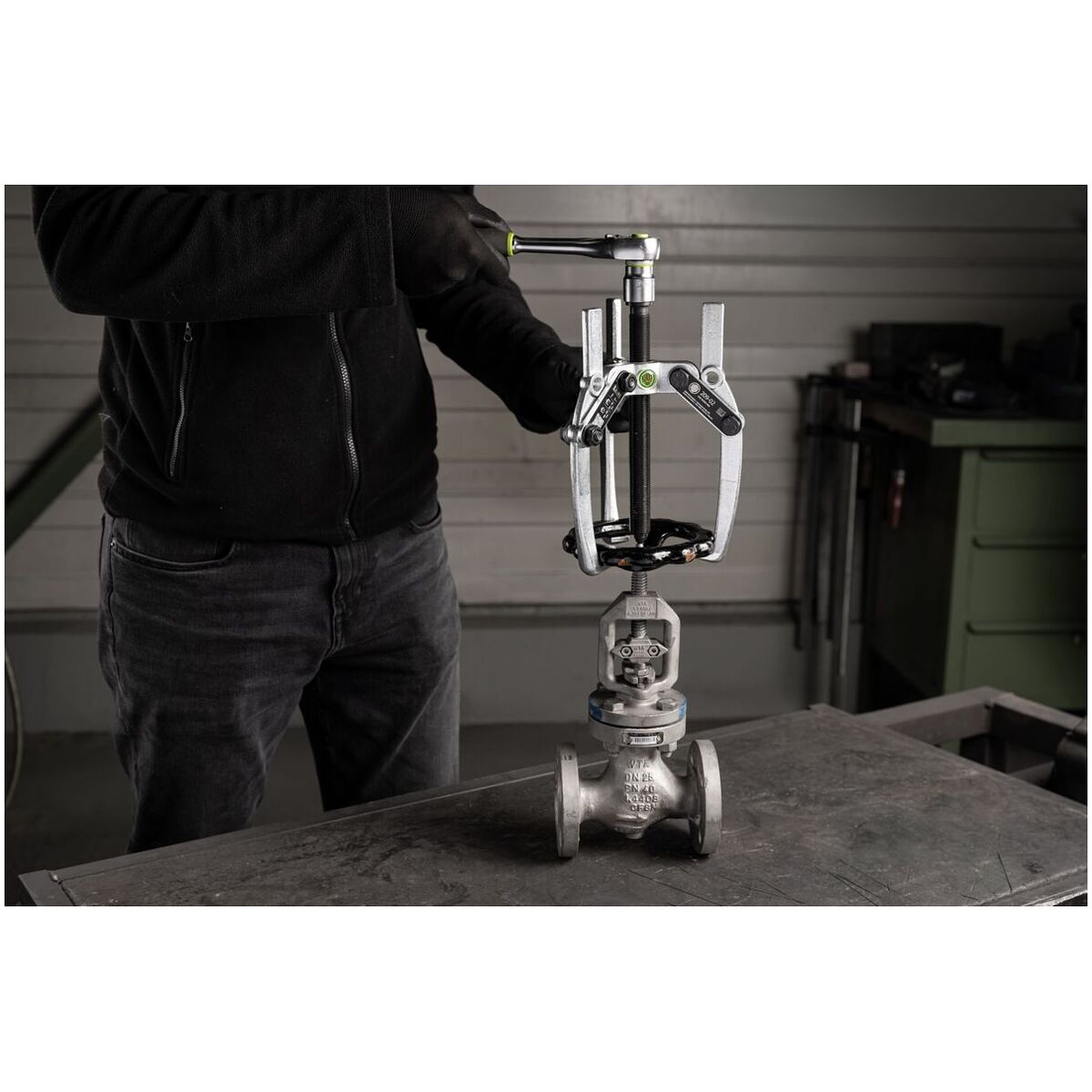

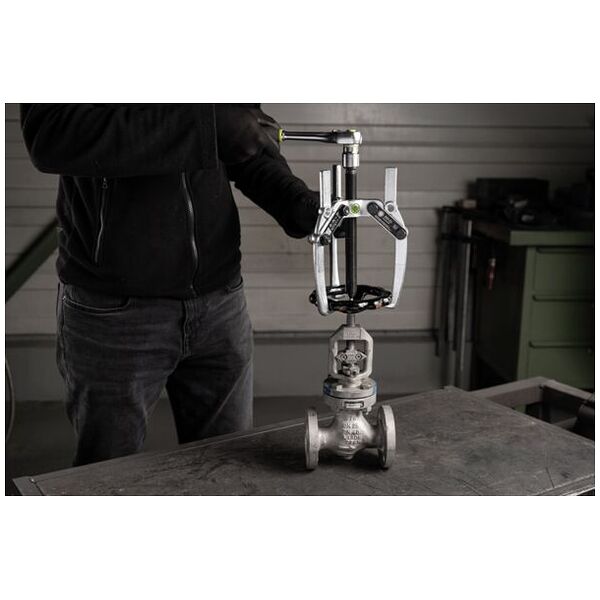

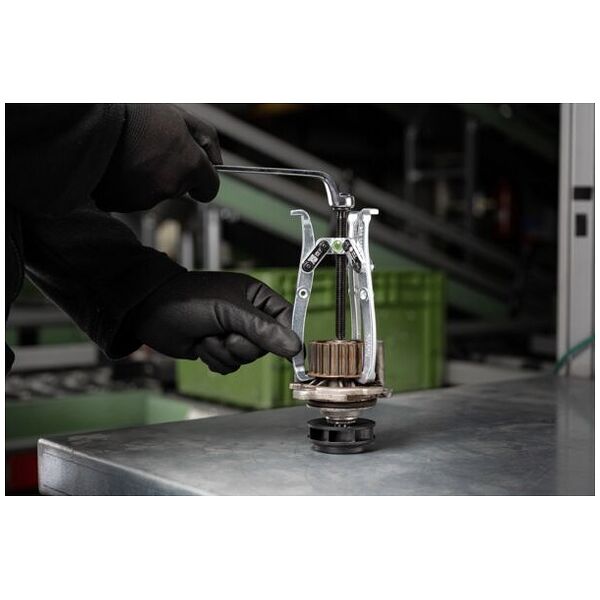

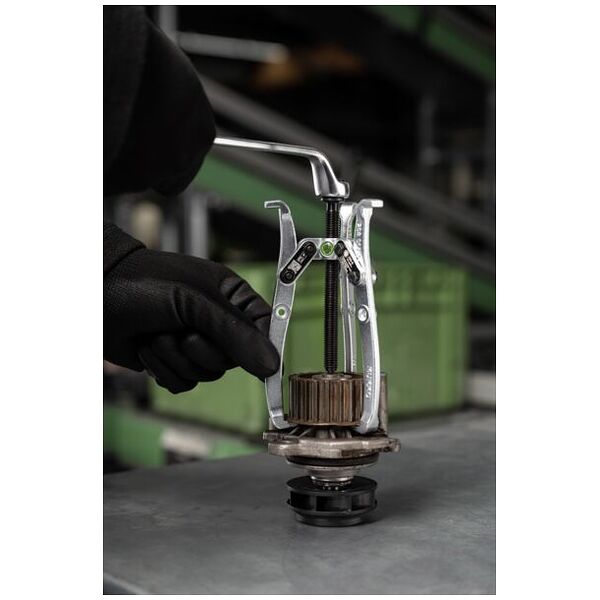

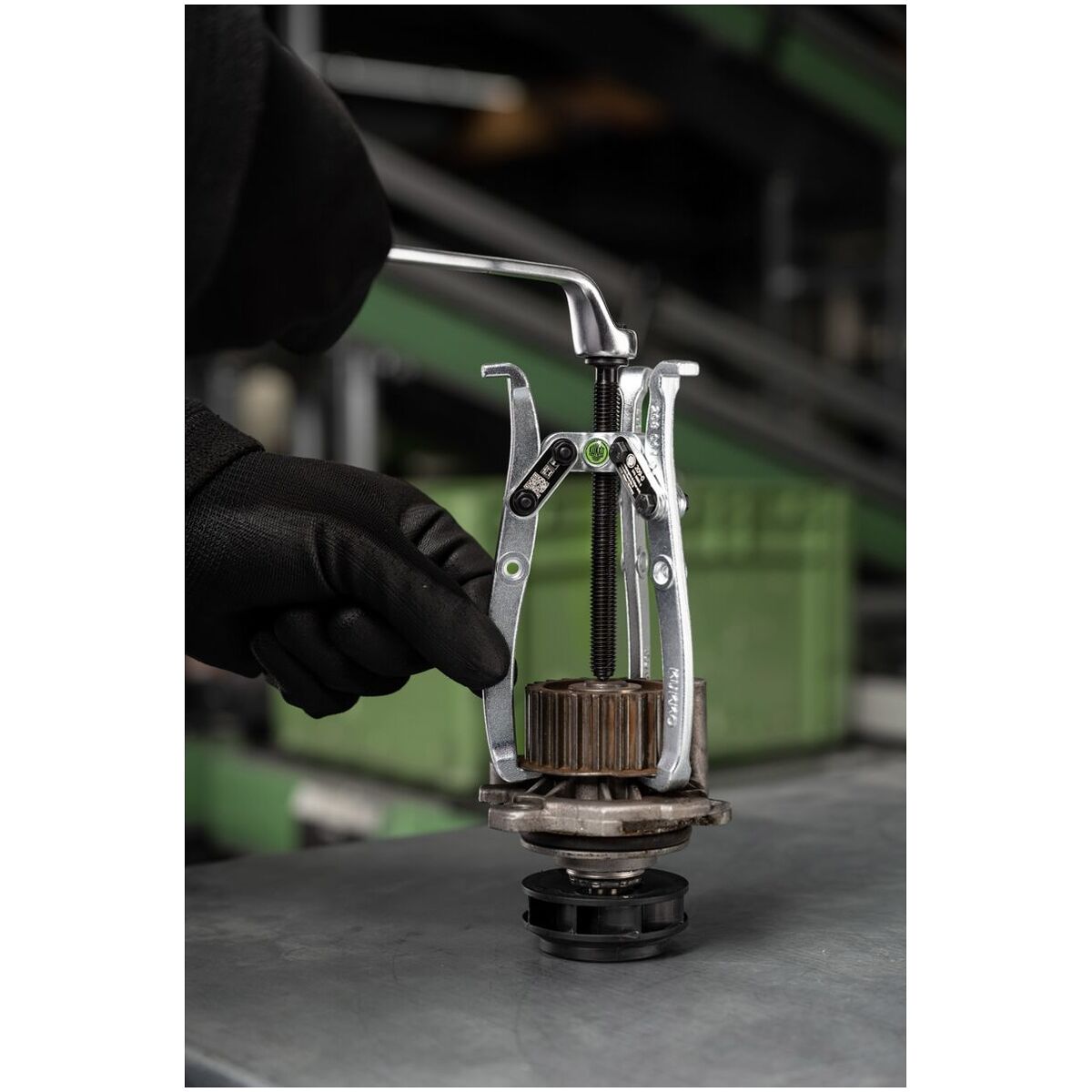

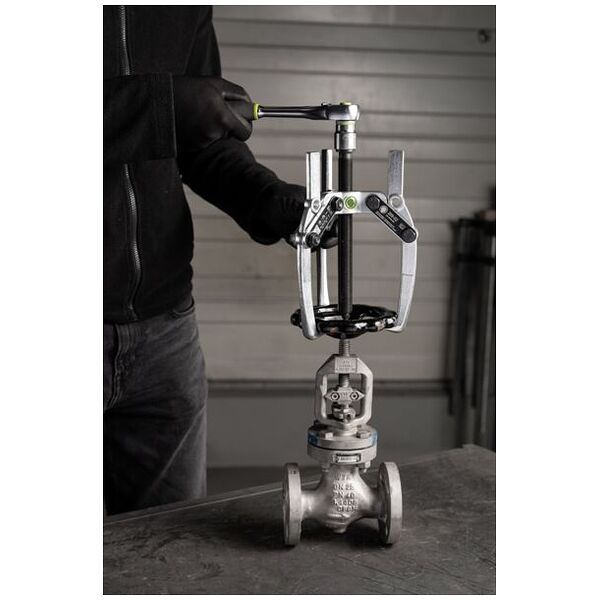

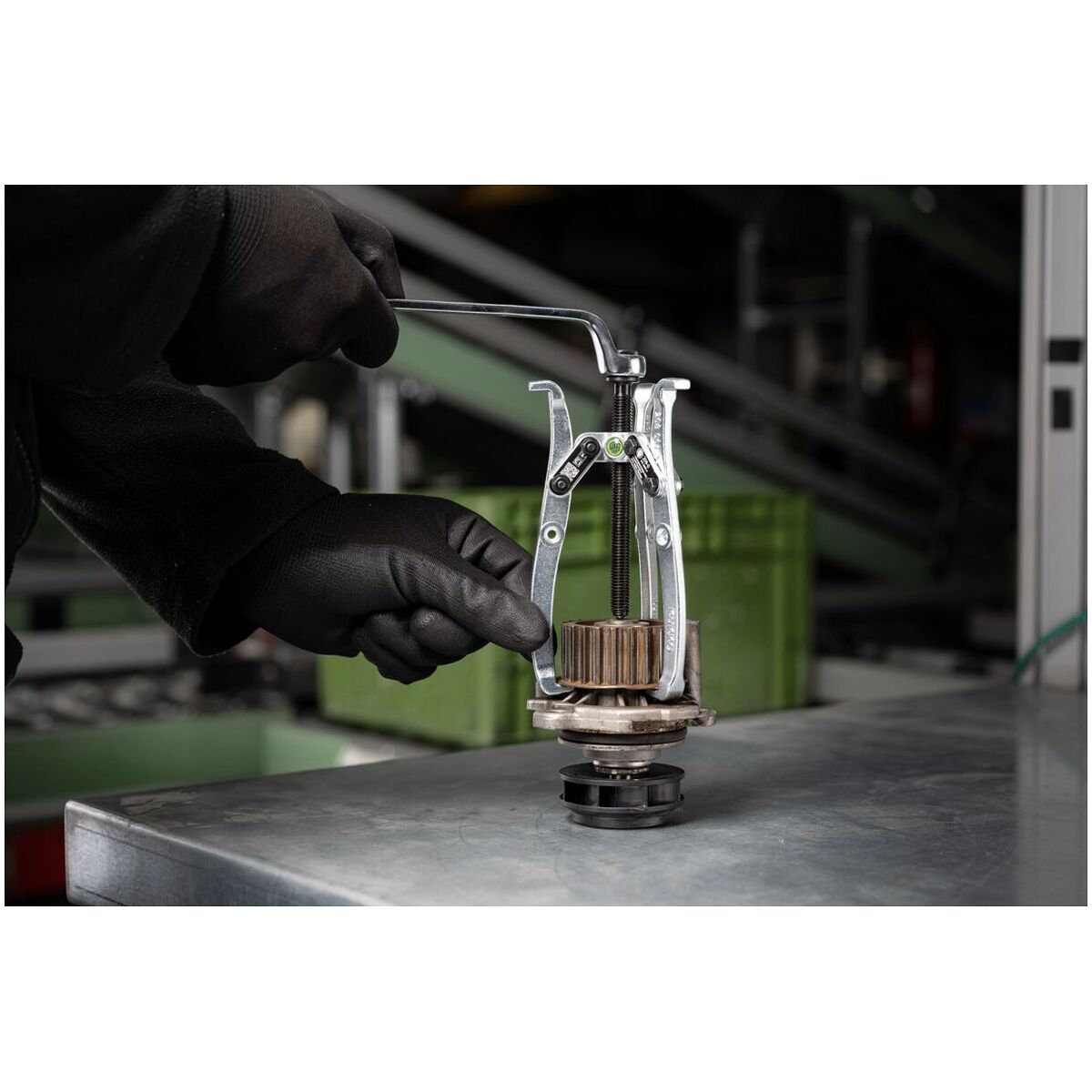

- The 3-jaw puller “Economy” with oscillating and height-adjustable jaws is used for pulling bearings, gears, and discs in all common sizes for craft, workshop, and industry. The oscillating and curved jaws adapt to any installation situation and are universally applicable due to the adjustability of the reach and spread. The 3-jaw design ensures an even load distribution, providing a particularly secure hold on the part being pulled.
- Adjustable puller jaws for individual adjustment of the reach due to multiple drilling in the puller jaws
- Oscillating puller jaws offer a variety of adjustment options
Feature:
- Material: tool steel
- Total width [mm]: 196 mm
- Total width [inch]: 7 11/16
- Total depth [mm]: 196 mm
- Total depth [inch]: 7 11/16
- Total height [mm]: 181 mm
- Total height [inch]: 7 1/8
- Width across flats [mm]: 17 mm
- Thread dimension: M14 x 1,5
- Span outside pull-off (max.) [inch]: 6 3/4
- Span outside pull-off (min.) [inch]: 3/4
- Span outside pull-off (max.) [mm]: 170 mm
- Clamping depth, external puller [mm]: 95 mm
- Clamping depth external puller [inch]: 4 7/8
- Hook root thickness at the tip (claw thickness K) [mm]: 3,5 mm
- Hook root thickness at the tip (claw thickness K) [inch]: 1/8
- Hook base width (claw width J) [mm]: 16 mm
- Hook base width (claw width J) [inch]: 5/8
- Hook base depth usable (claw depth usable O) [mm]: 13 mm
- Hook root depth usable (claw depth usable O) [inch]: 1/2
- Total hook root depth (total claw depth H) [mm]: 26 mm
- Total hook root depth (total claw depth H) [inch]: 1 1/32
- Total thickness of claws (L+1mm) [mm]: (distance of claws to base): 10 mm
- Total thickness of claws (L+1mm) [inch]: (distance of claws to base): 3/8
- Max. torque [Nm]: 20 Nm
- Max. torque [ft lb]: 14.75
- Max. tensile force [kN]: 20 kN
- Max. tractive force [t]: 2 t
- Max. pulling force [US t. sh.]: 2.20
- Reversible puller hooks: Yes
- Quick adjustment available: Yes
- Clamping bracket: No
- Spare parts available: Yes
- Separation diameter (min. - max.) [mm]: 0 mm - 170 mm
- Number of clamping depth adjustment: 2
- Can be sold worldwide: Yes (REACH, RoHS, POP, PROP65, TSCA)
