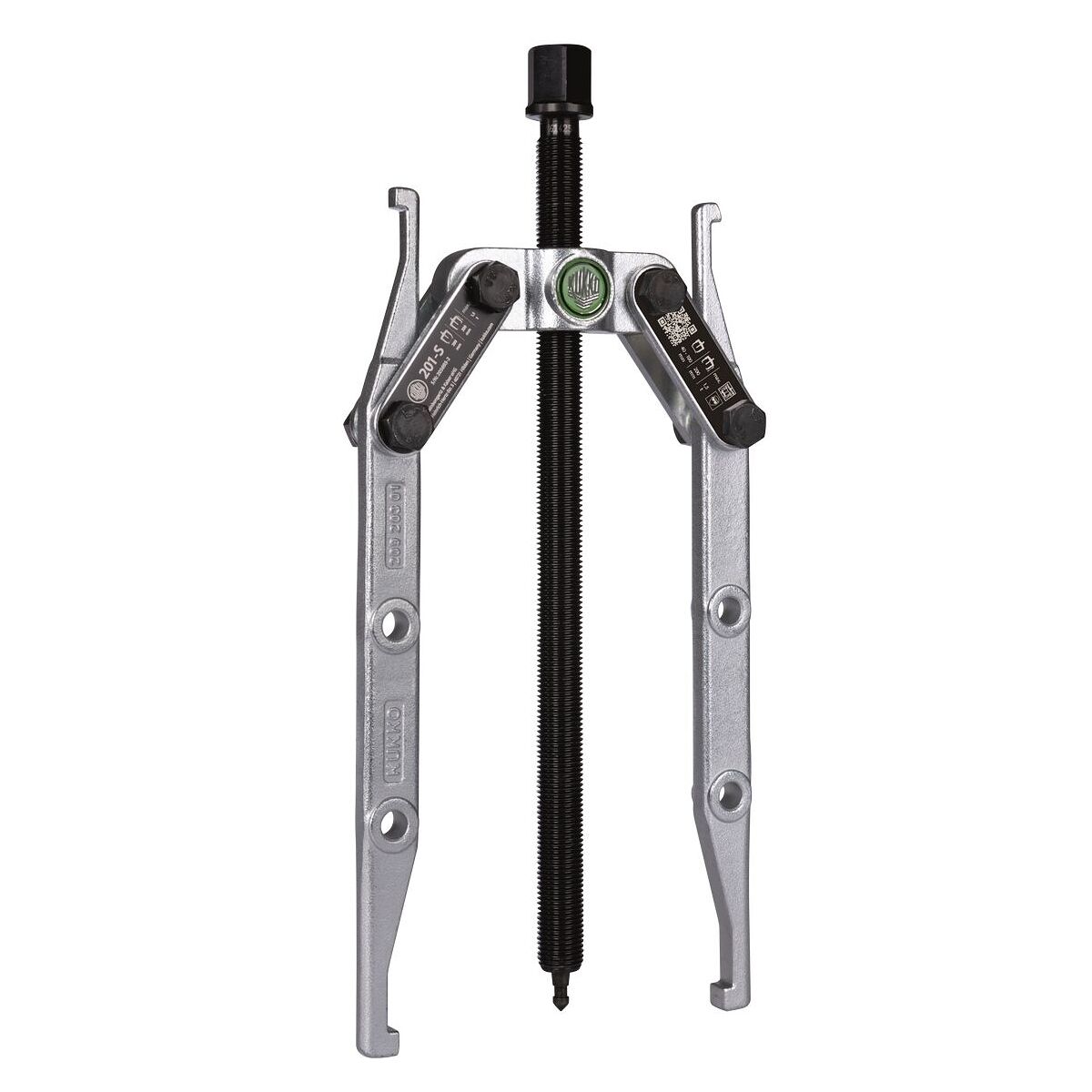

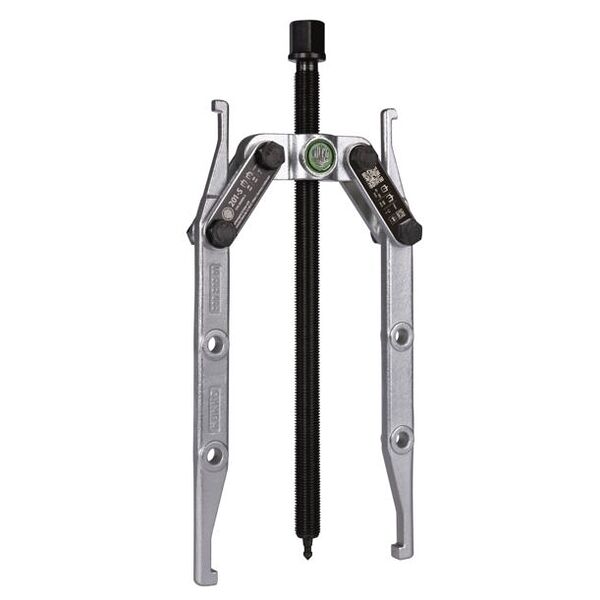

2-jaw tab puller for fan wheels with height-adjustable jaws, up to 200 mm spread, 200 mm reach
Article no.: 201-S
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 201-S | |
| EAN / GTIN | 4021176026911 | |
| Manufacturer number | 201-S | |
| L-Number | L80010 200 | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Description:

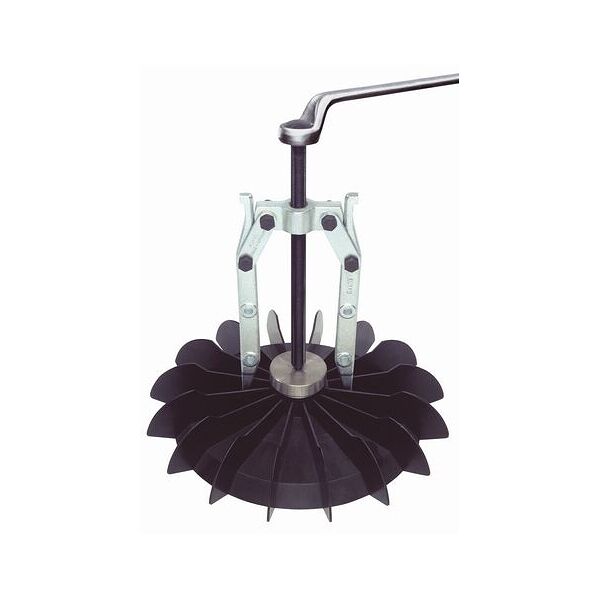

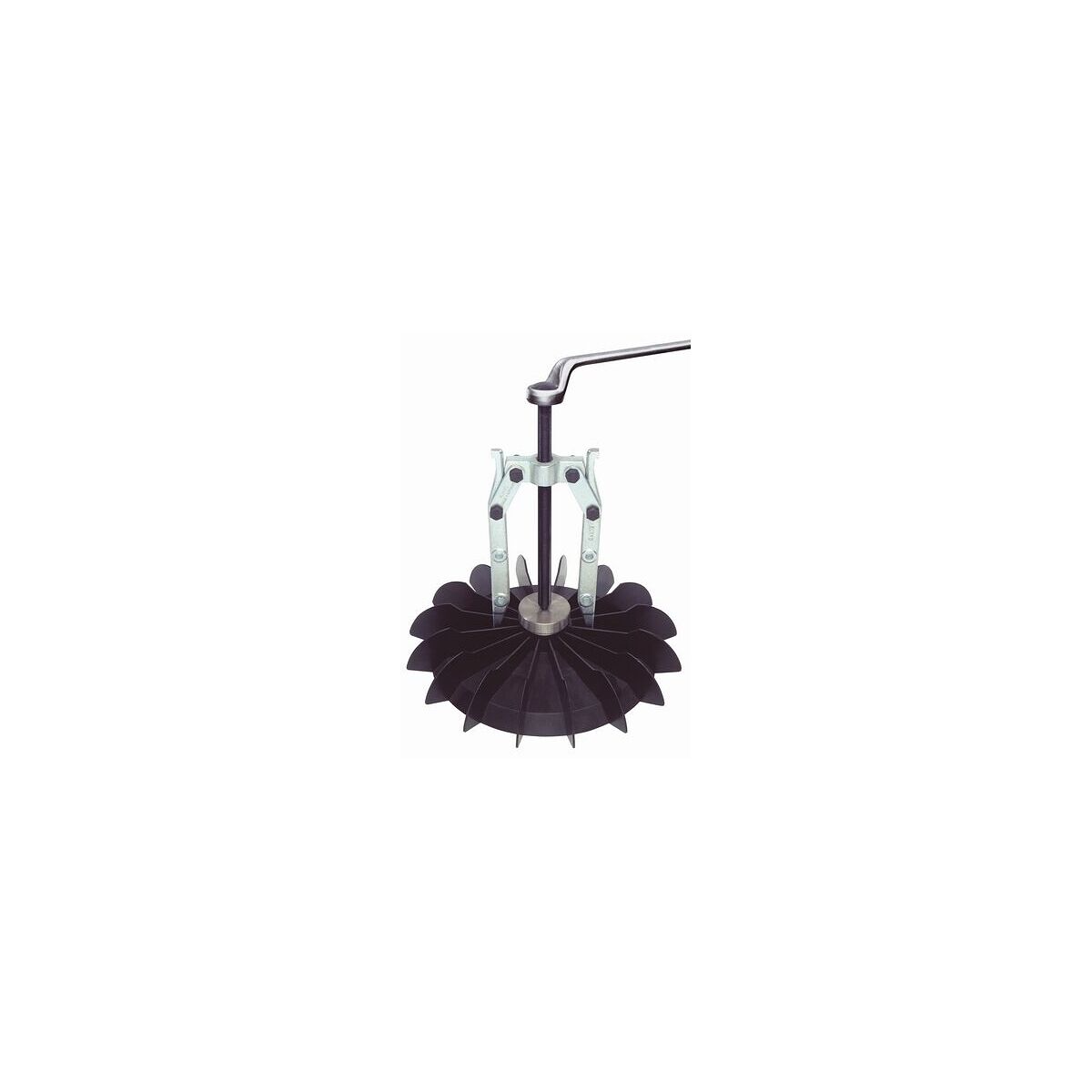

- The 2-jaw puller with oscillating and height-adjustable jaws is used for pulling fan wheels and propellers in all common sizes for crafts, workshops, and industry. Thanks to the particularly slim design, the jaws grip through the two slots and capture the flange of the fan. The oscillating jaws adapt to every installation situation and are universally applicable due to the adjustable reach. In addition, the jaws are 180° rotatable and can be used on both sides, allowing for different claw sizes depending on the space below the part to be pulled.

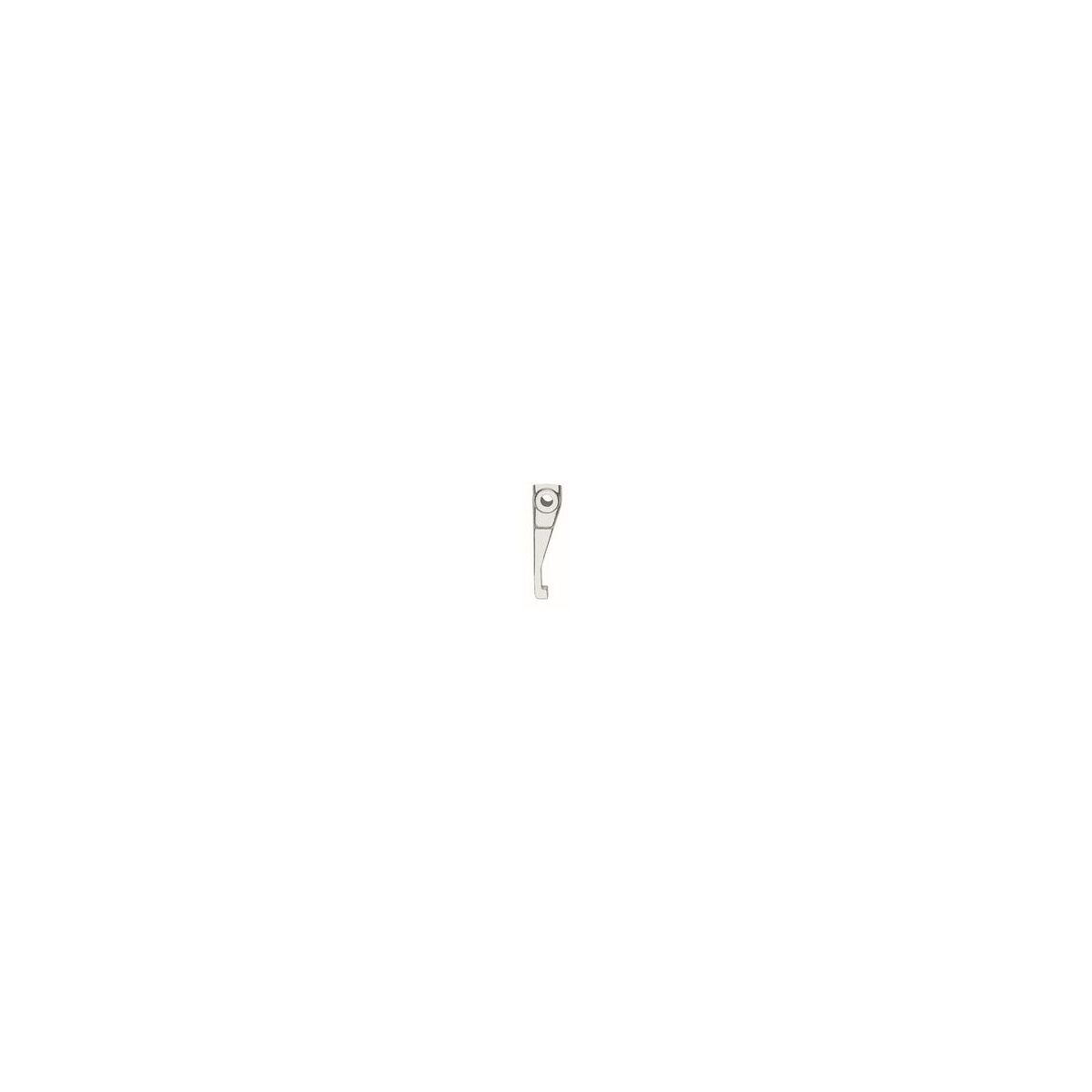

- Adjustable puller jaws for individual adjustment of the reach due to multiple drilling in the puller jaws
- Oscillating puller jaws offer a variety of adjustment options.
Feature:
- Material: tool steel
- Total width [mm]: 210 mm
- Total width [inch]: 8 1/4
- Total depth [mm]: 30 mm
- Total depth [inch]: 1 3/16
- Total height [mm]: 275 mm
- Total height [inch]: 10 13/16
- Width across flats [mm]: 17 mm
- Thread dimension: M14 x 1,5
- Span outside pull-off (min.) [mm]: 11 mm
- Span outside pull-off (max.) [inch]: 7 7/8
- Span outside pull-off (min.) [inch]: 3/4
- Span outside pull-off (max.) [mm]: 200 mm
- Clamping depth, external puller [mm]: 200 mm
- Clamping depth external puller [inch]: 7 7/8
- Hook root thickness at the tip (claw thickness K) [mm]: 6 mm
- Hook root thickness at the tip (claw thickness K) [inch]: 1/4
- Hook base width (claw width J) [mm]: 6 mm
- Hook base width (claw width J) [inch]: 1/4
- Hook base depth usable (claw depth usable O) [mm]: 3,5 mm
- Hook root depth usable (claw depth usable O) [inch]: 1/8
- Total hook root depth (total claw depth H) [mm]: 8,5 mm
- Total hook root depth (total claw depth H) [inch]: 3/8
- Total thickness of claws (L+1mm) [mm]: (distance of claws to base): 6 mm
- Total thickness of claws (L+1mm) [inch]: (distance of claws to base): 1/4
- Span inside pull-out (min.) [mm]: 40 mm
- Span inside pull-out (min.) [in.]: 1 9/16
- Max. torque [Nm]: 30 Nm
- Max. torque [ft lb]: 22.13
- Max. tensile force [kN]: 15 kN
- Max. tractive force [t]: 1,5 t
- Max. pulling force [US t. sh.]: 1.65
- Reversible puller hooks: Yes
- Quick adjustment available: No
- Clamping bracket: No
- Spare parts available: Yes
- Separation diameter (min. - max.) [mm]: 11 mm - 200 mm
- Span inside pull-out (min. - max.) [mm]: 40 mm
- Number of clamping depth adjustment: 3
- Can be sold worldwide: Yes (REACH, RoHS, POP, PROP65, TSCA)
