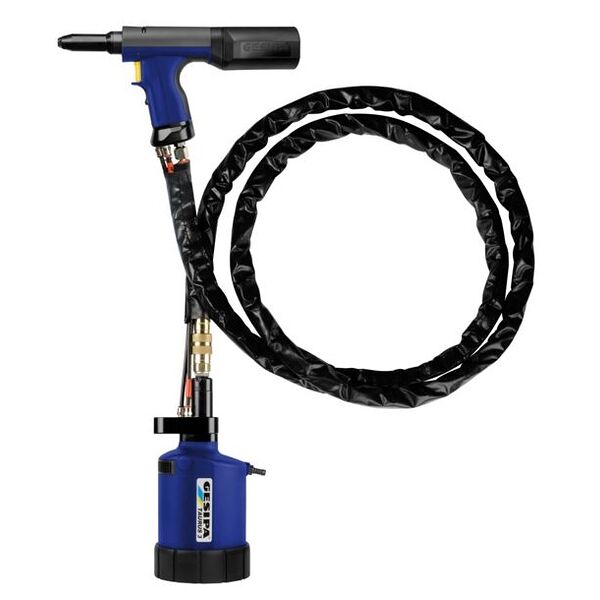

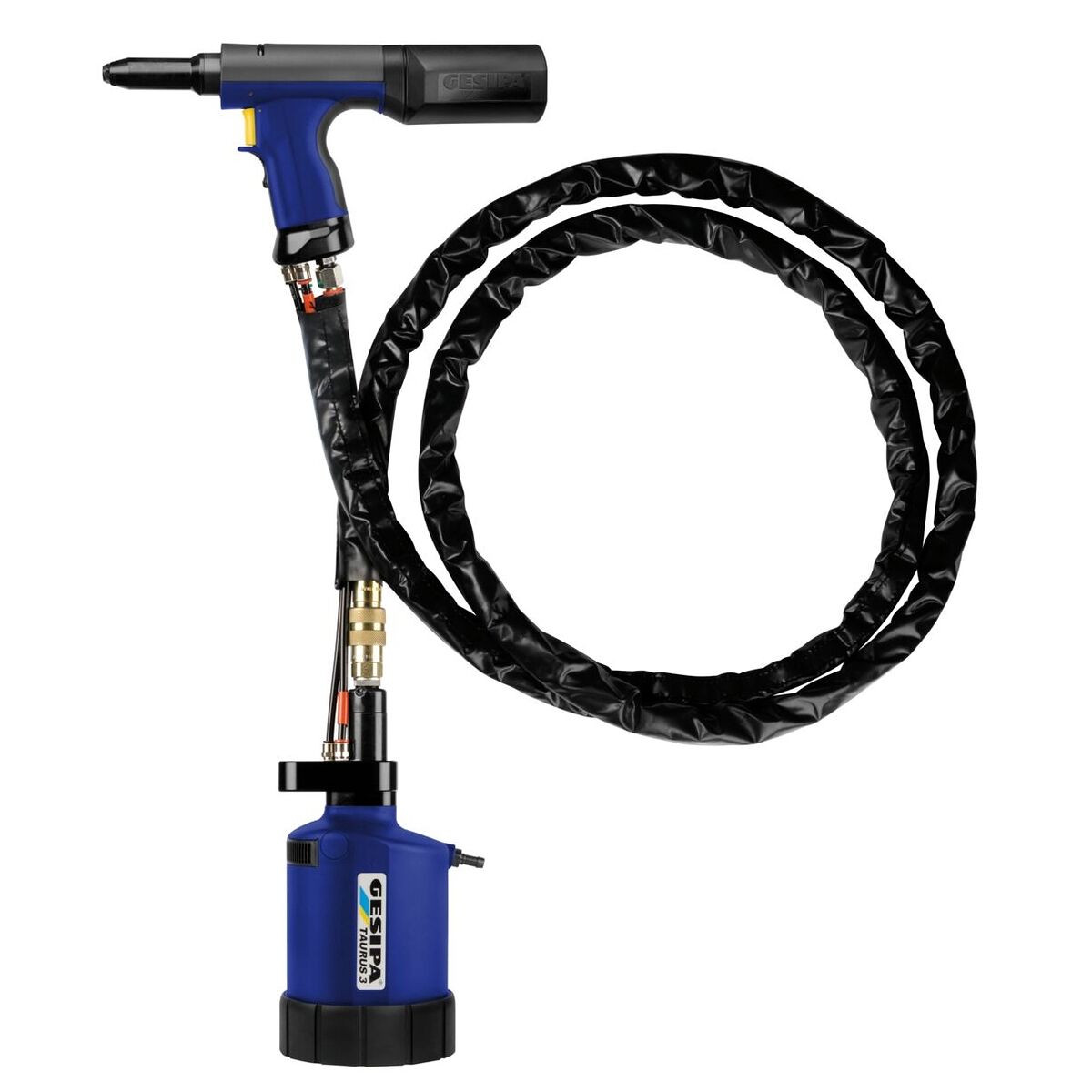

TAUREX 5 pneumatic riveting basic tool, 1 piece
Article no.: 1458060
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 1458060 | |
| EAN / GTIN | 4007081047500 | |
| Manufacturer number | 1458060 | |
| Manufacturer/responsible person | SFS Group Germany GmbH Division Medical - GESIPA, Nordendstraße 13-39, 64546 MÖRFELDEN-WALLDORF, Germany, www.gesipa.de |
Description
Description:
TAUREX 1-6
The entire TAURUS series with external pressure intensifier –
for more flexibility, versatility and ergonomics
Advantages at a glance
The entire TAURUS series with external pressure intensifier –
for more flexibility, versatility and ergonomics
Advantages at a glance
- Low weight of the riveting pistol
- Optional hose connection with quick-release coupling: Disconnecting the pistol from the external pressure intensifier without oil loss and without venting
- Perfect for setting blind rivets and lockbolts in confined spaces
- Also ideal for installation in assembly tables, fixtures or semi-automated workstations
- Can be equipped with almost all additional equipment of the TAURUS series:
e.g. Extension units, mandrel containers, blind rivet counters, setting process monitoring, foot switch and remote control
- Operating pressure: 5 to 7 bar
- Hose connection: 6 mm Ø (1/4″)
- Noise emissions: max. 79 dB
- Vibrations: < 2.9 m/s²
- Processing of all blind rivets and lockbolts with breaking loads up to 50 kN
- Same performance and technical data as the respective single devices of the TAURUS series 1-6 with different stroke
- Three metre hose length between pressure intensifier and setting pistol.
- TAUREX 1 2.4kg
- TAUREX 2 2.7kg
- TAUREX 3 3.1kg
- TAUREX 4 3.2kg
- TAUREX 5 4.2kg
- TAUREX 6 4.2kg
Feature:
- Weight: 5.9kg
- max. Operating pressure (imperial): 7 bar
- Setting force: 42000 N
- Length: 430 mm
- Height: 135 mm
