AkkuSafe box, Type: 2
Article no.: 981119 2
Article code:
Click to enlarge image
Click to enlarge image

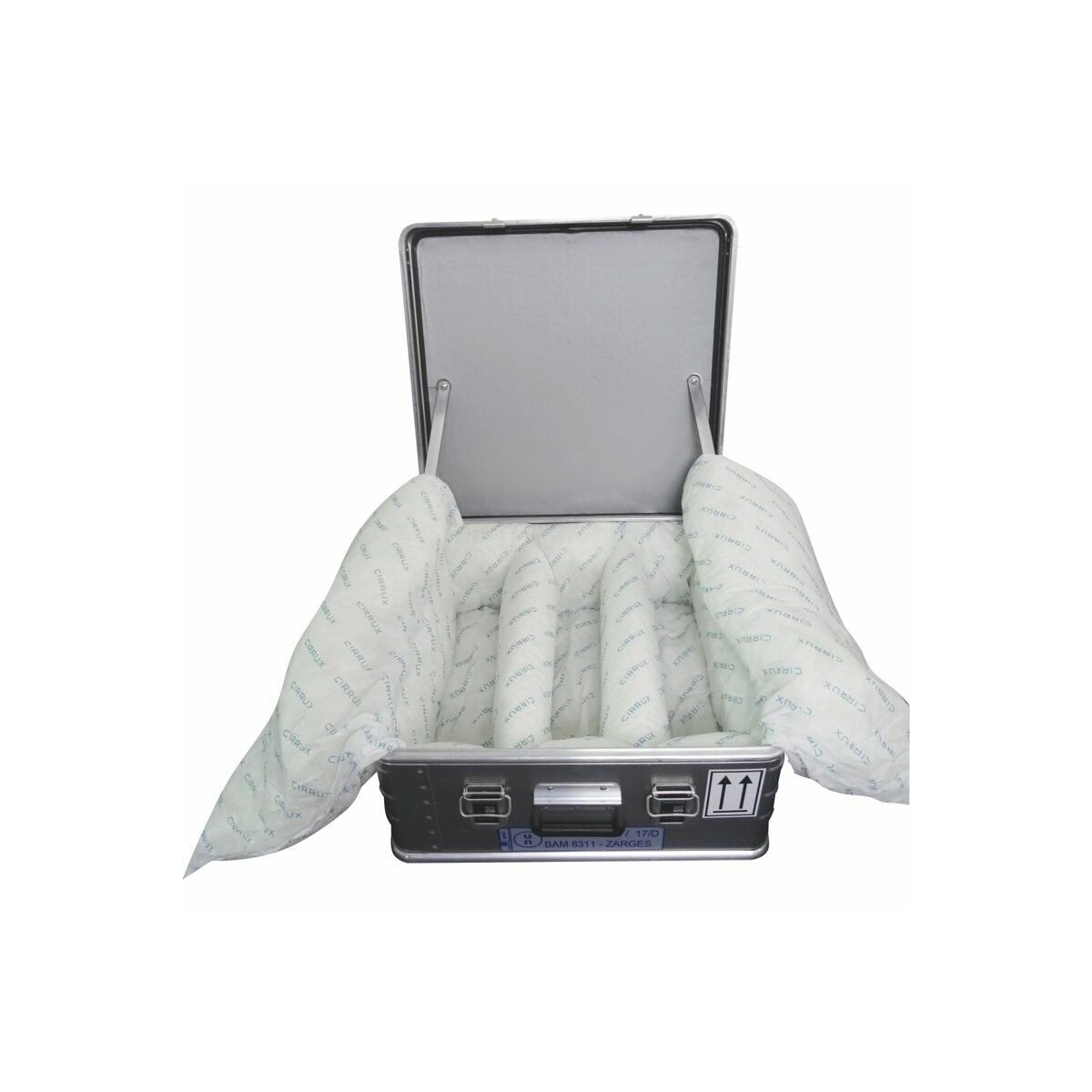

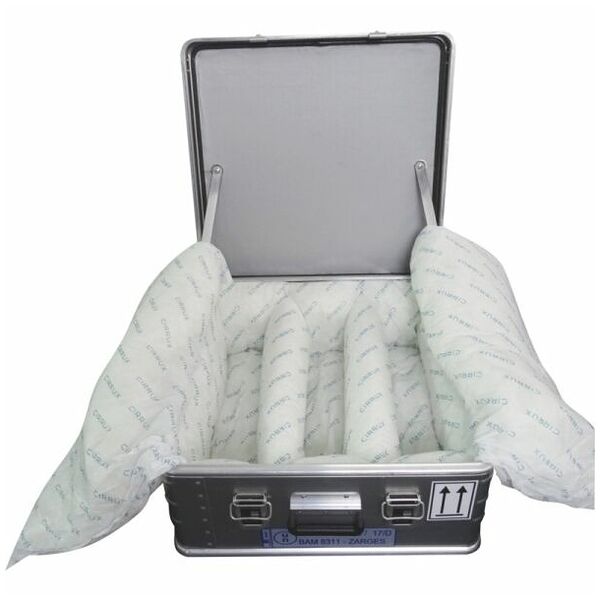

Application example
Click to enlarge image
Application example
Click to enlarge image
Detail
Click to enlarge image
Application example
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Product details
Technical Data
| Volume | 67 l | |
| Height | 250 mm | |
| Width | 600 mm | |
| Depth | 600 mm | |
| Usable height | 120 mm | |
| Usable depth | 430 mm | |
| Usable width of the compartment | 120 mm | |
| Number of handles | 2 | |
| max. gross mass, hazardous substance approval | 65 kg | |
| wheeled | no | |
| integrated rollers | no | |
| Weight | 11.5 kg | |
| Type of product | Aluminium case |
Identification & Classification
| Article number | 981119 2 | |
| EAN / GTIN | 4003866405824 | |
| Manufacturer number | 40582 | |
| Manufacturer/responsible person | Zarges GmbH, Zargesstraße 7, 82362 WEILHEIM, Germany, www.zarges.com |
Description
Version:
High-quality special aluminium container for safe storage and transportation of lithium-ion batteries. Suitable for transporting prototypes, new / intact (UN 38.3 tested) as well as damaged or defective / critically defective batteries (observe specification / approval. Request if necessary) in accordance with ADR SV 376 and packaging regulations P911, as well as batteries for disposal and recycling.
Successfully passed the fire test as per P911: maximum outside temperature below 100°C, no flames or splinters escaping in the event of an accident.
Non-flammable padding and absorbent material, non-conductive and dust-free. Foamed lid seal. Stackable, with convenient locks. Maximum gross weight, hazardous substance approval: 65 kg.
Successfully passed the fire test as per P911: maximum outside temperature below 100°C, no flames or splinters escaping in the event of an accident.
Non-flammable padding and absorbent material, non-conductive and dust-free. Foamed lid seal. Stackable, with convenient locks. Maximum gross weight, hazardous substance approval: 65 kg.
Approval for critical defective Li-ion batteries up to 814 Wh. Interior is divided into 3 compartments. No spread of flames to the adjacent rechargeable batteries.
Standard:
UN 3480, UN 3481, UN 3090, UN 3091, SV 376, P903, P908, P909, P910, P911 ADR, GGV.
