Perforated panel upright cabinet width 40G with Plain sheet metal swing doors, Height: 2000mm
Article no.: 942171 2000
Article code:
New product
Click to enlarge image
Click to enlarge image
Click to enlarge image

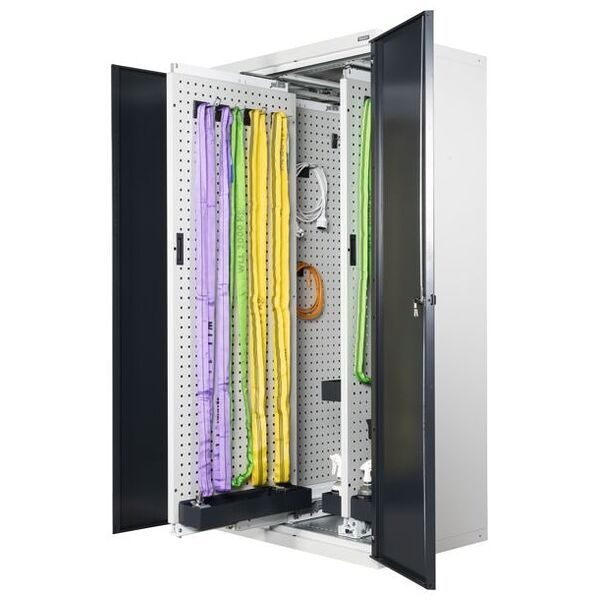

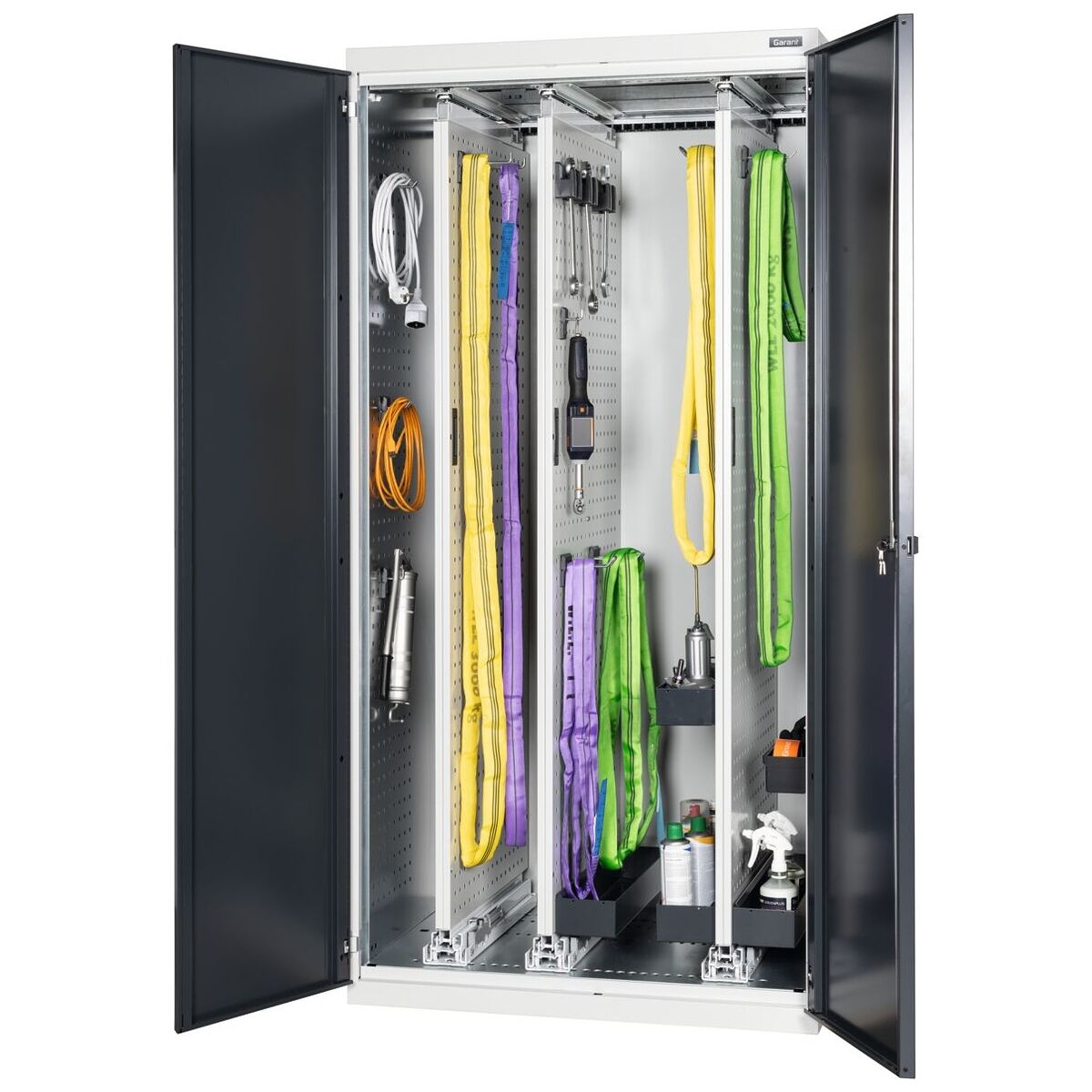

Application example
Click to enlarge image

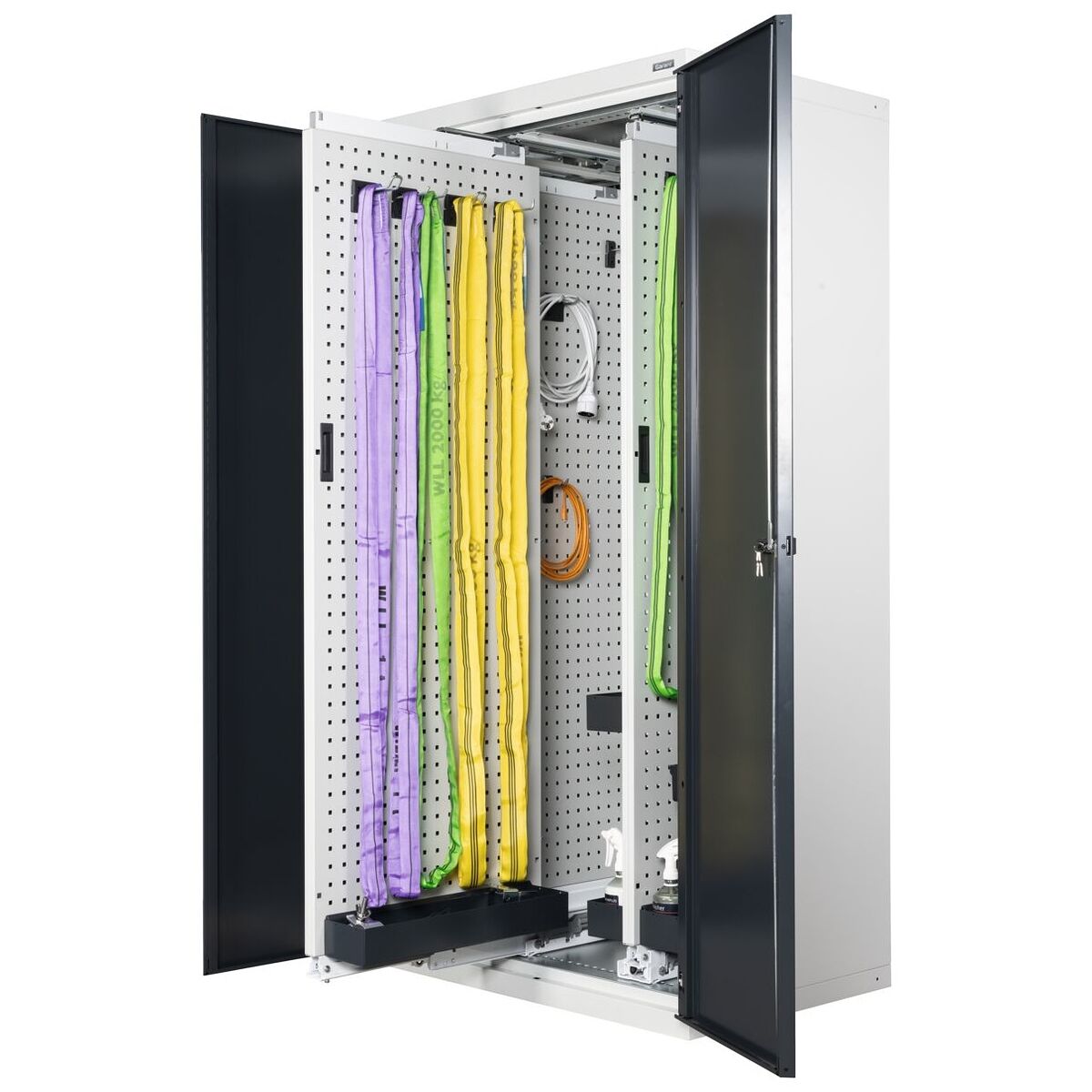

Application example
- Vertical pull-out frame load capacity: 80
- Cabinet housing internal load capacity: 1,000
- Drawer runner extension (partial/full extension): 100
- Drawer runner extension: Anti-tilt lock
- Door opening angle: 250
Product details
Technical Data
| Vertical pull-out frame load capacity | 80 kg | |
| Cabinet housing internal load capacity | 1,000 kg | |
| Drawer runner extension (partial/full extension) | 100 % | |
| Drawer runner extension | Anti-tilt lock | |
| Door opening angle | 250 degrees | |
| Hoffmann perforated panel grid interval | 9×9 mm | |
| Cylinder lock | modular barrel | |
| Colour selection | RAL 9002, 7035, 7016, 5012, 5005 | |
| Height | 2,000 mm | |
| Width | 1,000 mm | |
| Depth | 700 mm | |
| Width in G | 40 | |
| Depth in G | 28 | |
| Vertical pull-out frame usable height | 1,692 mm | |
| Vertical pull-out frame usable depth | 656 mm | |
| Number of pull-out frames | 3 | |
| Version | Perforated panel vertical cabinet | |
| Weight | 186 kg | |
| Type of product | Upright cabinet |
Identification & Classification
| Article number | 942171 2000 | |
| EAN / GTIN | 4069515001106 | |
| Manufacturer number | 942171 2000 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Perforated panel upright cabinets with pull-out panels and swing doors, reinforced on the inside and can be locked by 2-component Haptoprene® slide handle with a cylinder lock. With free-standing vertical pull-out frames, with □ 9×9mm at 37 mm intervals for mounting GARANT easyFix hooks and holders, and perforated panel accessories. Perforated panels adjustable on a 25-mm grid. The perforated panels are arranged as telescopic sections. Load capacity per pull-out frame 80 kg.
Only one frame can be pulled out at a time.
Only one frame can be pulled out at a time.
Supplied with:
3 pc. storage trays No. 942197 size 28; 4 pc. GARANT easyFix universal holder 45° No. 955590 size 75; 4 pc. GARANT easyFix universal holder 90° No. 955600 size 100×100.
Colour:
Standard body RAL 7035 light grey, doors RAL 7016 anthracite powder−coated.
Note:
For suitable accessories such as GARANT easyFix hooks and holders see Group 95.
According to the TÜV GS certification, it is essential that all cabinets are secured against tipping over.
According to the TÜV GS certification, it is essential that all cabinets are secured against tipping over.
Warning:
Intended use
Reasonably foreseeable misuse
- Keep doors’ swing range unobstructed and keep doors closed.
- Perforated panels for storage of tools.
- Storage shelf for storage of workpieces and tools.
- For work in indoor industrial environments.
- For use on dry solid floors.
- It is essential the cabinet is secured against toppling.
- Use only when it is technically in good condition and safe to operate.
- Use exclusively approved Hoffmann Group accessories for modification or rebuilding.
- 2.2.1.
- Upright cabinet perforated panel vertical pull-out frames for holding tool carriers, storage trays or perforated panel accessories, GARANT easyFix hooks and holders.
- Storage shelves cannot be hooked into the pull-out frames.
Reasonably foreseeable misuse
- Do not make any unauthorised modifications.
- Do not overload cabinet, perforated panels and storage shelf.
- Do not climb into or sit on cabinet, drawers or storage shelf.
- Do not place objects on cabinet shell that will extend beyond its edge.
- Do not place articles in the cabinet roughly.
- Do not store any flammable or chemical liquids.
- Do not store any foodstuffs.
- Do not use in explosion hazard areas.
