Drawer unit for cargo scooters, 20×16G, Number of drawers: 3
Article no.: 915660 3
Article code:
New product
Click to enlarge image
Click to enlarge image

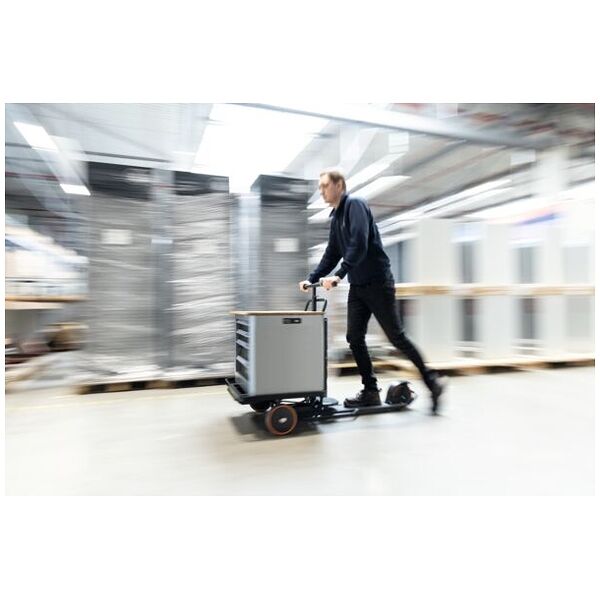

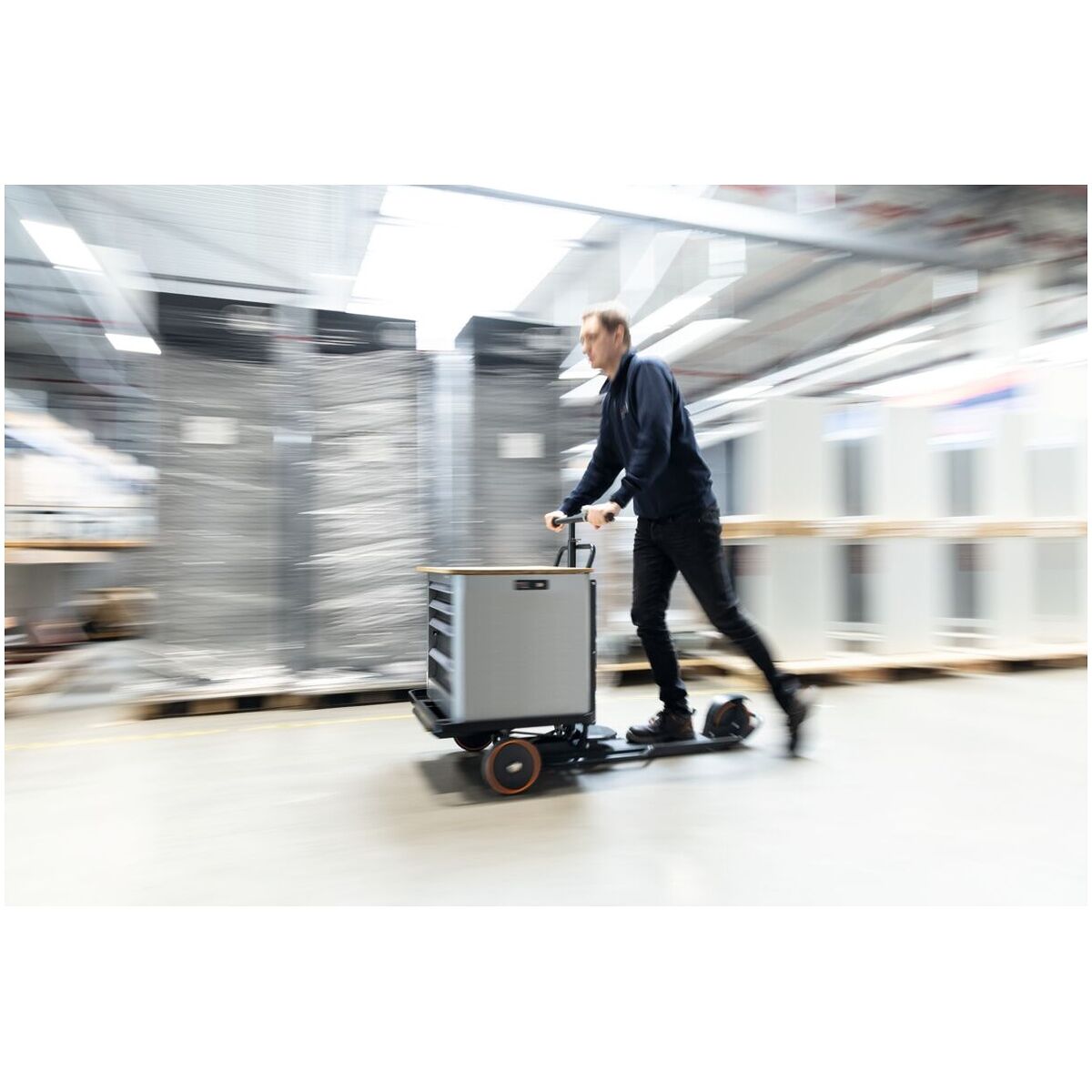

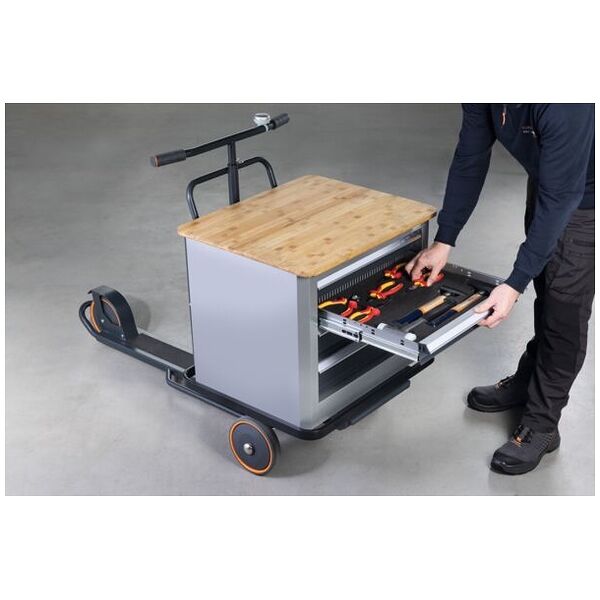

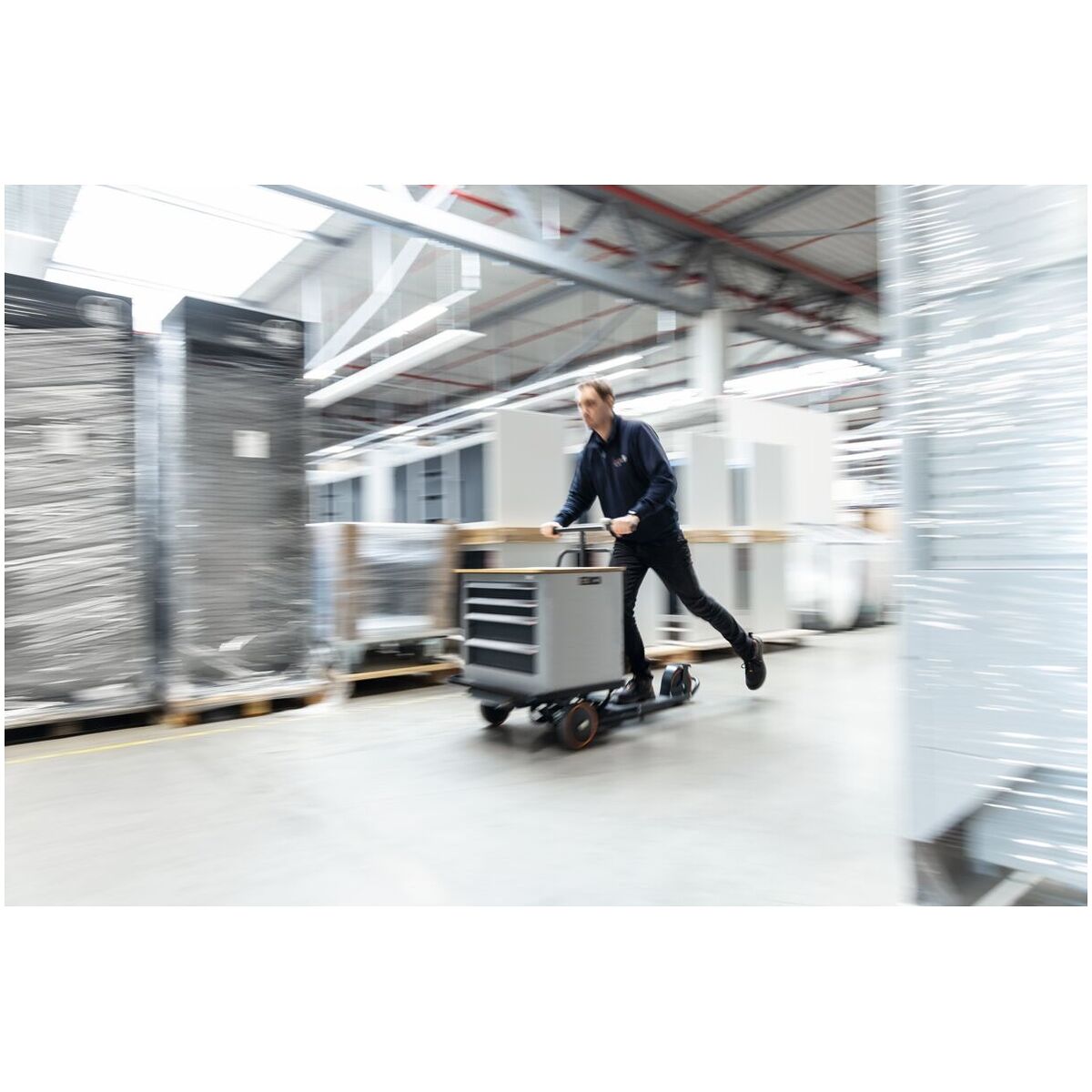

Application example on Cargo Scooter No. 915650.
Click to enlarge image
Application example on Cargo Scooter No. 915650.
Click to enlarge image
Application example on Cargo Scooter No. 915650.
Click to enlarge image
Application example on Cargo Scooter No. 915650.
Click to enlarge image
- Drawer/pull-out shelf load capacity: 20
- Drawer runner extension (partial/full extension): 100
- Individual drawer release system: One-hand
- Drawer usable area in G: 20×16
- Cylinder lock: modular barrel
Product details
Technical Data
| Drawer/pull-out shelf load capacity | 20 kg | |
| Drawer runner extension (partial/full extension) | 100 % | |
| Individual drawer release system | One-hand | |
| Drawer usable area in G | 20×16 | |
| Cylinder lock | modular barrel | |
| Height | 500 mm | |
| Width | 600 mm | |
| Depth | 500 mm | |
| Usable width | 500 mm | |
| Usable depth | 400 mm | |
| Drawer usable width in G | 20 | |
| Drawer usable depth in G | 16 | |
| Number of drawers | 3 | |
| Weight | 8 kg | |
| Type of product | Tool cabinet |
Identification & Classification
| Article number | 915660 3 | |
| EAN / GTIN | 4069515040303 | |
| Manufacturer number | 915660 3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Drawer unit for cargo scooters made of sturdy sheet steel housing. 100% full extension drawers with a 20 kg load capacity, aluminium handles with labelling strips that can be exchanged and rewritten. Can be locked centrally with a cylinder lock in lock plate.
Fitted with:
Drawer front height, mm: 75, 125, 200
Supplied with:
Drawer extension with mounting plate for Cargo Scooter.
Colour:
Two-tone powder-coated, silver combined with anthracite RAL 7016
