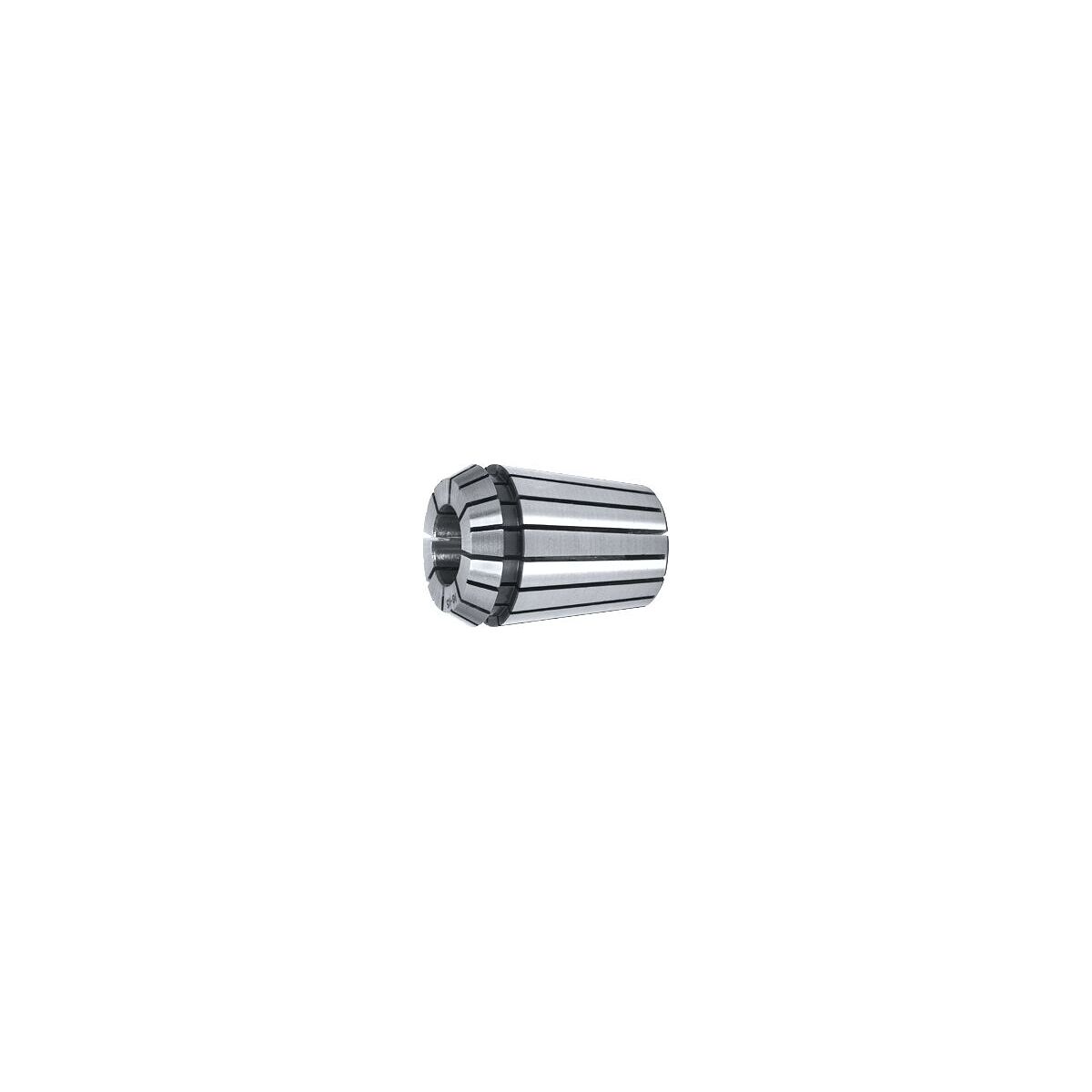

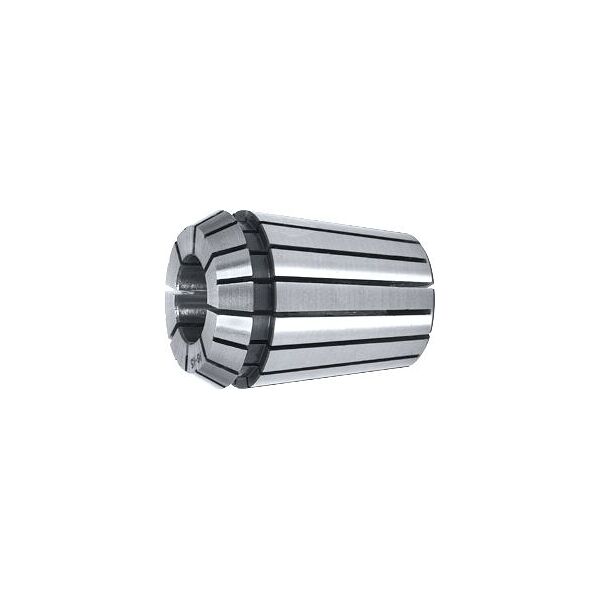

ER collet, ER 32, Nominal clamping ⌀ d: 3mm
Article no.: 309003 3
Article code:
New product
- Standard: ISO 15488-B
- Concentricity: ≤ 10
Product details
Technical Data
| Adapter | ER 32 | |
| Standard | ISO 15488-B | |
| Concentricity | ≤ 10 µm | |
| Type | 470 E | |
| External ⌀ D | 33 mm | |
| Overall length L | 40 mm | |
| Type of product | Collet |
Identification & Classification
| Article number | 309003 3 | |
| EAN / GTIN | 4069515025171 | |
| Manufacturer number | 309003 3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Through hardened and ground. Polished.
Note:
The collet clamping ⌀ range is always up to 1 mm less than nominal, e.g. ⌀ 10 − 9 mm, except for ⌀ 1, 1.5 and 2 (where it is only 0.5 mm).
