INFO Point with 24 inch monitor, Type: M/DE
Article no.: 948005 M/DE
Article code:
- Hoffmann perforated panel grid interval: 9×9
- Cylinder lock: modular barrel
Product details
Technical Data
| Material thickness | 0.9 mm | |
| Hoffmann perforated panel grid interval | 9×9 mm | |
| Cylinder lock | modular barrel | |

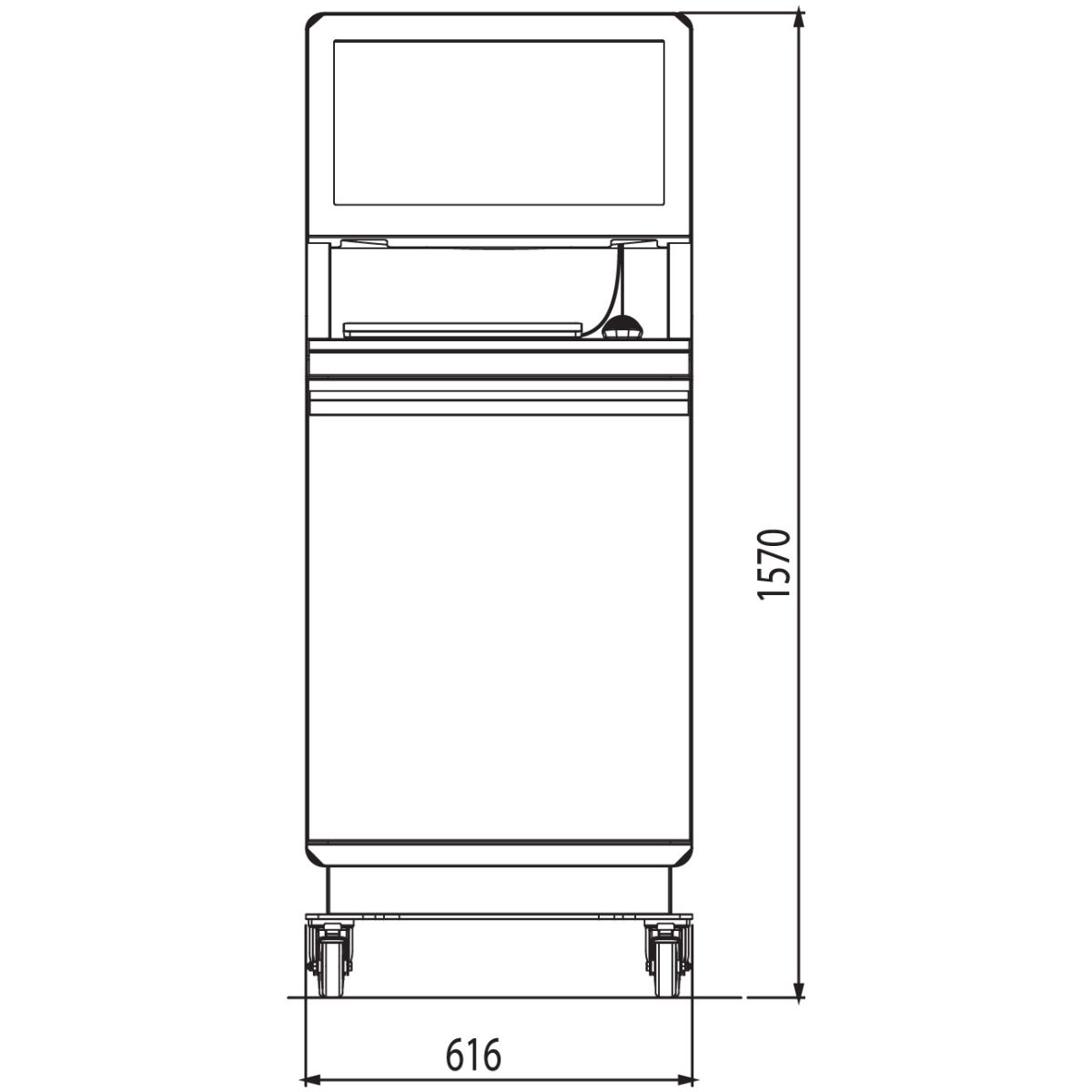

| Height | 1,570 mm | |
| Footprint width | 616 mm | |
| Footprint depth | 550 mm | |
| Computer housing usable height | 740 mm | |
| Computer housing usable width | 540 mm | |
| Computer housing usable depth | 190 mm | |
| Counter working height | 1,060 mm | |
| Counter width | 600 mm | |
| Counter depth | 300 mm | |
| Tray closed, depth | 150 mm | |
| Weight | 65 kg | |
| Power supply | Mains operated | |
| Type of product | INFO Point |
Identification & Classification
| Article number | 948005 M/DE | |
| EAN / GTIN | 4062406212384 | |
| Manufacturer number | 948005 M/DE | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
GARANT INFO Point is a modern computer workstation for the display and processing of digital information, for recording data and as a response station with a connected barcode scanner (not supplied).

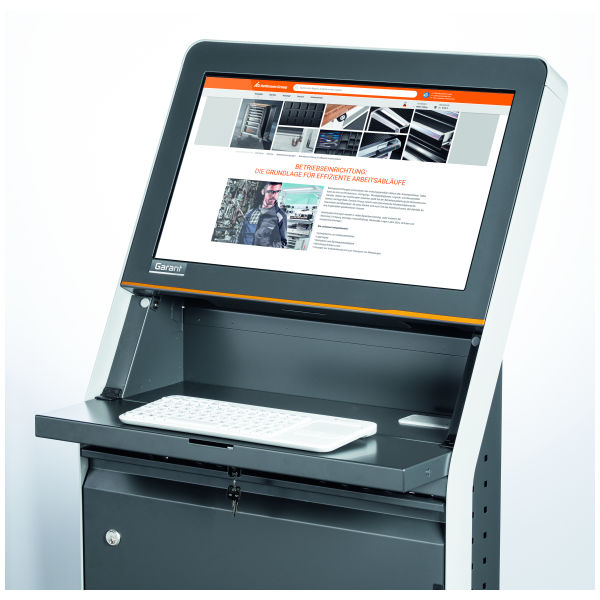

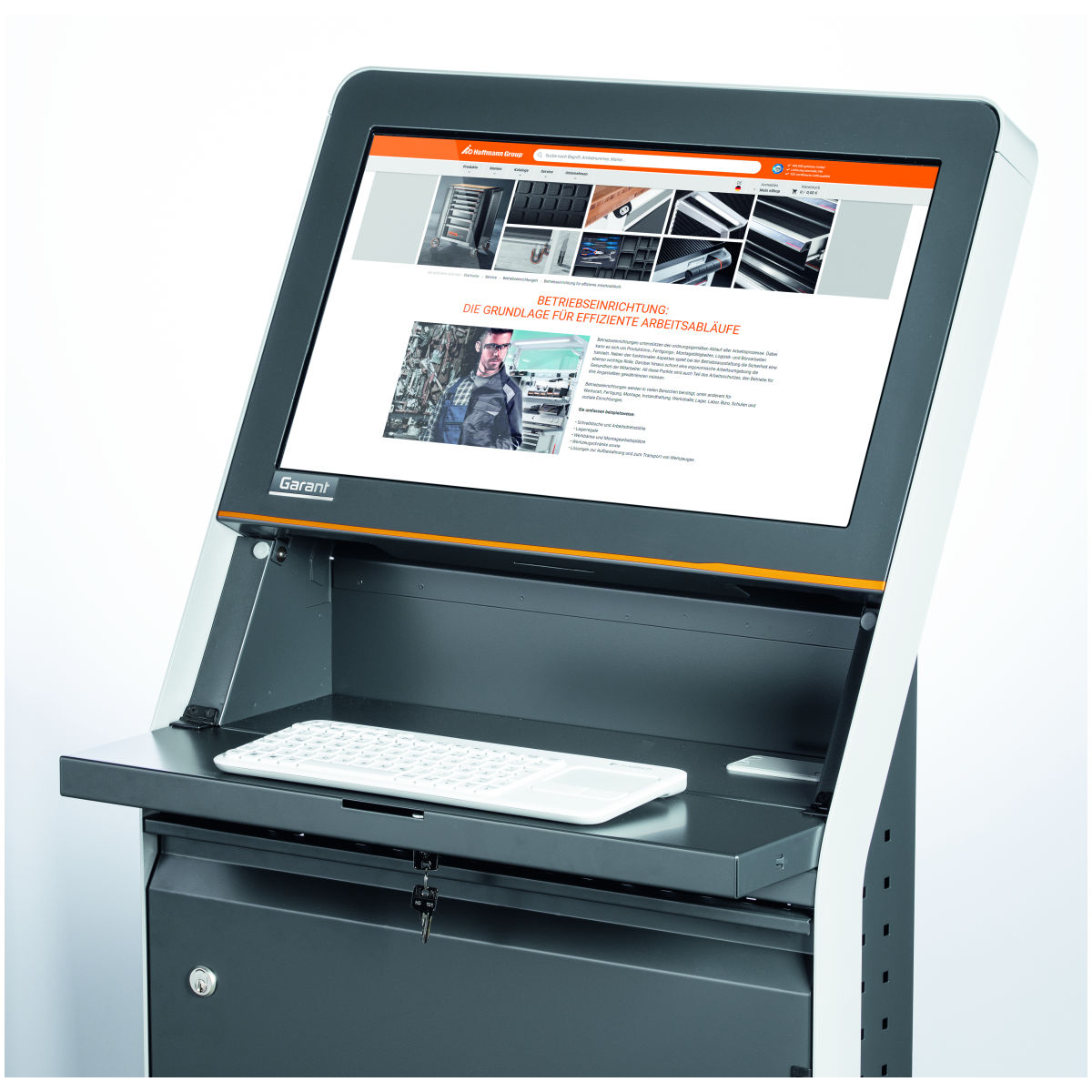

The INFO Point has a sturdy sheet metal housing. A swing-open tray is mounted on the front at an ergonomic height to accept a keyboard and computer mouse. A PC or Linux client can be mounted within the body underneath the tray behind the lockable door. The tray and the door can be locked with DOM cylinder locks. A perforated panel with holes of□ 9×9 mm on a 37 mm grid is provided at the back of the body for the necessary ventilation of the devices mounted within the body. GARANT easyFix hooks and holders can also be mounted on the panel.
With built-in 24 inch monitor.
The INFO Point has a sturdy sheet metal housing. A swing-open tray is mounted on the front at an ergonomic height to accept a keyboard and computer mouse. A PC or Linux client can be mounted within the body underneath the tray behind the lockable door. The tray and the door can be locked with DOM cylinder locks. A perforated panel with holes of□ 9×9 mm on a 37 mm grid is provided at the back of the body for the necessary ventilation of the devices mounted within the body. GARANT easyFix hooks and holders can also be mounted on the panel.
With built-in 24 inch monitor.
Mobility unit with 4 castors (⌀ 100 mm), 2 with parking brake.
Fitted with:
Number of shelves in the computer housing: 1
Colour:
Body anthracite RAL 7016 powder-coated.
Warning:
Intended use
Reasonably foreseeable misuse
- For transporting, storing and using computer, monitor, printer and other periphery devices.
- For work in indoor industrial environments.
- For use on dry solid floors.
- Use only when it is technically in good condition and safe to operate.
- Use exclusively approved Hoffmann Group accessories for modification or rebuilding.
- Only use the computer with the fan running.
Reasonably foreseeable misuse
- Do not make any unauthorised modifications.
- Do not use in explosion hazard areas.
- Not for use in areas where high concentrations of dust, flammable gases, vapours or solvents are present.
- Not for use where there is exposure to intense heat, direct sunlight, naked flames or liquids.
- Do not overload drawers and storage shelves.
- Do not climb onto or sit on computer workstation.
- Do not carry people.
- To ensure optimal ventilation, do not entirely cover perforated back panel with easyfix accessories.
- Keep fan and ventilation slots clear and uncovered.
