Pipe cutter DP50 for HT pipes, Type: 1
Article no.: 818190 1
Article code:
Click to enlarge image
Click to enlarge image
Use the slider to set the appropriate tube size.
Click to enlarge image

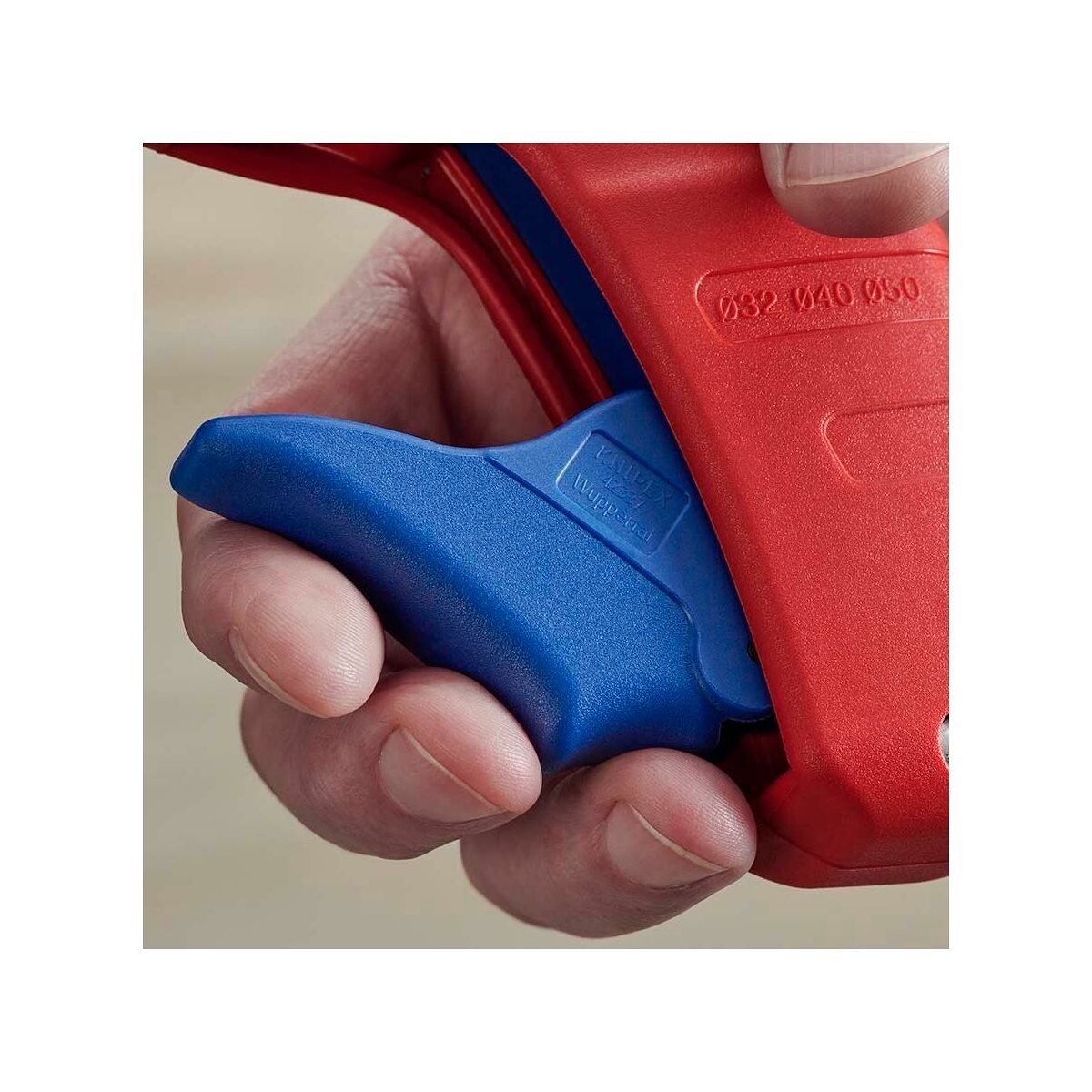

Pressing on the blue lever allows the tube to be inserted and the cutter blade to be positioned precisely.
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Product details
Technical Data
| for pipe outer ⌀ | 40 mm | |
| Length | 202 mm | |
| Weight | 294 g | |
| suitable for pipe material | VA; Aluminium; Brass; Copper | |
| Type of product | Pipe cutters |
Identification & Classification
| Article number | 818190 1 | |
| EAN / GTIN | 4003773087809 | |
| Manufacturer number | 90 23 01 BK | |
| Manufacturer/responsible person | KNIPEX-Werk C. Gustav Putsch KG, Oberkamper Straße 13, 42349 WUPPERTAL, Germany, www.knipex.de |
Description
Version:
Tool body of glass-fibre-reinforced plastic. Exchangeable blade of high-quality ball bearing steel, can be changed with no tools required. Optimum pipe guidance and easy cutting thanks to self-adjusting rollers with plain bearings. The spring-mounted cutting blade means there is no need for tedious adjustment whilst cutting.
Advantage:
One tool, two functions, three diameters. Easily and neatly cut and chamfer common plastic wastewater pipes in a single step. Smooth cut: No adjustment, no deburring and a reduced risk of clogging or damage to the seal.
Application:
Cuts HT pipes and many other plastic pipes with ⌀ 32, 40 or 50 mm and a wall thickness of up to 2.4 mm. Easy to position thanks to clear view of the cut-off point. Final cuts or fine cuts are possible from a section length of approx. 10 mm.
