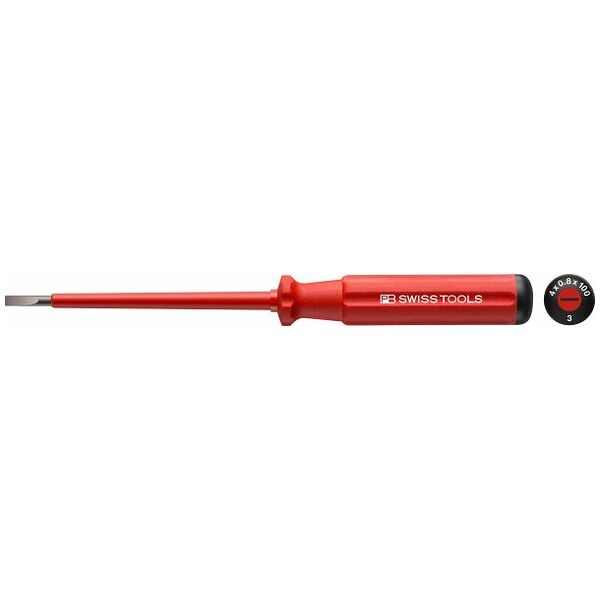

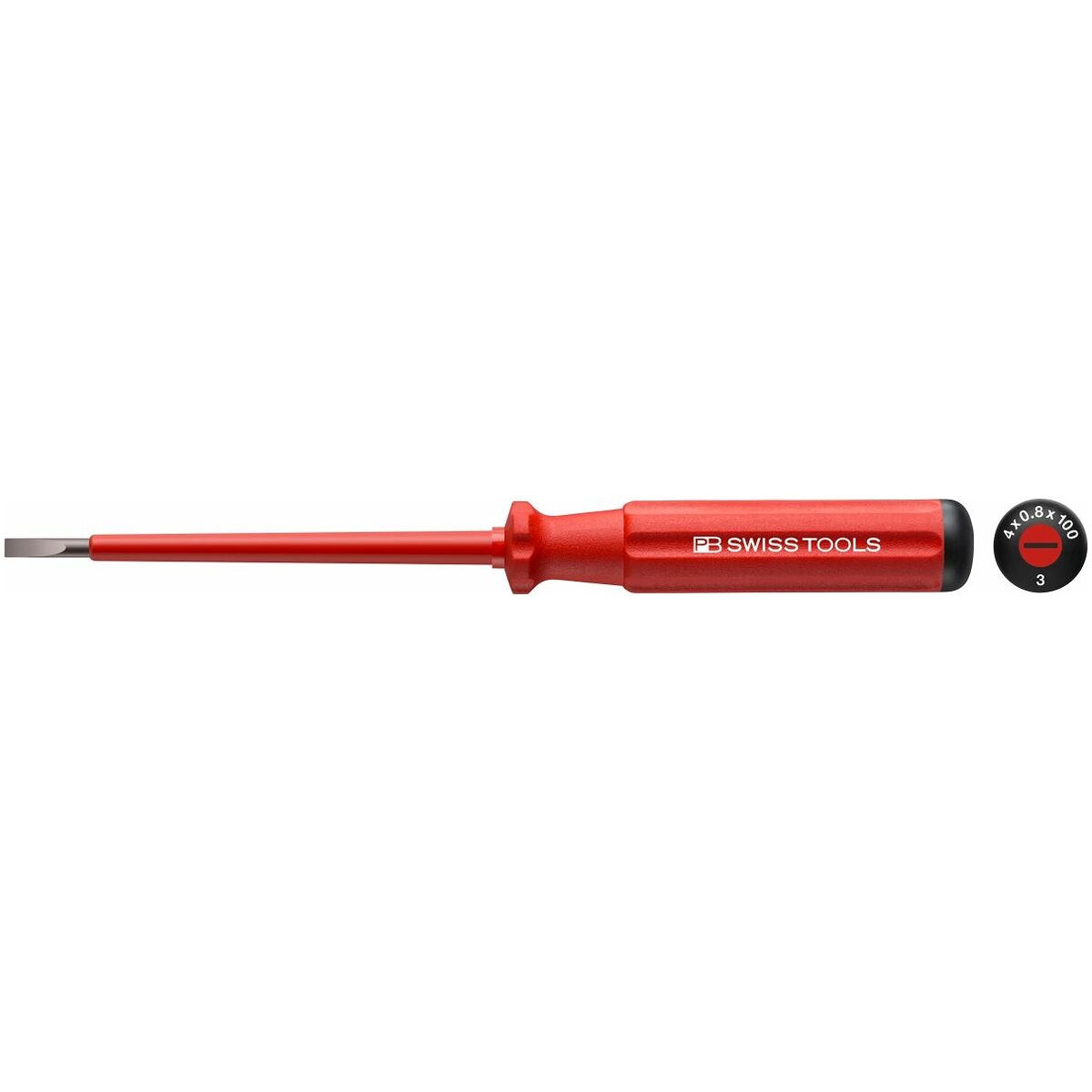

Electrician’s screwdriver for slot-head, Classic VDE fully insulated, Blade width b: 4mm
Article no.: 663000 4
Article code:
Offers
Product details
Technical Data
| Series | Classic VDE | |
| Blade width b | 4 mm | |
| Standard | DIN EN IEC 60900 / VDE 0682-201 | |
| Blade designation | 3 | |
| Tip thickness a | 0.8 mm | |
| Blade length | 100 mm | |
| overall length | 195 mm | |
| Drive profile | Slot-head screwdriver | |
| Type of product | Screwdrivers |
Identification & Classification
| Article number | 663000 4 | |
| EAN / GTIN | 7610733064298 | |
| Manufacturer number | 5100.3-100 |
Description
Version:
Handle and blade fully insulated up to 1000 V to DIN EN IEC 60900 / VDE 0682-201.
Each of these screwdrivers is individually tested in a water bath for insulation breakdown under high voltage.
Slim handle with a non-allergenic elastomer coating and a core of particularly tough and impact-resistant polypropylene. Due to its special surface structure, the grip is non-slip even with oily or wet hands.
Blade of PB Swiss Tools special alloy combines maximum hardness with exceptional toughness.
Blades with taper tips, manufactured to the standard dimensions of slots on the screws. Fully insulated, the breakdown strength of the insulation is many times the minimum test voltage set by VDE. Each of these screwdrivers is individually tested in a water bath for insulation breakdown under high voltage.
Each of these screwdrivers is individually tested in a water bath for insulation breakdown under high voltage.
Slim handle with a non-allergenic elastomer coating and a core of particularly tough and impact-resistant polypropylene. Due to its special surface structure, the grip is non-slip even with oily or wet hands.
Blade of PB Swiss Tools special alloy combines maximum hardness with exceptional toughness.
Blades with taper tips, manufactured to the standard dimensions of slots on the screws. Fully insulated, the breakdown strength of the insulation is many times the minimum test voltage set by VDE. Each of these screwdrivers is individually tested in a water bath for insulation breakdown under high voltage.
Application:
For use at voltage up to 1000 V.
Optimum working life for electrician’s screwdrivers is assured if screwdrivers always exactly match the standard screw slot size. (see tables part). Incorrect screwdriver size selection will cause damage to the screw head.
Optimum working life for electrician’s screwdrivers is assured if screwdrivers always exactly match the standard screw slot size. (see tables part). Incorrect screwdriver size selection will cause damage to the screw head.
