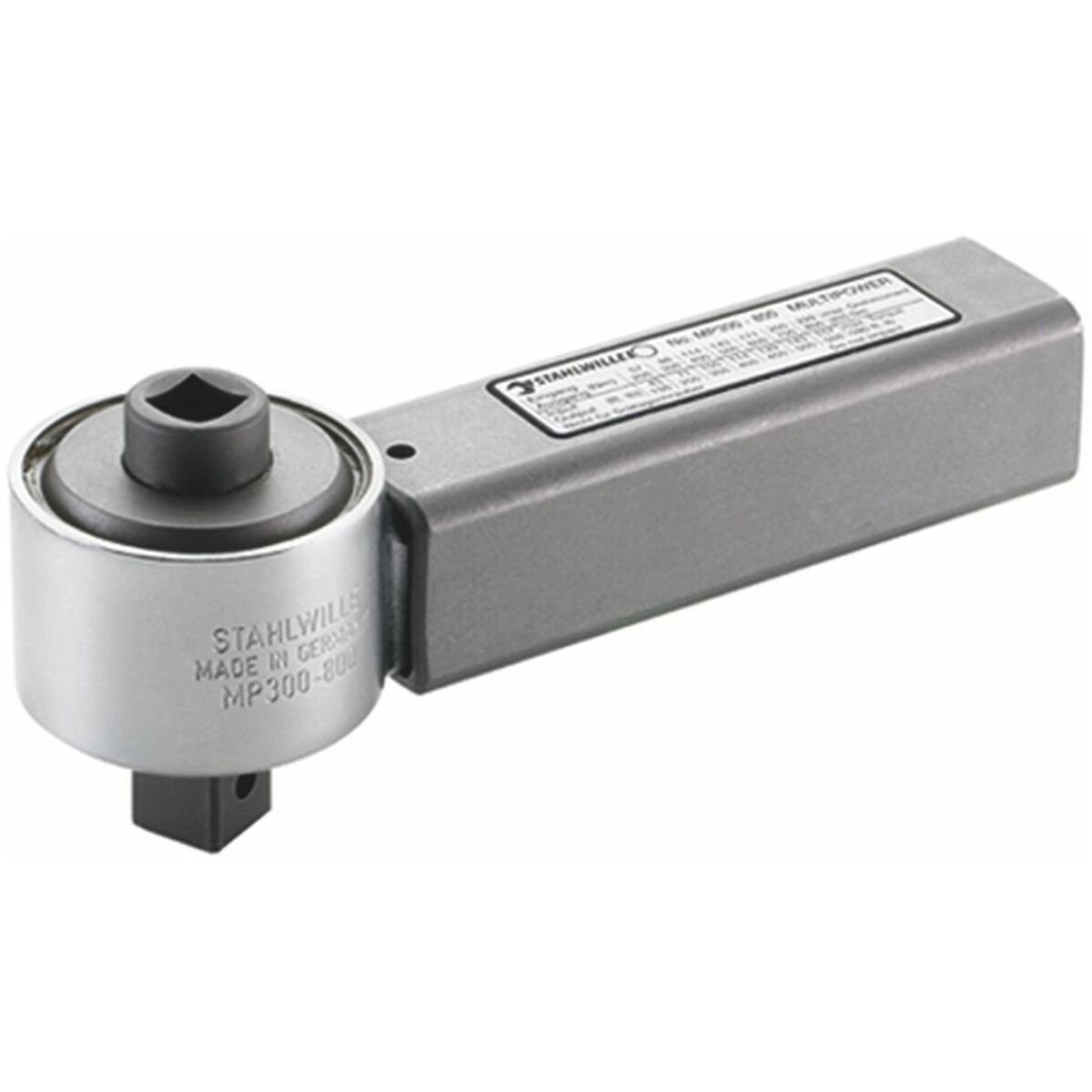

Torque multiplier in a sheet metal case, maximum output capacity: 800N·m
Article no.: 659975 800
Article code:
Product details
Technical Data
| Length L | 215 mm | |
| Height H | 85 mm | |
| Measuring accuracy | 5 % | |
| maximum output capacity | 800 Nm | |
| maximum input capacity | 229 Nm | |
| Gear ratio | 4:1 | |
| Torque multiplication / effective force multiplication | 1:3.5 | |
| recommended torque wrench / tightening range | 250 Nm | |
| Number of supports (reaction plates) | 1 | |
| Drive square | 3/4 in | |
| Square drive | 1/2 in | |
| ⌀ D | 66 mm | |
| Weight | 2 kg | |
| Measurement technology | mechanical | |
| Series | MULTIPOWER MP300 | |
| Non-return valve | no | |
| Overload protection | yes | |
| Type of product | Torque Wrench |
Identification & Classification
| Article number | 659975 800 | |
| EAN / GTIN | 4018754186785 | |
| Manufacturer number | 53030800 | |
| Manufacturer/responsible person | STAHLWILLE Eduard Wille GmbH & Co. KG, Lindenallee 27, 42349 WUPPERTAL, Germany, www.stahlwille.de |
Description
Version:
Mechanical manual torque multiplier for controlled screw tightening. Multiplier and support of high-quality steel. With overload shut-off to protect the transmission. Input drive with internal square socket for drive tools such as a ratchet, T-handle, torque wrench. It is sensible to operate the device with a torque wrench, so that the maximum load and the screw torque values can be checked. Output drive with external square for holding sockets (preferably use impact sockets due to the high torques).
Precise planetary transmissions guarantee exact torque transfer with long-term accuracy of ±5 %.
Precise planetary transmissions guarantee exact torque transfer with long-term accuracy of ±5 %.
Supplied in a sheet metal case.
Advantage:
Torque multipliers allow the transmission of higher torques with a correspondingly shorter lever arm.
