Article no.: 614820 10

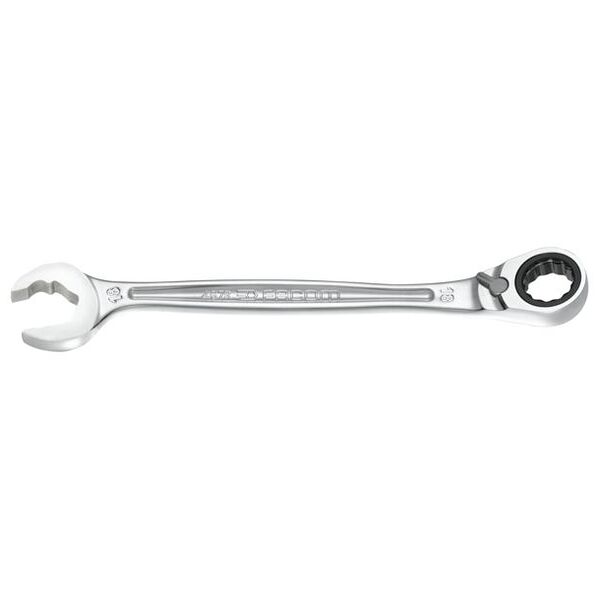

Open ended spanner / ratchet ring spanner reversible 15° offset, Width across flats: 10mm
Article no.: 614905 10
Article code:
Offers
Product details
Technical Data

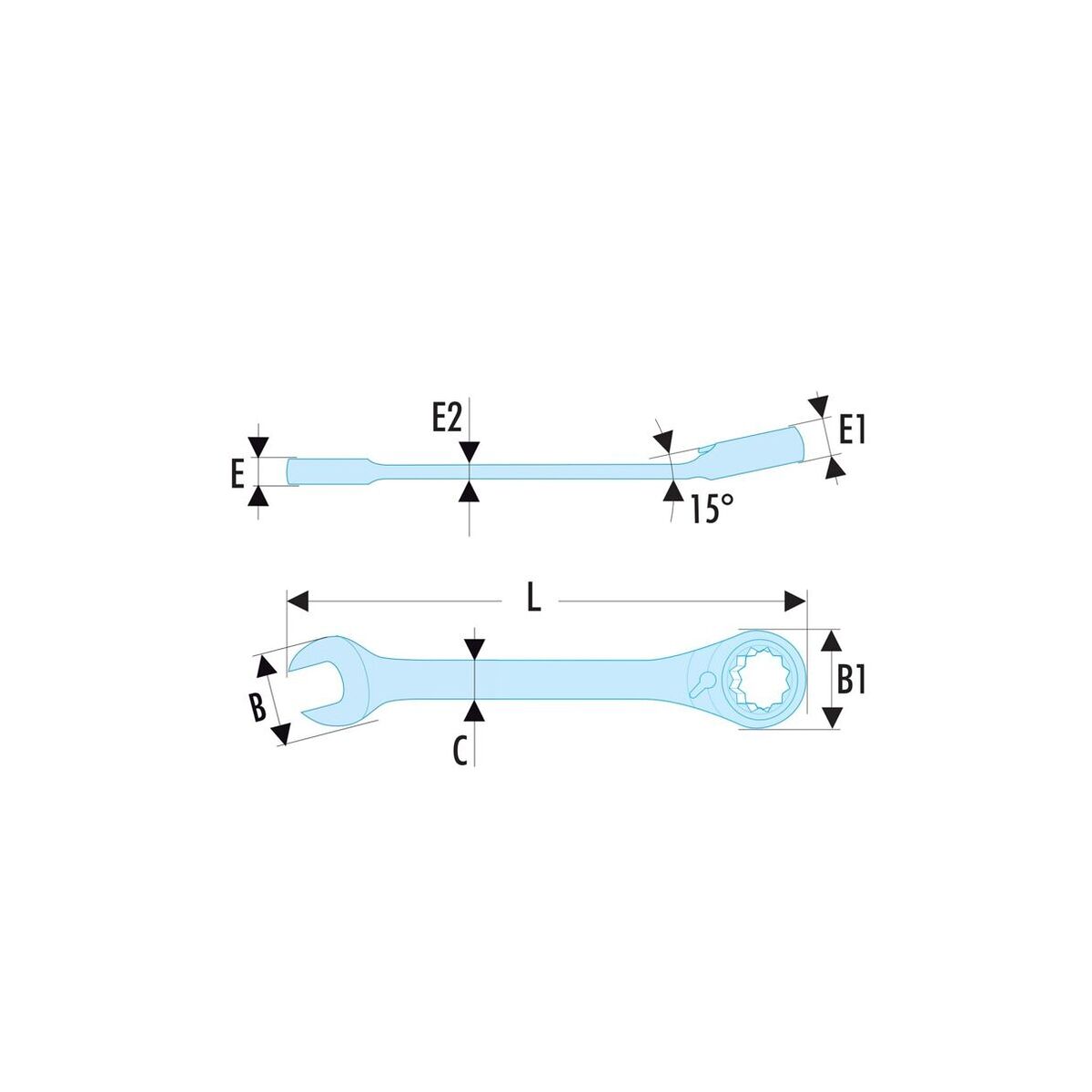

| Width across flats | 10 mm | |
| Spanner length L | 158 mm | |
| Jaw width b | 22.7 mm | |
| Jaw height h1 | 5.1 mm | |
| Ring thickness h2 | 7.3 mm | |
| Ring ⌀ D | 20.2 mm | |
| Working arc | 5 degrees | |
| Manufacturing process | drop forged | |
| Material | Chrome vanadium steel | |
| Surface | chrome-plated | |
| Width across flats | metric | |
| with swivel head | no | |
| Ratchet reversible | yes | |
| Type of product | Spanner |
Identification & Classification
| Article number | 614905 10 | |
| EAN / GTIN | 3662424064982 | |
| Manufacturer number | 467BR.10 | |
| Manufacturer/responsible person | Stanley Black & Decker Deutschland GmbH, Black-&-Decker-Straße 40, 65510 IDSTEIN, Germany, www.facom.de |
Description
Version:

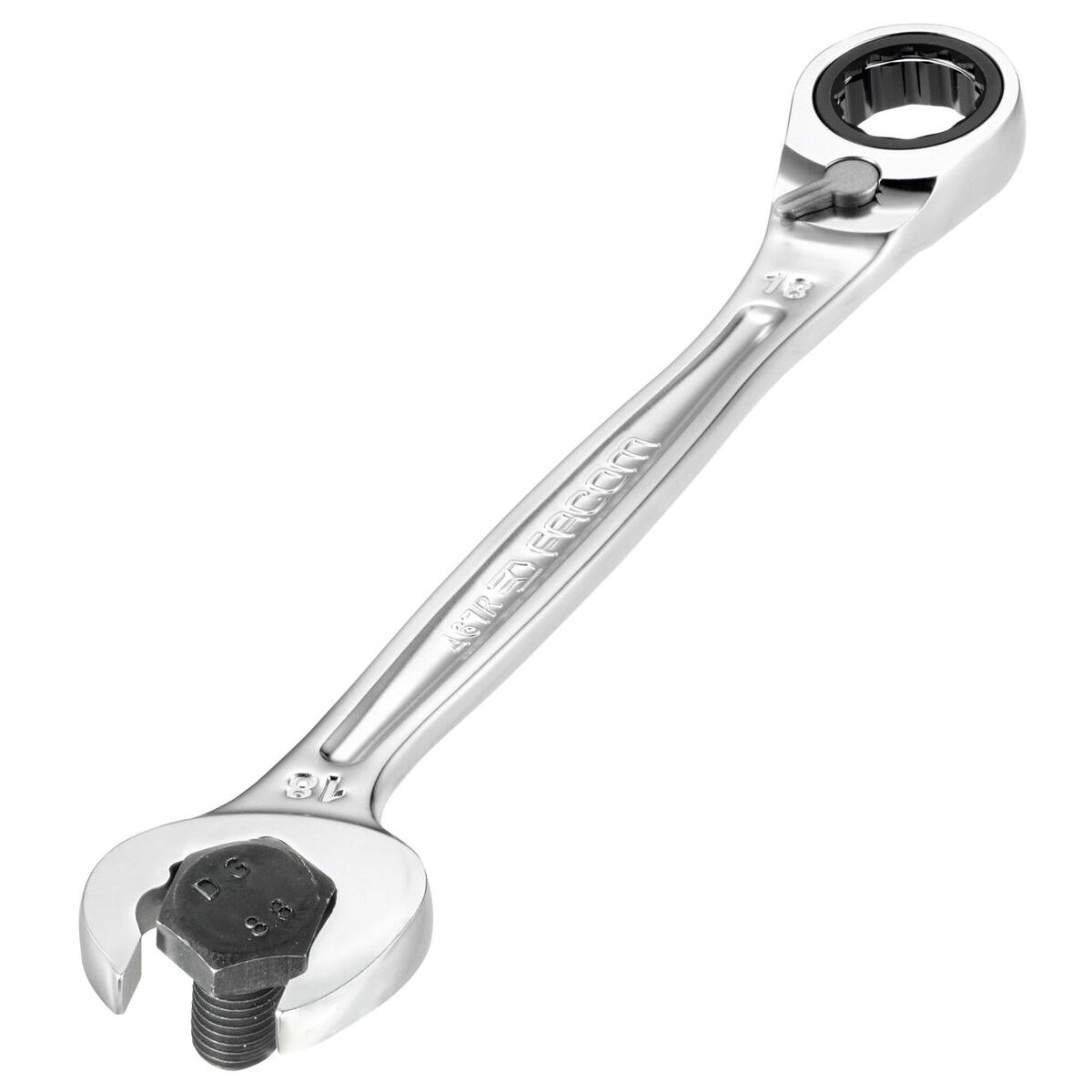

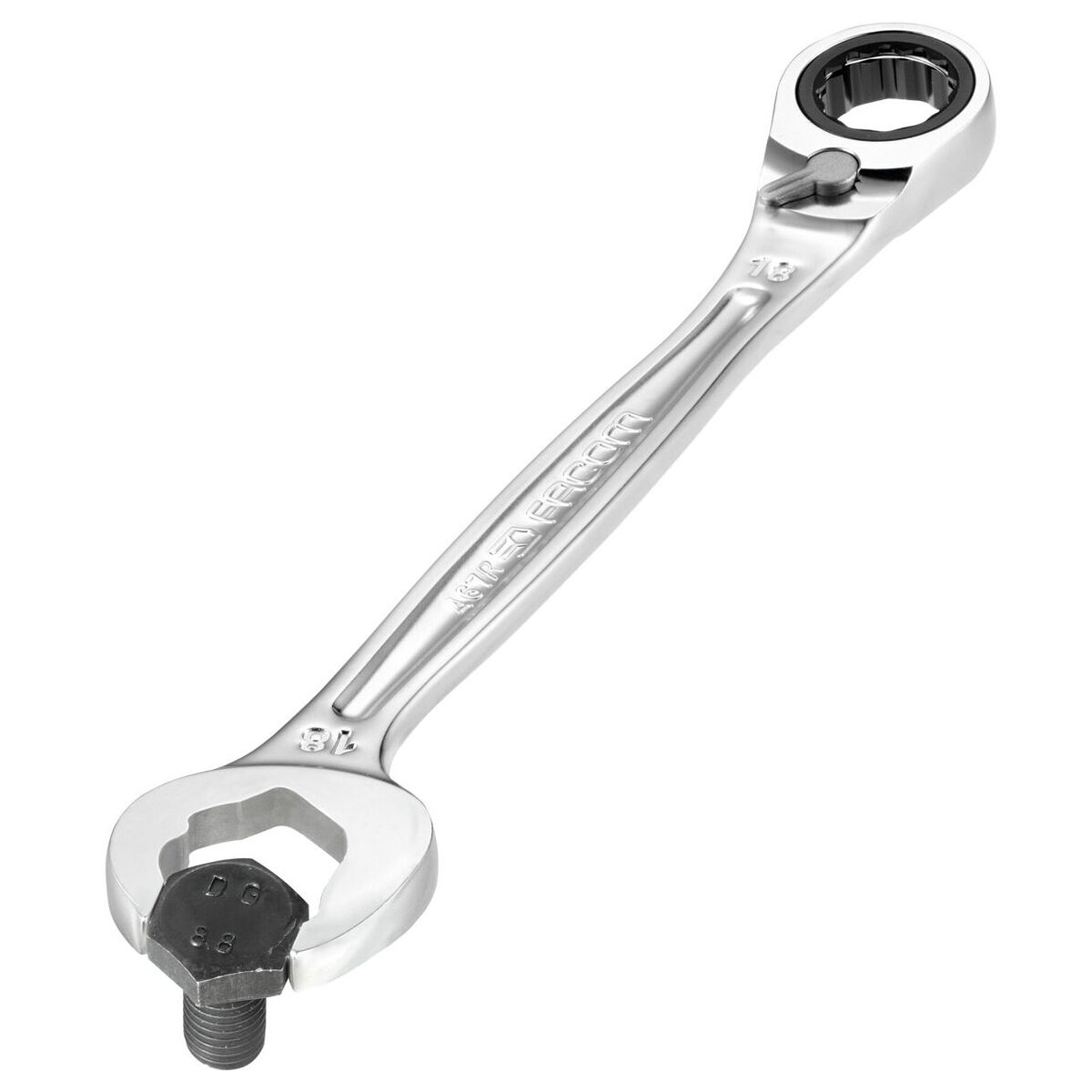

Drop-forged. Ring and fork with ratchet effect. The additional ratchet mechanism at the open jaws permits quick tightening without having to re-apply the wrench. The ring end has an integral spring to prevent it slipping over the fastener being tightened – reversible for left- and right-hand tightening. Extremely small working arc of 5°.
Material:
Chrome vanadium steel, chrome-plated.
