Counting system, type CCS, maximum weighing range: 150kg
Article no.: 479542 150
Article code:
Product details
Technical Data
| maximum weighing range | 0 kg - 150 kg | |
| Scale divisions | 0.1 g | |
| Reading the quantity scales | 5 g | |
| Reproducibility | 0.2 g | |
| Linearity | ± 0.2 g | |
| Manufacturer's designation | CCS | |
| Settling time | 2 s | |
| Minimum unit weight | 1 g | |
| Dimensions of weighing plate | 294×225 mm | |
| Width | 320 mm | |
| Depth | 350 mm | |
| Height | 125 mm | |
| Platform scales width | 500 mm | |
| Platform scales depth | 400 mm | |
| Platform scales height | 137 mm | |
| Power supply | Rechargeable battery-powered | |
| Net weight | 16 kg | |
| Type of product | Counting balance |
Identification & Classification
| Article number | 479542 150 | |
| EAN / GTIN | 4045761104624 | |
| Manufacturer/responsible person | Kern & Sohn GmbH, Ziegelei 1, 72336 BALINGEN, Germany, www.kern-sohn.com |
Description
Version:
- Precision counting scales with automatic reference optimisation (progressive refinement of the average value of the item weight).
- Target item count and target weight programmable to give an acoustic signal.
- Cumulative item counter for totalling identical items by total quantity and overall weight.
- Reference quantities or reference weight.
- Selectable mains and battery operation.
- CAL calibration programme: For calibrating the accuracy (requires an external calibration weight which is available on request).
- Display switching between items and weight.

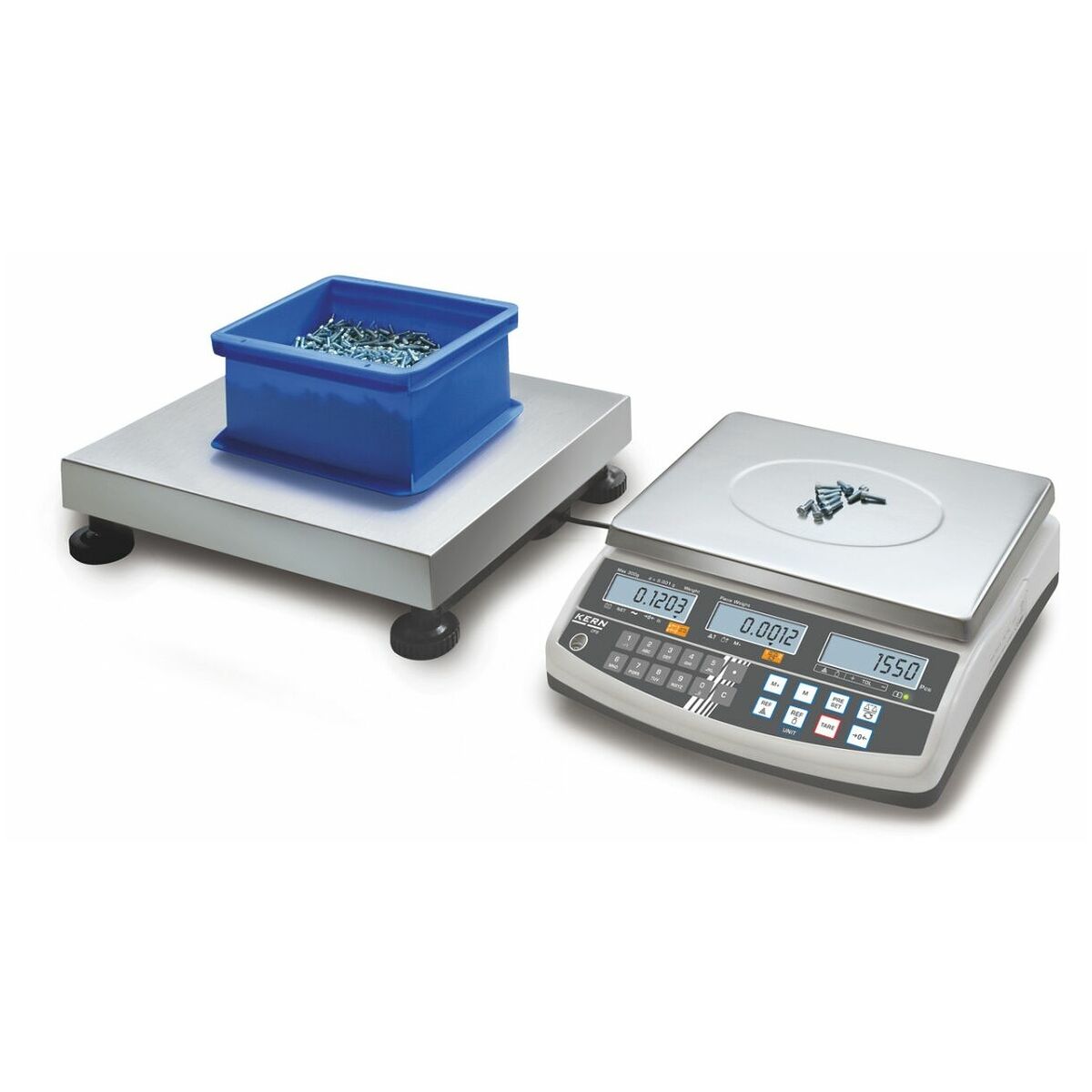

Counting system consisting of reference scales and quantity scales (platform scales) with a 2.0 m connection cable.
Supplied with:
Mains adapter 230 V/ 50 Hz and protective hood for reference scales.
Optional extras:
Internal battery, signal lamp available on request.
Note:
For calibration please select both the items offered, since both the reference scales and also the quantity scales (platform scales) must be calibrated.
