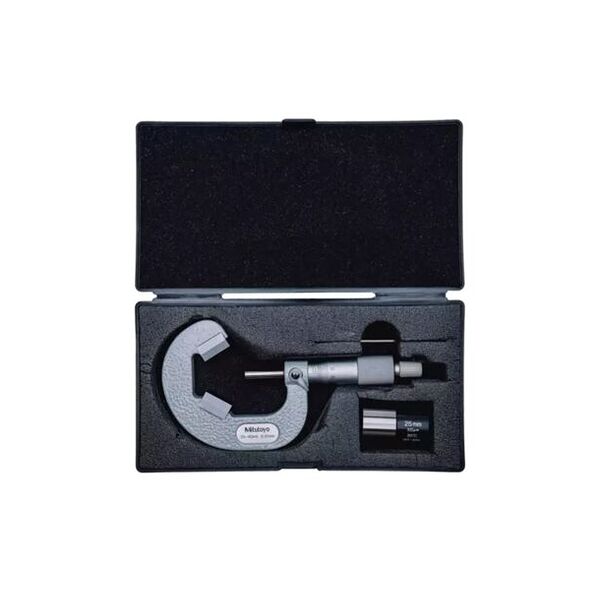

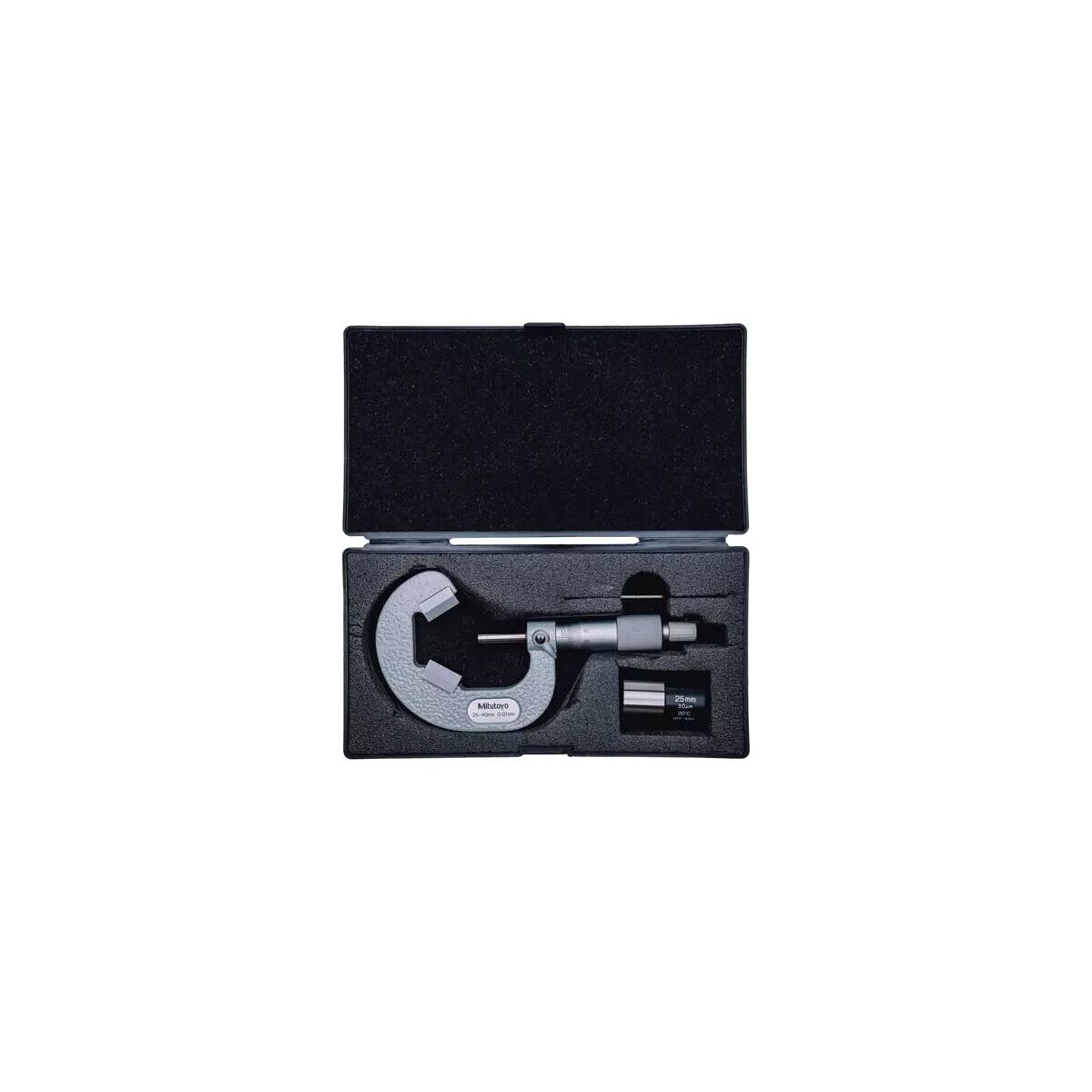

External micrometer with Vee-anvil, Measuring range: 25-40mm
Article no.: 422300 25-40
Article code:
- Standard: ISO 3611
- Micrometer barrel graduations: 1/50
- Packaging: sturdy box
Product details
Technical Data
| Standard | ISO 3611 | |
| Measuring range | 25 mm - 40 mm | |
| Scale divisions | 0.01 mm | |
| Measurement deviation E MPE | ±5 µm | |
| Micrometer barrel graduations | 1/50 mm | |
| Spindle ⌀ | 6.35 mm | |
| Barrel ⌀ | 18 mm | |
| Vee angle | 60 (triangular) degrees | |
| Measurement technology | analogue | |
| Packaging | sturdy box | |
| Type of product | External micrometer |
Identification & Classification
| Article number | 422300 25-40 | |
| EAN / GTIN | 4946368009988 | |
| Manufacturer number | 114-103 | |
| Manufacturer/responsible person | Mitutoyo Deutschland GmbH, Borsigstraße 8-10, 41469 NEUSS, Germany, www.mitutoyo.de |
Description
Version:
With Vee anvil for measuring three or five-flute cutters. Enamelled frame. Spindle pitch correction for Vee angle.
Triangular with a Vee angle of 60°.
Application:
For measuring 3 or 5 flute cutters (end mills, reamers).
Supplied with:
Setting standard.
