Hook toggle clamp horizontal, Type: 4
Article no.: 376800 4
Article code:
Product details

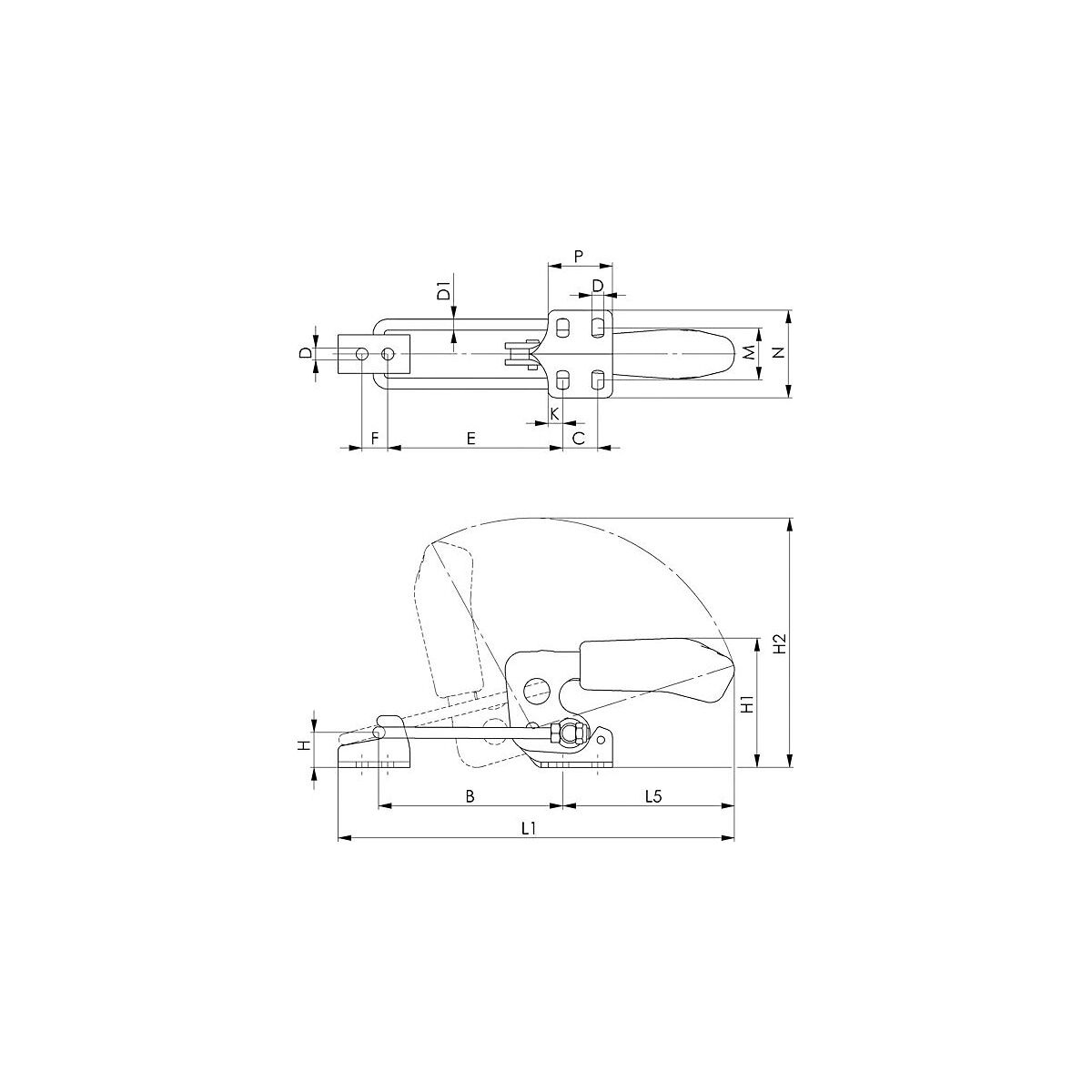

Technical Data
| Type | 6848HJ | |
| Hole spacing e | 32 mm | |
| Hole spacing f | 35 mm - 46 mm | |
| Bore ⌀ d | 8.5 mm | |
| Adjustment travel of clamping hook c | 59 mm - 123 mm | |
| Clamping height h | 26 mm | |
| Clamping force P (traction) | 7,000 N | |
| Overall height H | 94.5 mm | |
| Overall length L | 209 mm - 273 mm | |
| Type of product | Hook toggle clamp |
Identification & Classification
| Article number | 376800 4 | |
| EAN / GTIN | 4020772008628 | |
| Manufacturer number | 557407 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
Complete with catch.
- Quick-action clamp with toggle action.
- Self-locking mechanism prevents inadvertent opening.
- Rivet of stainless steel.
- Handle made of oil-resistant plastic.
- Galvanised clamps.
- Clamping hook adjustable using thread.
- Bearing bushes case-hardened.
- Bearings greased.
- Hardened hook.
Application:
For closing containers.
Note:
- More compact design due to new handle.
- Ergonomic 2-component handle, very comfortable to use due to enlarged hand rest.
