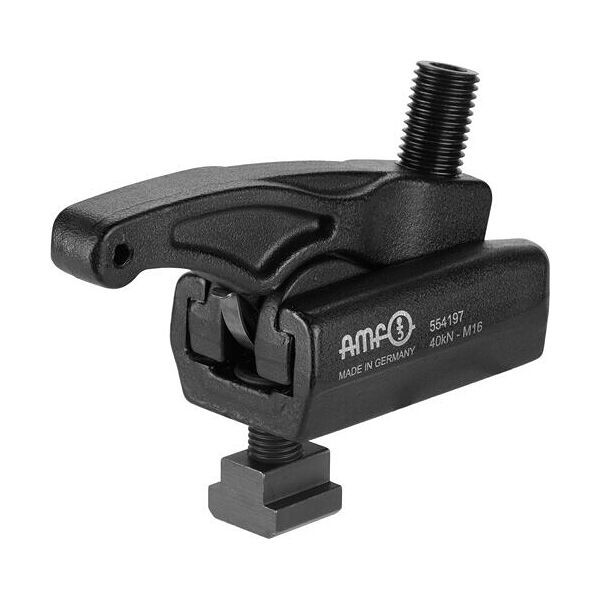

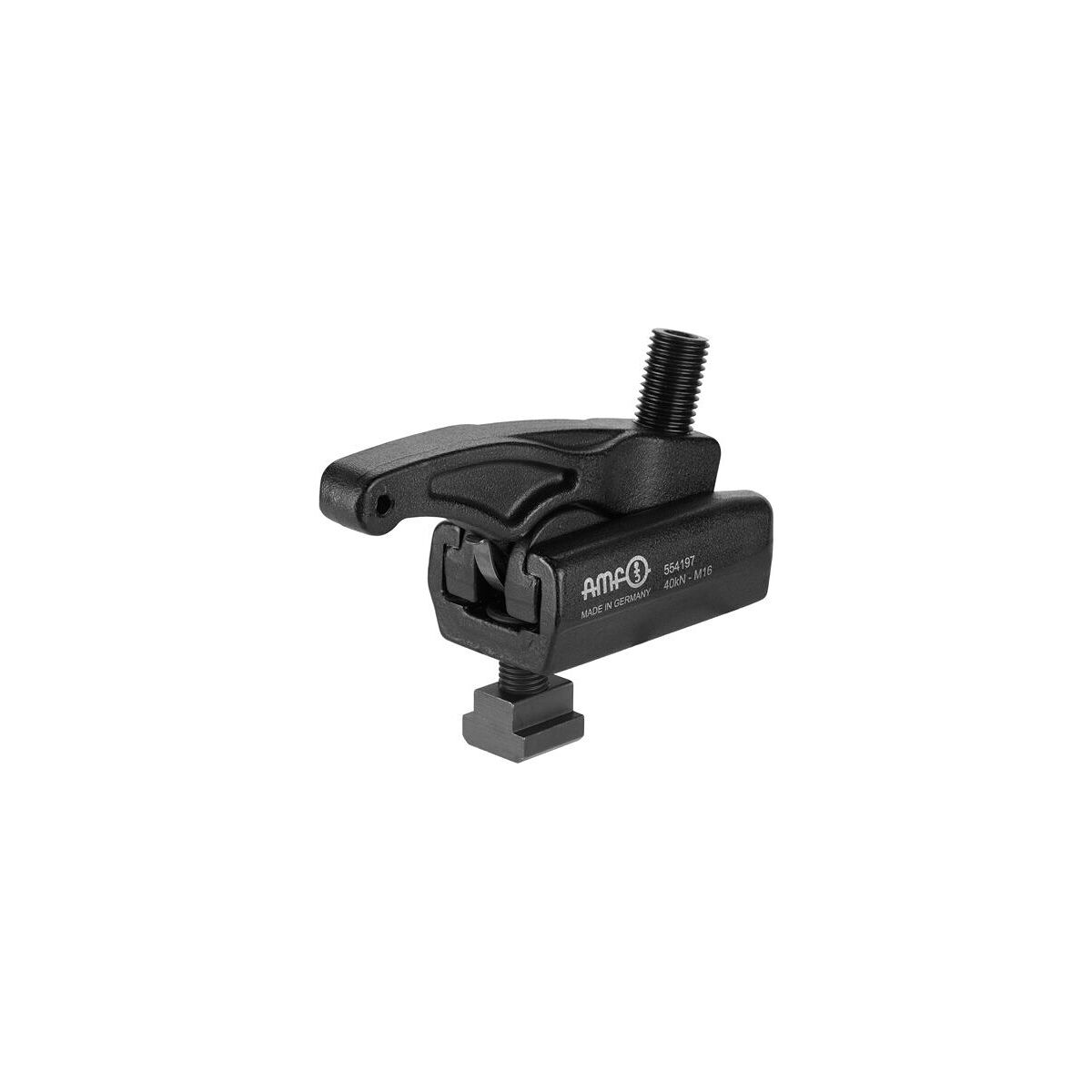

Sliding clamps short, Type: 5
Article no.: 370092 5
Article code:
Product details
Technical Data
| Type | 764Md | |
| T-slot width | 14 mm | |
| Fastening screw G | M12 | |
| Clamping height h-H | 6 mm - 50 mm | |
| Clamping force | 32 kN | |
| A | 36 mm | |
| A1 | 78 mm | |
| B | 54 mm | |
| B1 | 18 mm | |
| L | 95 mm | |
| Adjustment travel V | 12 mm - 82 mm | |
| Width across flats AF | 8 mm | |
| Fastening screw G1 | M16 | |
| Type of product | Sliding clamp |
Identification & Classification
| Article number | 370092 5 | |
| EAN / GTIN | 4020772004675 | |
| Manufacturer number | 556189 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
- Clamping force 30 or 49 kN with tightening torque of approx. 100 Nm.
- Forged clamping element of alloy heat-treatable steel, black galvanised.
- Steplessly adjustable height and length.
- Low installed height.
Supplied with:
- Base element and carrier.
- T-nut DIN 508 with T-bolt strength class 12.9.
Optional extras:
Pressure pieces No. 370095.
