Centring vice basic device Xtric, Type: 125XSA
Article no.: 363000 125XSA
Article code:
- Version: Zero-point clamping system
Product details
Technical Data

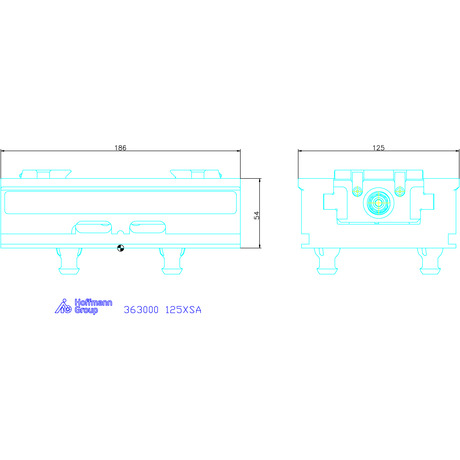

| Version | Zero-point clamping system | |
| Weight | 10.6 kg | |
| L | 186 mm | |
| B | 120 mm | |
| Height H | 54 mm | |
| Reference dimension | 80 mm | |
| maximum torque | 132 Nm | |
| Width across flats | 13 mm; 5 mm | |
| maximum clamping force | 32 kN | |
| Colour code | Xtric 125 | |
| Type of product | Machine vice |
Identification & Classification
| Article number | 363000 125XSA | |
| EAN / GTIN | 4067263098799 | |
| Manufacturer number | 363000 125XSA | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
- Very good accessibility and perfectly symmetrical.
- Fully hardened and precision milled on the underside.
- Clamps raw materials and finished parts with the least possible backstroke of the jaws / component.
- Central alignment delivers perfectly centred clamping.
- The clamping range can be changed by reversing the jaws.
Application:
Perfect for 5-face machining. Centred clamping.
Suitable for:
Supplied with:
Base body, spindle, spindle nuts and four clamping studs suitable for automation extension base No. 360164 XP80Z.
Optional extras:
Note:
Suitable for the GARANT TurnTable automation system in combination with / for automation extension base No. 360164 XP80Z. Suitable top jaws No. 363010 – 363045 are not included in the scope of supply. Clamping situation S2 arises by reversing the jaws.
Warning:
Intended use
Reasonably foreseeable misuse
- Clamping device for mounting on a machine intended to perform milling operations.
- For clamping workpieces in the blank or partially machined state.
- Adaptation to workpiece geometry is possible through various designs and attachment jaws.
- Use only when correctly assembled and with safety devices and guards on the machine fully operational.
Reasonably foreseeable misuse
- Do not use the centring vice for turning work.
- Do not clamp the centring vice at the clamping edge.
- Do not mount components not in accordance with the specification.
- Do not make any unauthorised modifications.
- Do not use in explosion hazard areas.
