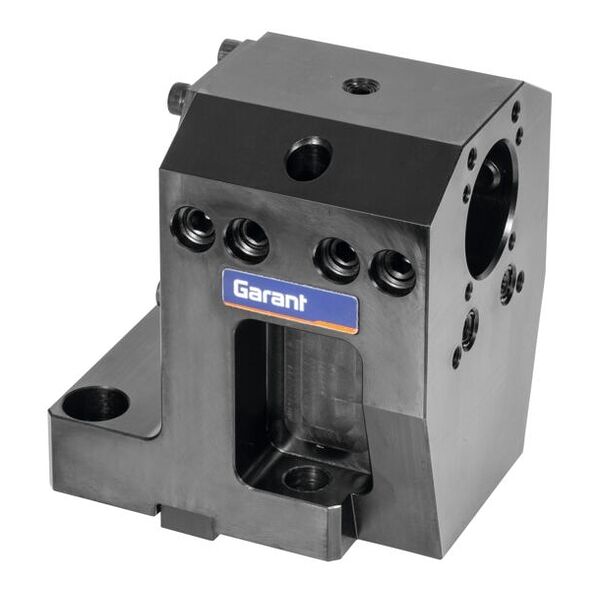

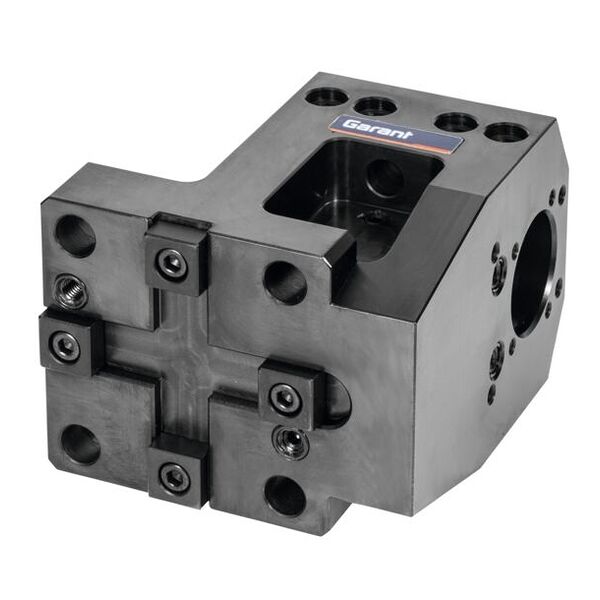

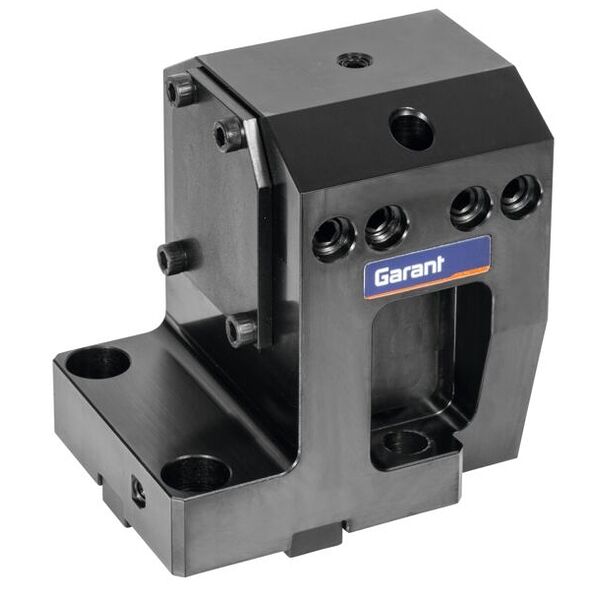

BMT boring bar holder, BMT: 65-100
Article no.: 319888 65-100
Article code:
Product details

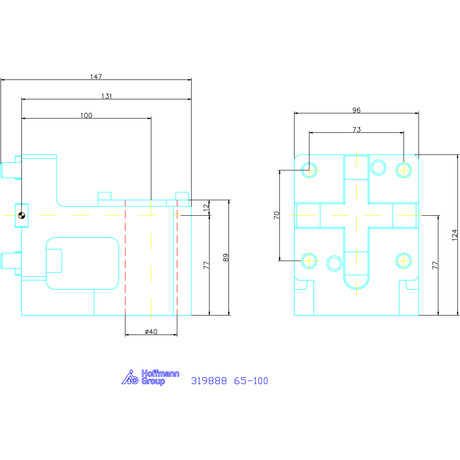

Technical Data
| Z | 77 mm | |
| x | 100 mm | |
| l1 | 131 mm | |
| da | 40 mm | |
| L1 | 73 mm | |
| L2 | 70 mm | |
| L3 | 7 mm | |
| h1 | 96 mm | |
| Type of product | Steel toolholder |
Identification & Classification
| Article number | 319888 65-100 | |
| EAN / GTIN | 4069515001489 | |
| Manufacturer number | 319888 65-100 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
High-precision arbors adapted to the specific machine, for flexible use on main and counter-spindle machines. Contact face and functional face ground. Perfectly matched for the respective lathe.
Suitable for efficient cooling systems such as GARANT eco, but also for other systems. Optimised outer contour.
For internal and external cooling.
Suitable for efficient cooling systems such as GARANT eco, but also for other systems. Optimised outer contour.
For internal and external cooling.
Advantage:
- Design optimised for weight and geometry.
- Process reliability thanks to high-quality materials, long working life.
- Burnished for better corrosion protection.
- With secured ball injection nozzles up to 80 bar.
Application:
Internal and external machining in CNC lathes with BMT tool turrets.
For internal machining with boring bar holder or indexable drills.
For internal machining with boring bar holder or indexable drills.
Suitable for:
CNC lathes with BMT tool turret.
- DN SOLUTIONS (früher DOOSAN): PUMA 3100; PUMA 2100 II; PUMA 2600 II; PUMA GT3100; SMX 2600; SMX 3100
- EMCO: Hyperturn 100 Powermill; Maxxturn 110
- GOODWAY: GLS-2800; GLS-3300; GMS-2000; GMT-2000; GS-2000; GS-2600; GS-2800; GS-3300; GS-3600
- HURCO: TMX8; TMX10
- HYUNDAI WIA: HD2600; HD3100; L300; L2000: L2600; L3000; LV450; SKT250; SKT300
- ROMI: GL350
- SPINNER: TC800
- TAKISAWA TAIWAN: LA-250; LX-2500; LX-3000; NEX-110; NX-2500
- TONGTAI: TD-2000; TD-2500; TNL-120
- VICTOR: Vturn-A26; Vturn-A260; Vturn-S26
- WELE: HL-200
- YCM: BTX-250SY
Note:
Other BMT holders with different sizes and dimensions are available on request.
Please note that you must check the compatibility of the holder with your machine before purchasing. We cannot guarantee that it will fit correctly.
Please note that you must check the compatibility of the holder with your machine before purchasing. We cannot guarantee that it will fit correctly.
