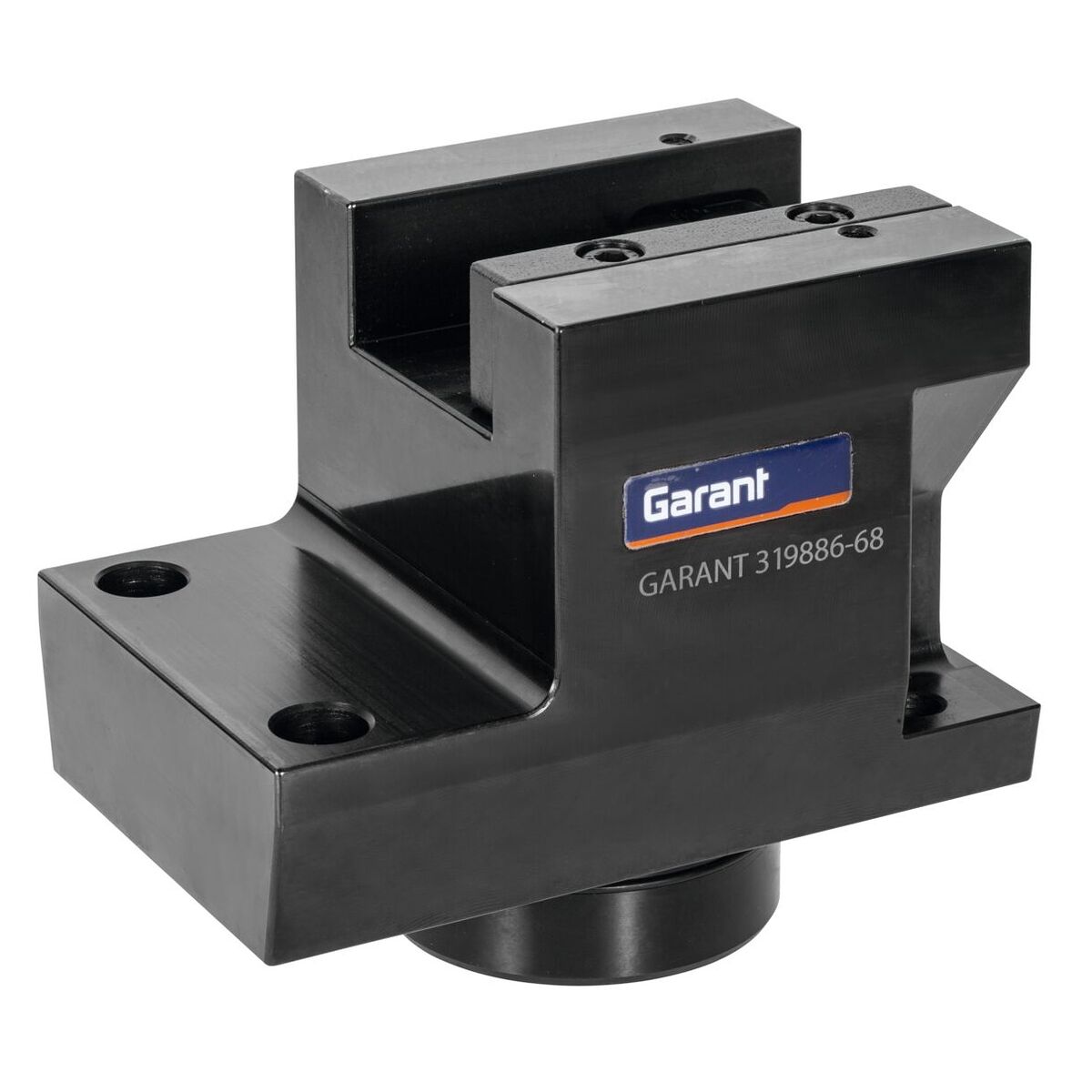

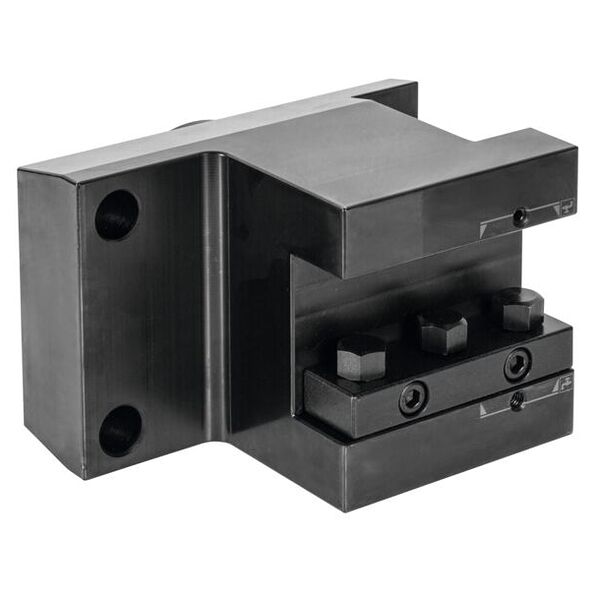

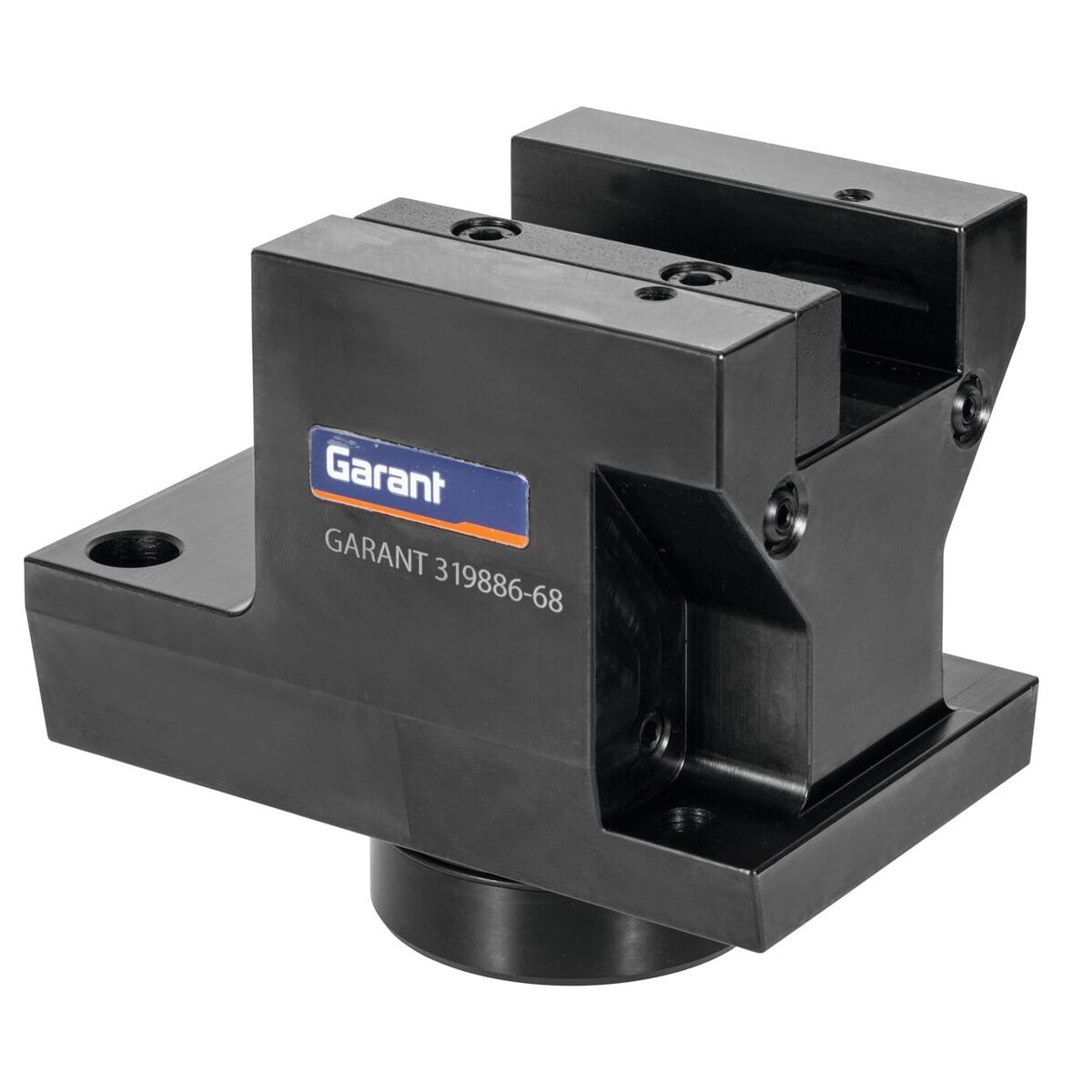

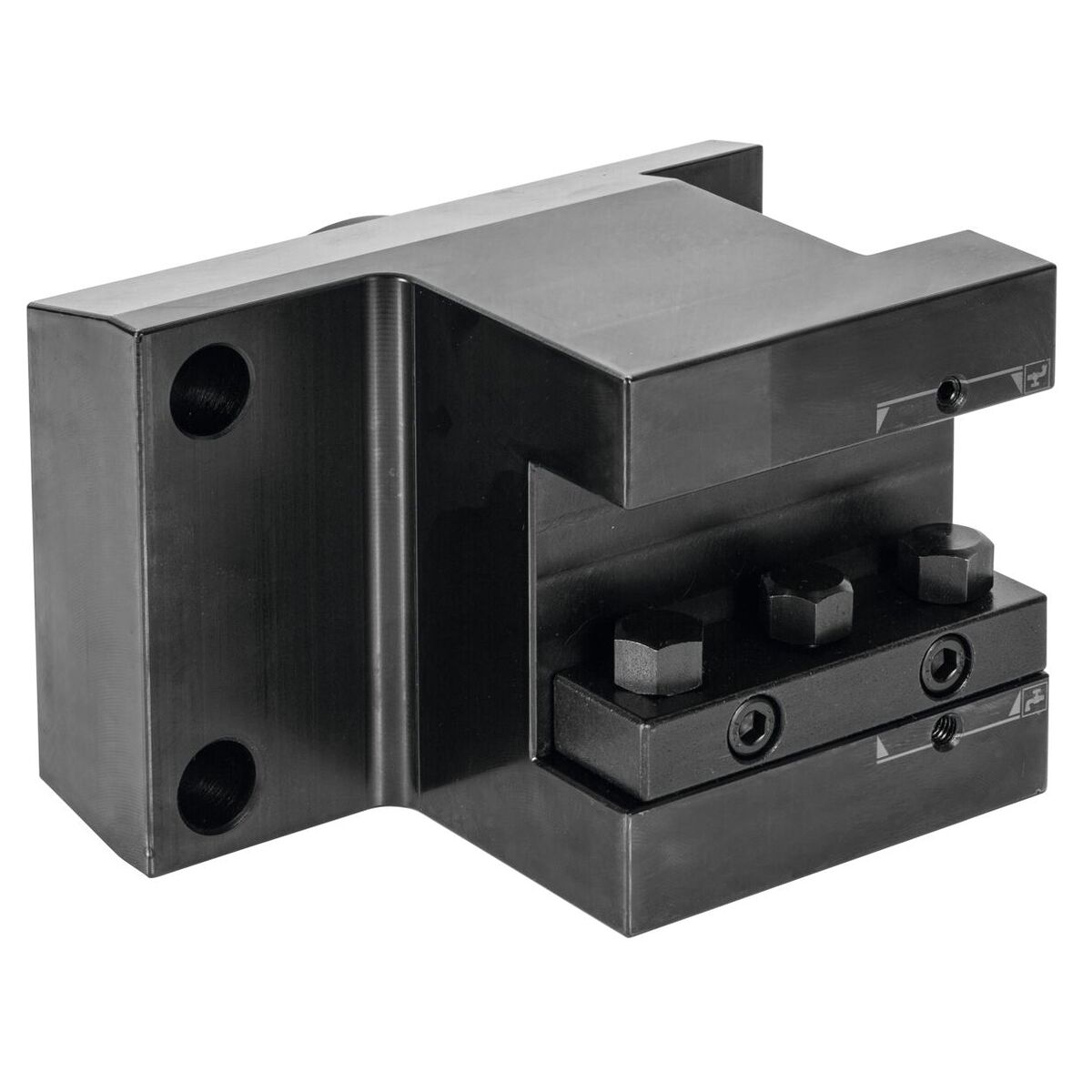

Eco BMT transverse toolholder, BMT: 68
Article no.: 319886 68
Article code:
Product details
Technical Data
| x | 98 mm | |
| L1 | 100 mm | |
| L2 | 68 mm | |
| b2 | 64 mm | |
| h1 | 25 mm | |
| h2 | 94 mm | |
| Suitable machines | Mazak: QT Smart, QT Compakt | |
| Type of product | Steel toolholder |
Identification & Classification
| Article number | 319886 68 | |
| EAN / GTIN | 4045197877420 | |
| Manufacturer number | 319886 68 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
High-precision arbors adapted to the specific machine, for flexible use on main and counter-spindle machines. Contact face and functional face ground. Perfectly matched for the respective lathe.
Suitable for efficient cooling systems such as GARANT eco, but also for other systems. Optimised outer contour. Scale to optimally adjust the machining tool. Spring-mounted pressure pad for uniform clamping of the turning tools.
For internal and external cooling.
Suitable for conventional toolholders.
Suitable for efficient cooling systems such as GARANT eco, but also for other systems. Optimised outer contour. Scale to optimally adjust the machining tool. Spring-mounted pressure pad for uniform clamping of the turning tools.
For internal and external cooling.
Suitable for conventional toolholders.
Advantage:
- Design optimised for weight and geometry.
- Process reliability thanks to high-quality materials, long working life.
- Burnished for better corrosion protection.
- With secured ball injection nozzles up to 80 bar.
Application:
Primarily for facing and internal machining.
Internal and external machining in CNC lathes with BMT tool turrets.
Internal and external machining in CNC lathes with BMT tool turrets.
Suitable for:
CNC lathes with BMT tool turret.
MAZAK: QT-EZ 8; QT-EZ 10; QT 200; QT 250; QT 100; QTE 100; QTE 200; QTE 300; QTU 200; QTU 250; QT-EZ 12; QTS 100; QTS 200; QTS 250; QT-COMPACT 100; QT-COMPACT 200; QT-COMPACT 300
Note:
Other BMT holders with different sizes and dimensions are available on request.
Please note that you must check the compatibility of the holder with your machine before purchasing. We cannot guarantee that it will fit correctly.
Please note that you must check the compatibility of the holder with your machine before purchasing. We cannot guarantee that it will fit correctly.
