Article no.: 208029 16
Solid carbide dovetail milling cutter Form D 45°, TiAlN, ⌀ js16 DC: 16mm
Article no.: 208036 16
Article code:
- Tool material: Solid carbide
- Standard: DIN 1833
- Tolerance nominal ⌀: js16
- Direction of infeed: horizontal
- Shank: DIN 6535 HB to h6
Product details
Technical Data

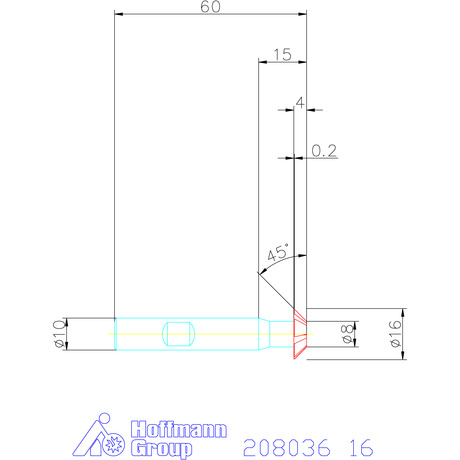

| Cutting edge ⌀ DC | 16 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | DIN 1833 | |
| Tolerance nominal ⌀ | js16 | |
| Direction of infeed | horizontal | |
| Shank | DIN 6535 HB to h6 | |
| Through-coolant | no | |
| No. of teeth Z | 6 | |
| Recess ⌀ D1 | 8 mm | |
| Overall length L | 60 mm | |
| Shank ⌀ Ds | 10 mm | |
| Flute length Lc | 4 mm | |
| Feed fz in steel < 900 N/mm2 | 0.042 mm | |
| Shank tolerance | h6 | |
| Corner chamfer angle | 45 degrees | |
| Colour ring | green | |
| Shape | D | |
| Type of product | Dovetail milling cutter |
Identification & Classification
| Article number | 208036 16 | |
| EAN / GTIN | 4045197269881 | |
| Manufacturer number | 208036 16 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Application Table
P
105
P
90
P
90
P
80
P
60
Description
Version:
Angular tolerance ±8′.
Note:
For milling dovetails in tool making and machine building.
Feed at 50% fz until full engagement.
Feed at 50% fz until full engagement.
