simturn E3 indexable insert, grooving, snap ring grooves, chip forming groove, nominal groove width=1.1 mm, w=1.2 mm, tmax=5 mm
Article no.: TE3.0110.00 GT L X800
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | TE3.0110.00 GT L X800 | |
| EAN / GTIN | 4069769229615 | |
| Manufacturer number | AT0NX800 | |
| Manufacturer/responsible person | SIMTEK Präzisionswerkzeuge GmbH, Christophstraße 18, 72116 MÖSSINGEN, Germany, www.simtek.com |
Description
Description:

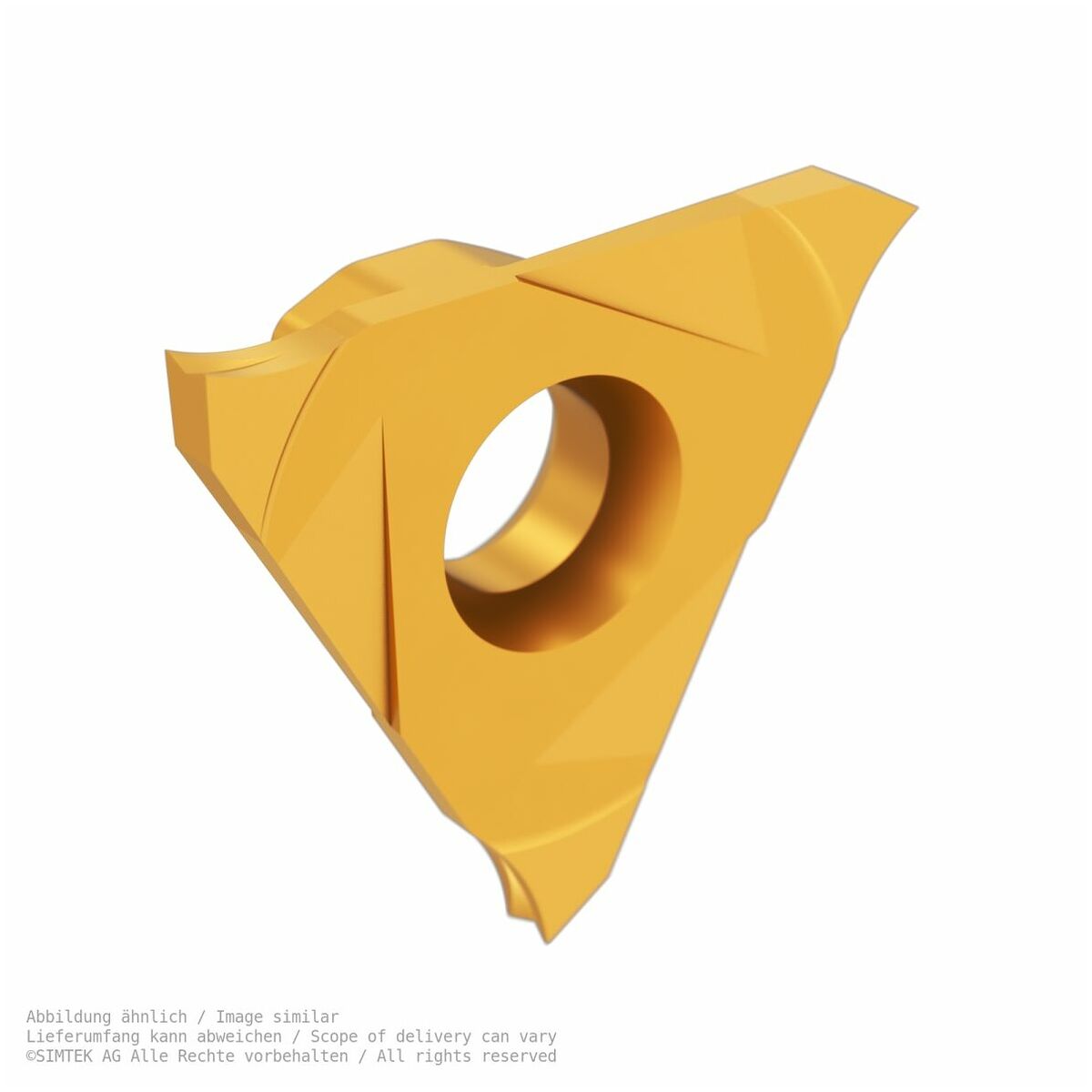

SIMTEK simturn E3 indexable insert
Parting, retaining ring grooves, chip form grooves
Nominal width = 1.1 mm, w = 1.2 mm, tmax = 5 mm

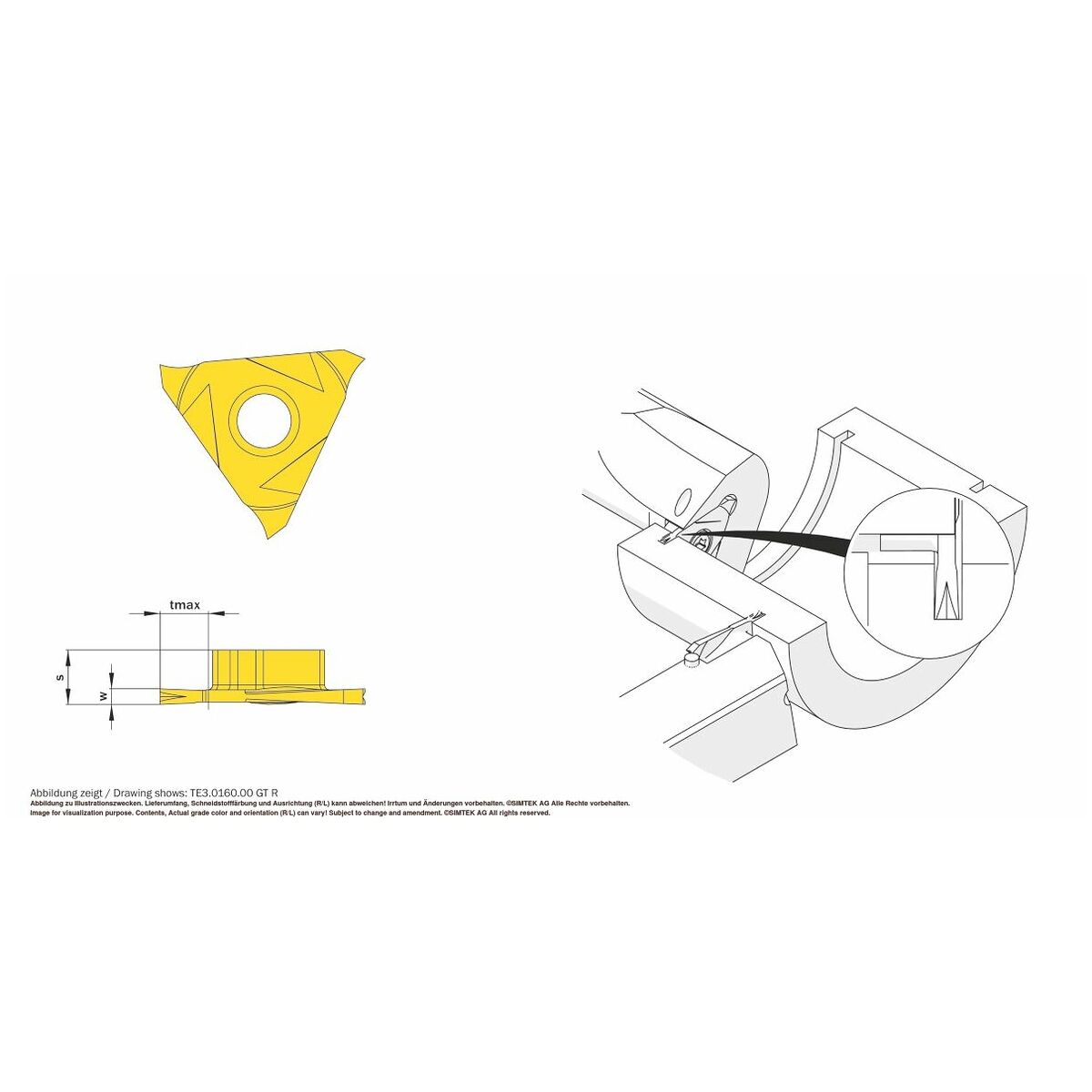

Technical parameters:
- tmax = 5.0 mm
- Nut width = 1.10 mm
- w = 1.20 mm (tolerance +0.03)
- S = 5.6 mm
- With chip flute = Yes
