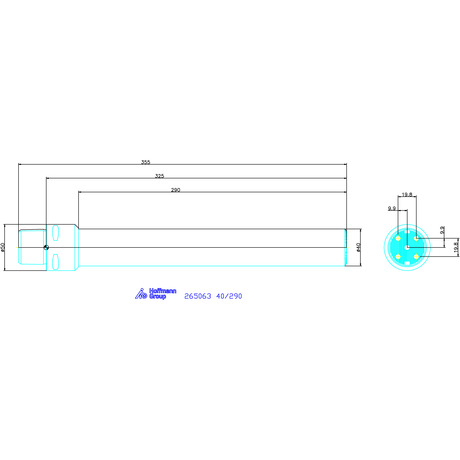

GARANT Master Mute boring bar shank PSC vibration damping, PSC 50, Shank ⌀ / usable length L1: 40/290mm
Article no.: 265063 40/290
Article code:
- Vibration: damped
- Arbor standard: ISO 26623-1; ISO 12164-3
- Through-coolant: yes
Product details
Technical Data
| Shank ⌀ | 40 mm | |
| Overhang dimension A | 325 mm | |
| Assembly bolt set | 269026 3 | |
| Adapter | PSC 50 | |
| Vibration | damped | |
| Reach L1 | 290 mm | |
| Number of coolant channels | 3 | |
| Arbor standard | ISO 26623-1; ISO 12164-3 | |
| Through-coolant | yes | |
| Series | Master Mute | |
| Type of product | Boring bar shanks |
Identification & Classification
| Article number | 265063 40/290 | |
| EAN / GTIN | 4069515026734 | |
| Manufacturer number | 265063 40/290 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
With modular interface, suitable for systems from other manufacturers (e.g. Iscar).
Shank version ⌀ 50 mm and ⌀ 60 mm in right-hand version. Left-hand version available on request.
Shank version ⌀ 50 mm and ⌀ 60 mm in right-hand version. Left-hand version available on request.
Suitable for:
Note:
The usable length is extended by the length L of the respective interchangeable cutting head. Use only with internal cooling (temperature resistance of up to max. 100°C).
